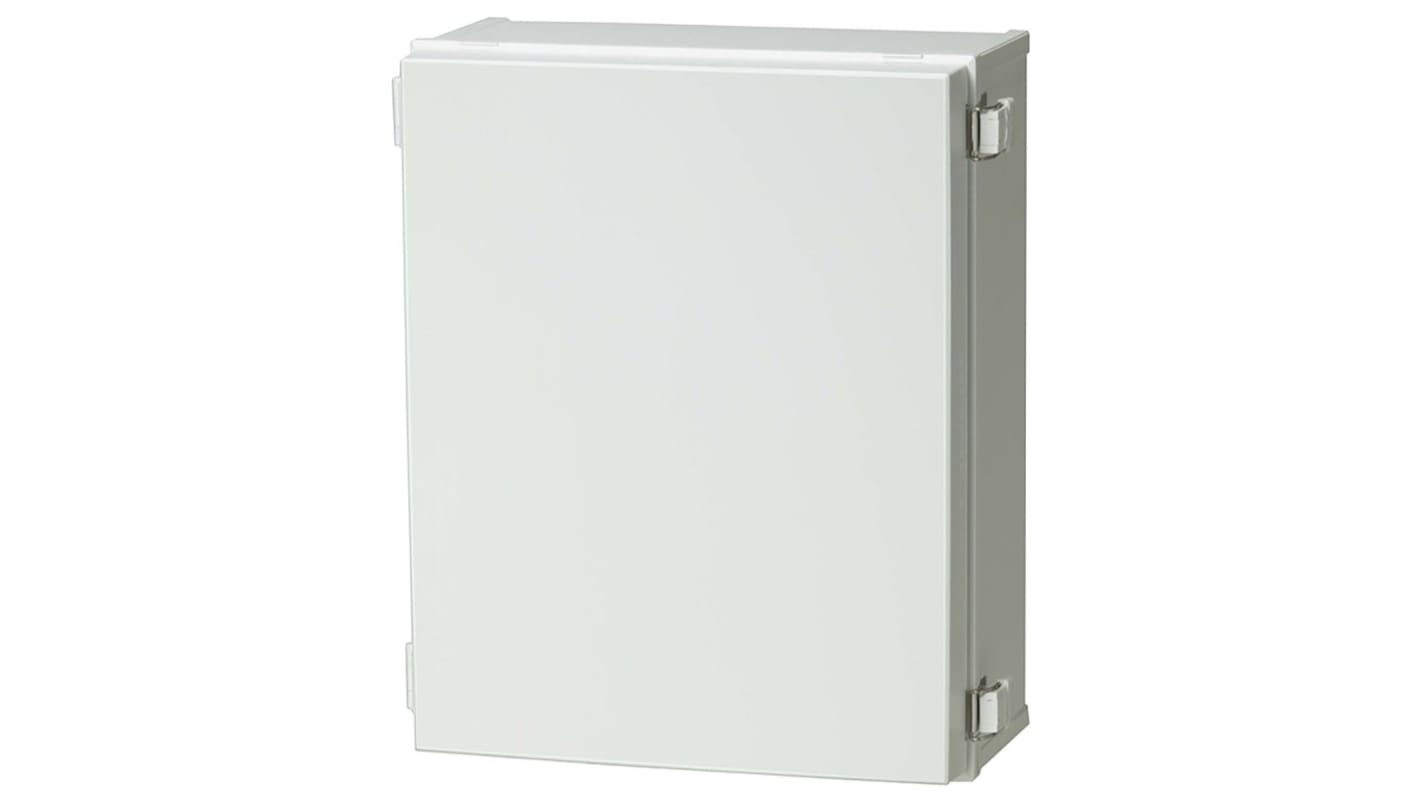

Fibox CAB PC Series Polycarbonate Wall Box, IP65, 500 mm x 400 mm x 200mm

RS-artikelnummer:: 289-6055
Tillv. art.nr:: CAB PC 504020 G CABINET
Tillverkare / varumärke:: Fibox

Fibox CAB PC Series Polycarbonate Wall Box, IP65, 500 mm x 400 mm x 200mm

569 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

2 736,24 kr

(exkl. moms)

3 420,30 kr

(inkl. moms)

Enheter	Per unit
1 +	2 736,24 kr

RS-artikelnummer:: 289-6055
Tillv. art.nr:: CAB PC 504020 G CABINET
Tillverkare / varumärke:: Fibox

Datablad

Fibox CAB PC 504020G Data Sheet

Lagstiftning och ursprungsland

COO (Country of Origin):: FI

Produktdetaljer

Fibox CAB PC Wall Mount Enclosures

High impact resistant, glass filled polycarbonate enclosures offering a viable and cost effective alternative to steel wall mounting enclosures. The material used is Halogen free and is flame tested to UL94-V2 (self-extinguishing).

Features and Benefits

• Polycarbonate light grey RAL 7035
• Polyurethane gasket
• IP65 and IK08 protection
• Electrically insulated
• Halogen free
• UV resistant
• Operating temperature range: -40°C to +80°C

Accessories (ordered separately)

• Swing doors/front plates, aluminium, 1.5 mm thick
• Mounting plates, galvanised steel, 1.5 mm thick
• Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions
• Wall Brackets, 4 pieces, includes screws

Standards

EN 60529, EN 62262.

Approvals

UL; IEC 529; EEI

Specifikationer

Attribute	Value
External Height	500 mm
External Width	400 mm
External Depth	200mm
Body Material	Polycarbonate
Transparent Door	No
IP Rating	IP65
Chassis Plate	No
Door Lock Type	Latch
Gland Plate	No
Colour	Grey
Series	CAB PC
External Mounting Type	Bracket
Internal Mounting Type	Panel
IK Rating	IK08
Fixing Kit	Yes
