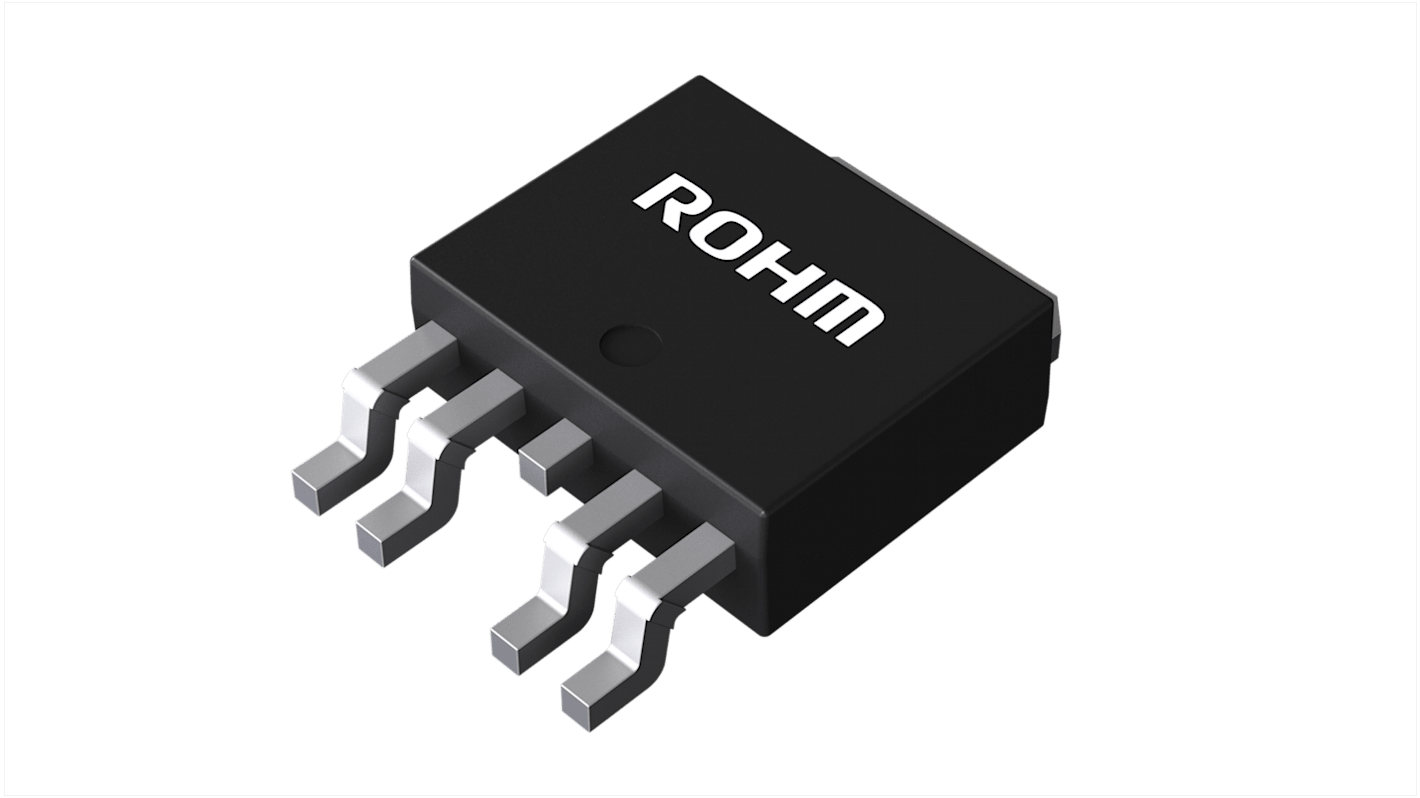

ROHM BD00EA5WFP-E2, 1 Low Dropout Voltage, Voltage Regulator 500mA, 1.2 → 16 V
- RS-artikelnummer:
- 240-3964
- Tillv. art.nr:
- BD00EA5WFP-E2
- Tillverkare / varumärke:
- ROHM
2000 I lager för avsändande samma dag
Pris (ex. moms) Var (i en rulle med 2000)
8,548 kr
(exkl. moms)
10,685 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 2000 + | 8,548 kr | 17 096,00 kr |
- RS-artikelnummer:
- 240-3964
- Tillv. art.nr:
- BD00EA5WFP-E2
- Tillverkare / varumärke:
- ROHM
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The ROHM linear regulator is designed as low current consumption products for power supplies in various automotive applications. The output voltage can be adjusted between 1.2 V and 16 V by an external resistive divider connected to the adjustment pin. This regulator is ideal for any applications requiring a direct connection to the battery and a low current consumption.
Output shutdown function (EN Function)
Over current protection (OCP)
Thermal shutdown protection (TSD)
Over current protection (OCP)
Thermal shutdown protection (TSD)
Specifikationer
Attribute | Value |
|---|---|
| Regulator Function | LDO, Linear |
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 500mA |
| Number of Outputs | 1 |
| Output Voltage | 1.2 → 16 V |
| Line Regulation | 0.4 %/V |
| Load Regulation | 0.4 % |
| Accuracy | ±1% |
