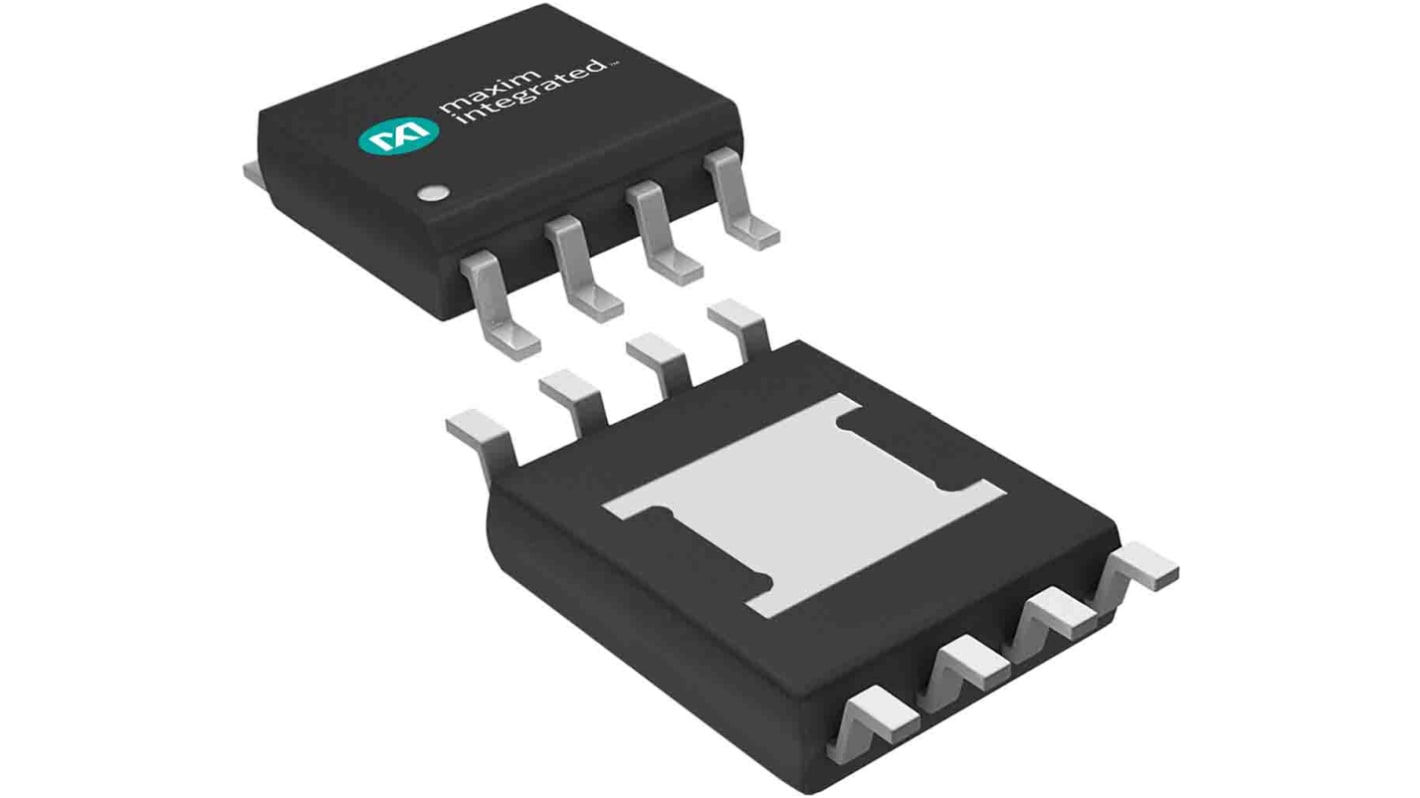

Maxim Integrated MAX1792EUA33+, 1 Linear Voltage, Voltage Regulator 500mA, 3.3 V, 1.25 → 5 V 8-Pin, μMax
- RS-artikelnummer:
- 191-7009
- Tillv. art.nr:
- MAX1792EUA33+
- Tillverkare / varumärke:
- Maxim Integrated
420 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
20,166 kr
(exkl. moms)
25,208 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
5 + | 20,166 kr | 100,83 kr |
- RS-artikelnummer:
- 191-7009
- Tillv. art.nr:
- MAX1792EUA33+
- Tillverkare / varumärke:
- Maxim Integrated
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
Guaranteed 500mA Output Current
Low 130mV Dropout at 500mA
Up to ±1% Output Voltage Accuracy
Preset at 1.5V, 1.8V, 2.5V, 3.3V, or 5.0V
Adjustable from 1.25V to 5.0V
Reset Output with 4ms Timeout Period
Low 80μA Ground Current
0.1μA Shutdown Current
Thermal Overload Protection
Output Current Limit
Tiny 1.3W Power-μMAX Package
Applications
Cell Phones/Cordless Phones
Docking Stations
Notebook Computers
Palmtop Computers
PDAs and Other Handheld Devices
USB Hubs
Wireless Base Stations
Low 130mV Dropout at 500mA
Up to ±1% Output Voltage Accuracy
Preset at 1.5V, 1.8V, 2.5V, 3.3V, or 5.0V
Adjustable from 1.25V to 5.0V
Reset Output with 4ms Timeout Period
Low 80μA Ground Current
0.1μA Shutdown Current
Thermal Overload Protection
Output Current Limit
Tiny 1.3W Power-μMAX Package
Applications
Cell Phones/Cordless Phones
Docking Stations
Notebook Computers
Palmtop Computers
PDAs and Other Handheld Devices
USB Hubs
Wireless Base Stations
Specifikationer
Attribute | Value |
---|---|
Maximum Output Current | 500mA |
Regulator Type | Linear Voltage |
Output Voltage | 3.3 V, 1.25 → 5 V |
Number of Outputs | 1 |
Line Regulation | 0.15 %/V |
Accuracy | ±1% |
Load Regulation | 1 % |
Mounting Type | Surface Mount |
Package Type | μMax |
Pin Count | 8 |
Power Rating | 1.3W |
Output Type | Adjustable, Fixed |
Dimensions | 3.05 x 3.05 x 0.95mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Minimum Input Voltage | 2.5 V |
Maximum Input Voltage | 5.5 V |
Height | 0.95mm |
Length | 3.05mm |
Width | 3.05mm |
