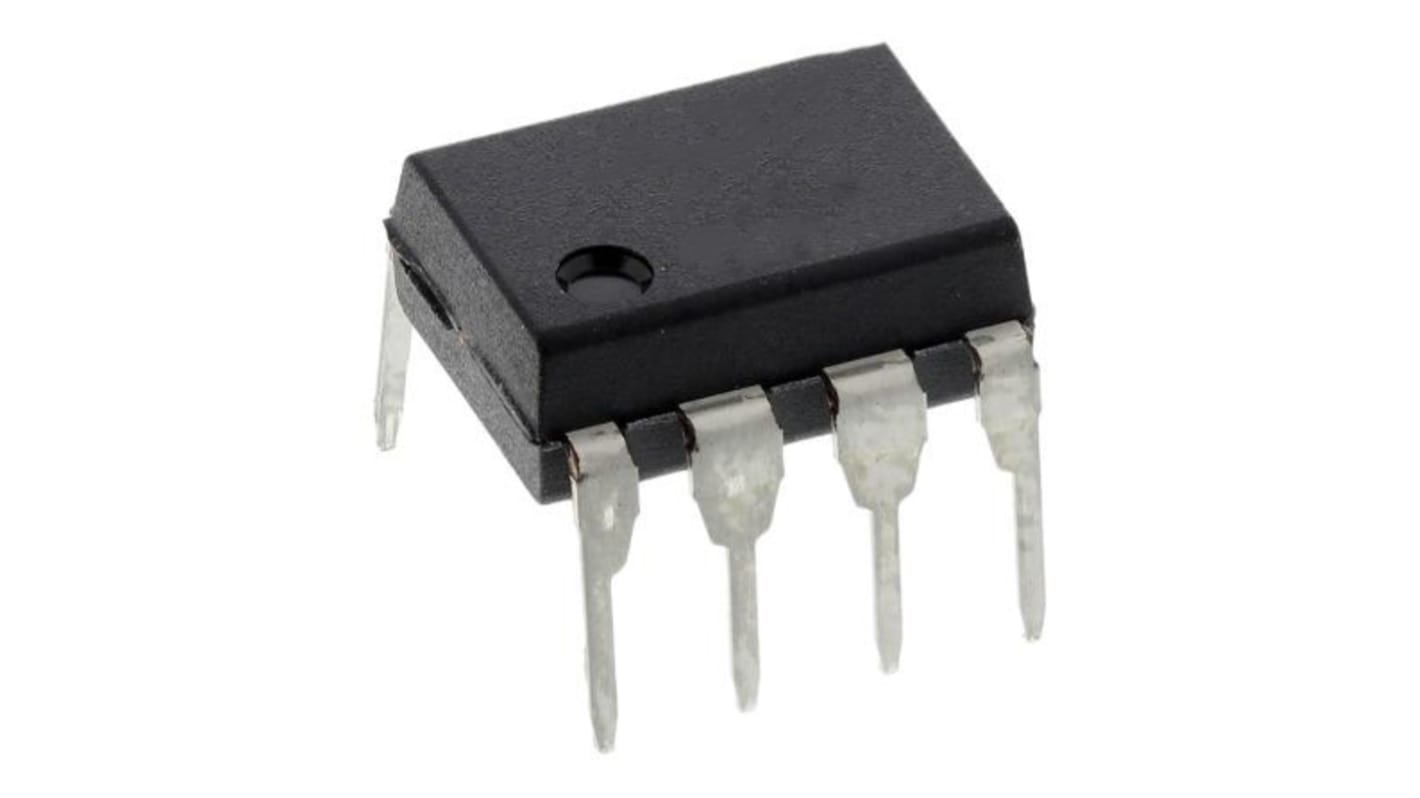

Maxim Integrated MAX882CPA+, 1 Low Dropout Voltage, Voltage Regulator 200mA, 1.25 → 11 V 8-Pin, PDIP
- RS-artikelnummer:
- 190-8026
- Tillv. art.nr:
- MAX882CPA+
- Tillverkare / varumärke:
- Maxim Integrated
14 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
69,755 kr
(exkl. moms)
87,194 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 8 | 69,755 kr | 139,51 kr |
| 10 - 24 | 62,935 kr | 125,87 kr |
| 26 - 98 | 59,94 kr | 119,88 kr |
| 100 - 248 | 48,52 kr | 97,04 kr |
| 250 + | 44,415 kr | 88,83 kr |
- RS-artikelnummer:
- 190-8026
- Tillv. art.nr:
- MAX882CPA+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PH
Produktdetaljer
Foldback Current Limiting
High-Power (1.5W) 8-Pin SO Package
Dual Mode Operation: Fixed or Adjustable Output from 1.25V to 11V
Large Input Range (2.7V to 11.5V)
Internal 1.1Ω p-Channel Pass Transistor Draws No Base Current
Low 220mV Dropout Voltage at 200mA Output Current
11μA (typ) Quiescent Current
1μA (max) Shutdown Mode or 7μA (typ) Standby Mode
Low-Battery Detection Comparator
Reverse-Current Protection
Thermal-Overload Protection
Applications
1.25V to 11V Adjustable Regulators
3.3V and 5V Regulators
Automotive Electronics
High-Efficiency Linear Regulators
Pagers and Cell Phones
Portable Instrumentation
Solar-Powered Instruments
High-Power (1.5W) 8-Pin SO Package
Dual Mode Operation: Fixed or Adjustable Output from 1.25V to 11V
Large Input Range (2.7V to 11.5V)
Internal 1.1Ω p-Channel Pass Transistor Draws No Base Current
Low 220mV Dropout Voltage at 200mA Output Current
11μA (typ) Quiescent Current
1μA (max) Shutdown Mode or 7μA (typ) Standby Mode
Low-Battery Detection Comparator
Reverse-Current Protection
Thermal-Overload Protection
Applications
1.25V to 11V Adjustable Regulators
3.3V and 5V Regulators
Automotive Electronics
High-Efficiency Linear Regulators
Pagers and Cell Phones
Portable Instrumentation
Solar-Powered Instruments
Specifikationer
Attribute | Value |
|---|---|
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 200mA |
| Output Voltage | 1.25 → 11 V |
| Number of Outputs | 1 |
| Line Regulation | 40 mV |
| Load Regulation | 150 mV |
| Accuracy | ±1% |
| Polarity | Positive |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Quiescent Current | 15µA |
| Reference Voltage | 1.16 → 1.24V |
| Pin Count | 8 |
| Power Rating | 1.5W |
| Output Type | Adjustable |
| Dimensions | 9.91 x 7.87 x 4.45mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Input Voltage | 2.7 V |
| Height | 4.45mm |
| Maximum Input Voltage | 11.5 V |
| Minimum Operating Temperature | 0 °C |
| Length | 9.91mm |
| Width | 7.87mm |
