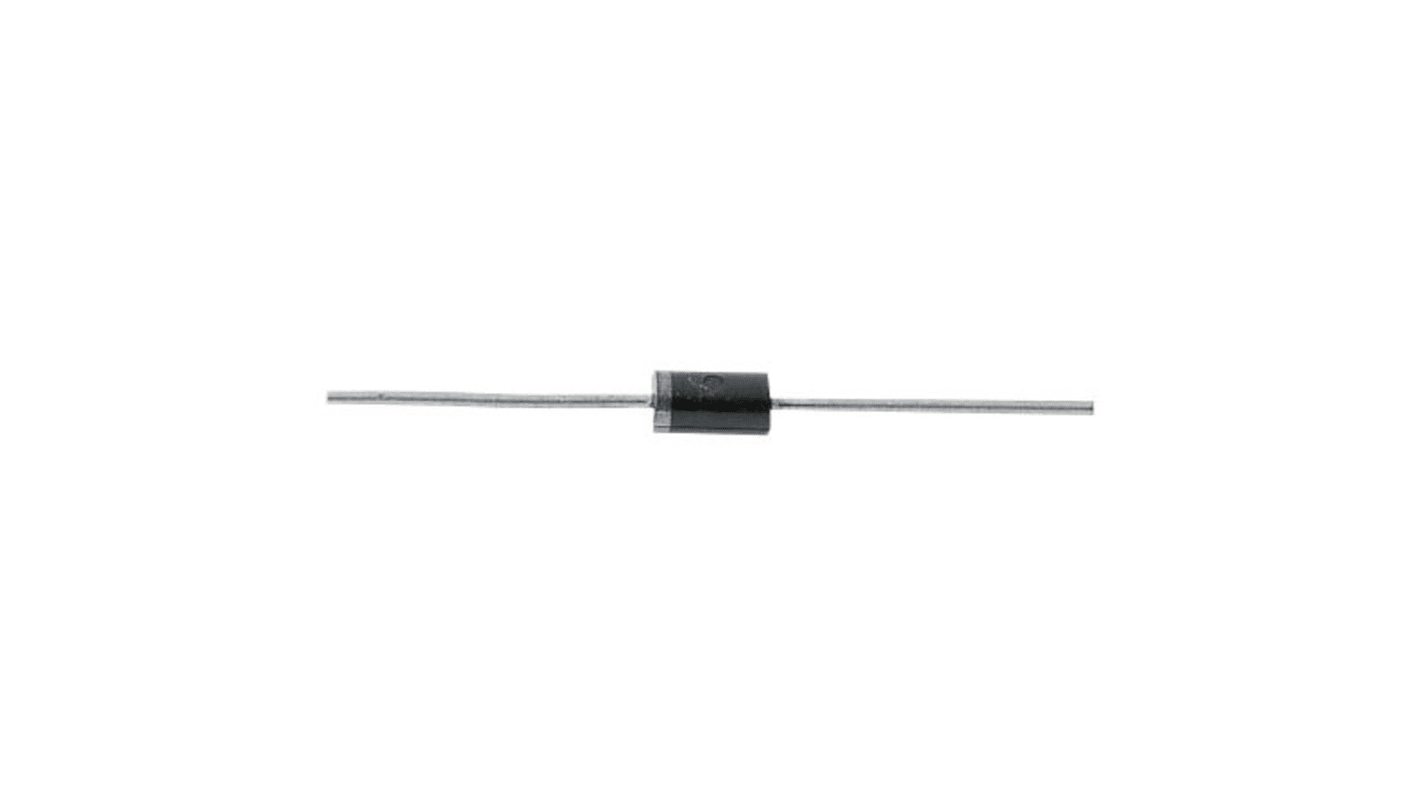

HY Electronic Corp 1.5KE22CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-201
- RS-artikelnummer:
- 903-5513
- Tillv. art.nr:
- 1.5KE22CA
- Tillverkare / varumärke:
- HY Electronic Corp
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Var (i en tejp med 1200)
0,928 kr
(exkl. moms)
1,16 kr
(inkl. moms)
| Enheter | Per unit | Per Tape* |
| 1200 - 2400 | 0,928 kr | 1 113,60 kr |
| 3600 + | 0,882 kr | 1 058,40 kr |
- RS-artikelnummer:
- 903-5513
- Tillv. art.nr:
- 1.5KE22CA
- Tillverkare / varumärke:
- HY Electronic Corp
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
TVS Diodes Axial Bidirectional 1500W, 1.5KE Series, HY Electronic (Cayman) Limited
The 1.5KE Series from HY Electronic (Cayman) Limited are bidirectional transient voltage suppressors. The TVS diode features low leakage, clamping voltage and fast response time. The suppressor is a glass passivated chip offering 1500 W power dissipation and provides the solution for surge protection in circuits.
Polarity: Bi-directional
Plastic Material: UL 94V-0 recognition
Package: DO-27
Reverse Voltage ranges from 6.8 V to 220 V
Plastic Material: UL 94V-0 recognition
Package: DO-27
Reverse Voltage ranges from 6.8 V to 220 V
Transient Voltage Suppressors, HY Electronic (Cayman) Limited
HY Electronic (Cayman) Limited introduce a series of transient voltage suppressors (TVS), that are diodes offering transient voltage protection. The TVS Diodes are supplied in either axial or surface mount packages. Ranging from 400 W up to 1500 W with either Uni-directional or Bi-directional direction.
Specifikationer
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 30.6V |
| Minimum Breakdown Voltage | 20.9V |
| Mounting Type | Through Hole |
| Package Type | DO-201 |
| Maximum Reverse Stand-off Voltage | 18.8V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 49A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Dimensions | 5.6 (Dia.) x 9.5 (L)mm |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 5µA |
| Test Current | 1mA |
| Diameter | 5.6mm |
| Length | 9.5mm |
| Surge Current Rating | 200A |
