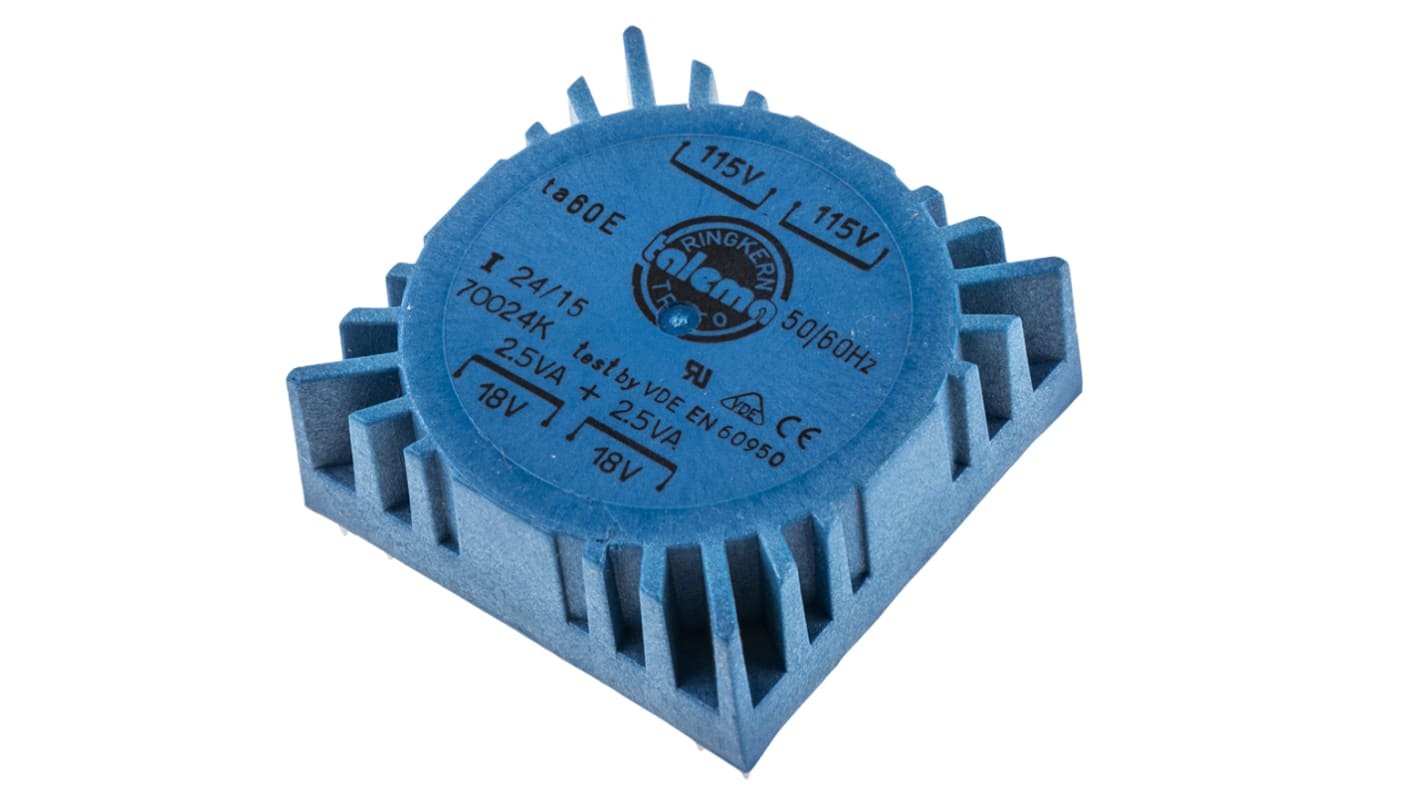

Nuvotem Talema 115 V ac, 230 V ac, 2 x 18V ac Toroidal Transformer, 5VA 2 Output

RS-artikelnummer:: 223-9159
Tillv. art.nr:: 70024K
Tillverkare / varumärke:: Nuvotem Talema

Nuvotem Talema 115 V ac, 230 V ac, 2 x 18V ac Toroidal Transformer, 5VA 2 Output

64 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

216,03 kr

(exkl. moms)

270,04 kr

(inkl. moms)

Enheter	Per unit
1 +	216,03 kr

RS-artikelnummer:: 223-9159
Tillv. art.nr:: 70024K
Tillverkare / varumärke:: Nuvotem Talema

Datablad

Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: IN

Produktdetaljer

Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers

This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting

Low profile compact design
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested

Standards

EN60950, VDE0805, UL506, UL1950, UL6500

Approvals

UL recognised, VDE

Approvals

EN60950; VDE 0805 (VDE 5803UG); UL 506 (E215495); UL 1950 (E218027; UL 6500 (E218027)

Encapsulated – Toroidal

Note

Fixing screws not provided

Specifikationer

Attribute	Value
Primary Voltage Rating	115 V ac, 230 V ac
Secondary Voltage Rating	2 x 18V ac
Power Rating	5VA
Number of Outputs	2
Secondary Current	139mA
Weight	144g
Dimensions	49.7 x 49.7 x 19.5mm
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Mounting Type	PCB
Termination Type	Pin
Fixing Hole Diameter	M4
Maximum Temperature	+60°C

RS-artikelnummer:: 223-9159
Tillv. art.nr:: 70024K
Tillverkare / varumärke:: Nuvotem Talema

Datasheet
