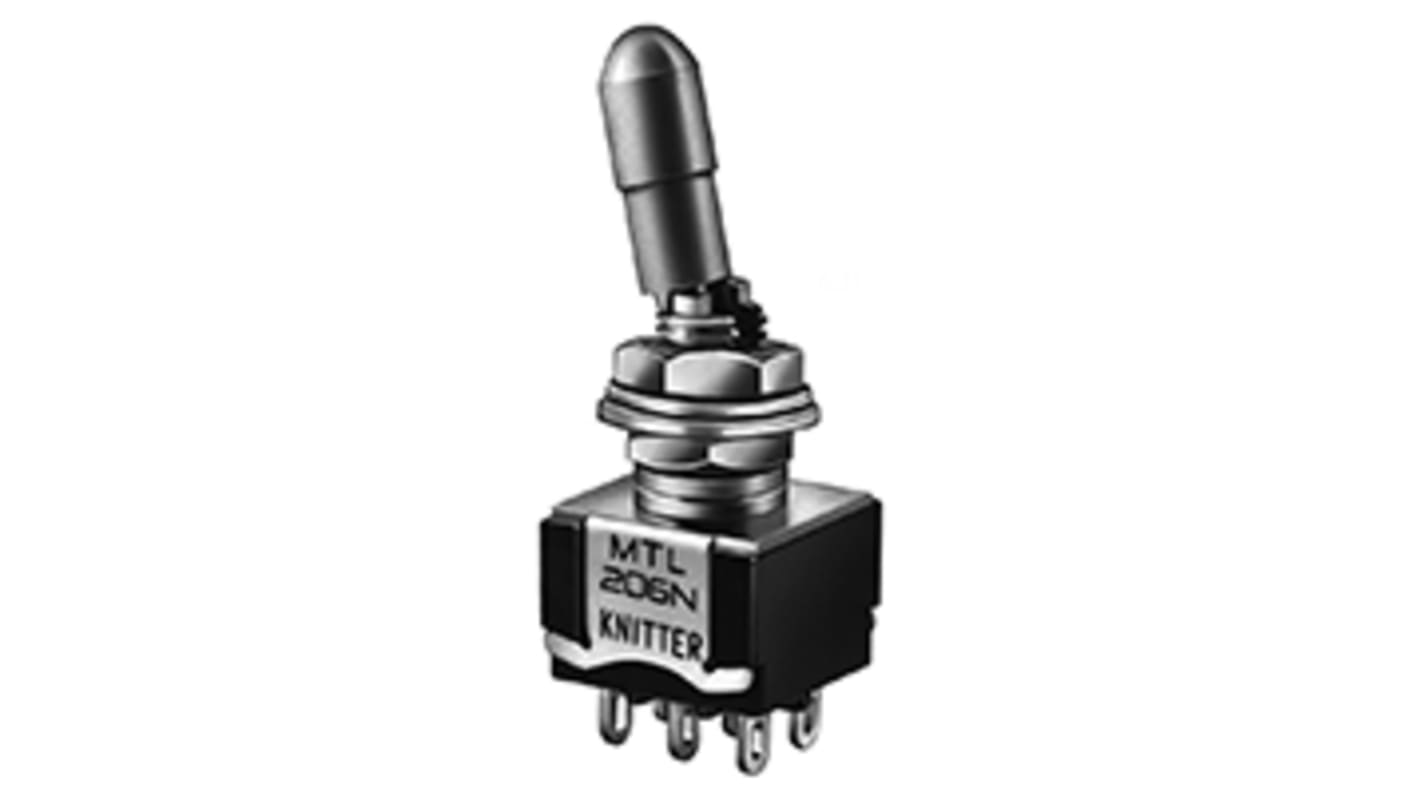

KNITTER-SWITCH Toggle Switch, Panel Mount, On-On-On, DPDT, Solder Terminal
- RS-artikelnummer:
- 819-9296
- Tillv. art.nr:
- MTL 206 PA
- Tillverkare / varumärke:
- KNITTER-SWITCH
Tillfälligt slut i lager – restorder för leverans 2024-05-10
Lagt till varukorgen
Pris (ex. moms) Varje
173,84 kr
(exkl. moms)
217,30 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 49 | 173,84 kr |
| 50 - 99 | 163,01 kr |
| 100 - 249 | 144,08 kr |
| 250 - 499 | 130,95 kr |
| 500 + | 118,48 kr |
- RS-artikelnummer:
- 819-9296
- Tillv. art.nr:
- MTL 206 PA
- Tillverkare / varumärke:
- KNITTER-SWITCH
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Knitter Switch Miniature Toggle Switches - MTL Series
M6 x 0.75 bushing with locking plate
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case"
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case"
Specifikationer
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.2mm |
| Actuator Length | 15mm |
| Panel Cut Out Size | 6.2mm |
| Contact Resistance | <0.01Ω |
| Contact Material | Silver Plated Copper Alloy |
| Maximum Operating Temperature | +140°C |
| Minimum Operating Temperature | -45°C |
| Mechanical Life | 300000Operations |
| Operating Temperature Range | -45 → +140°C |
