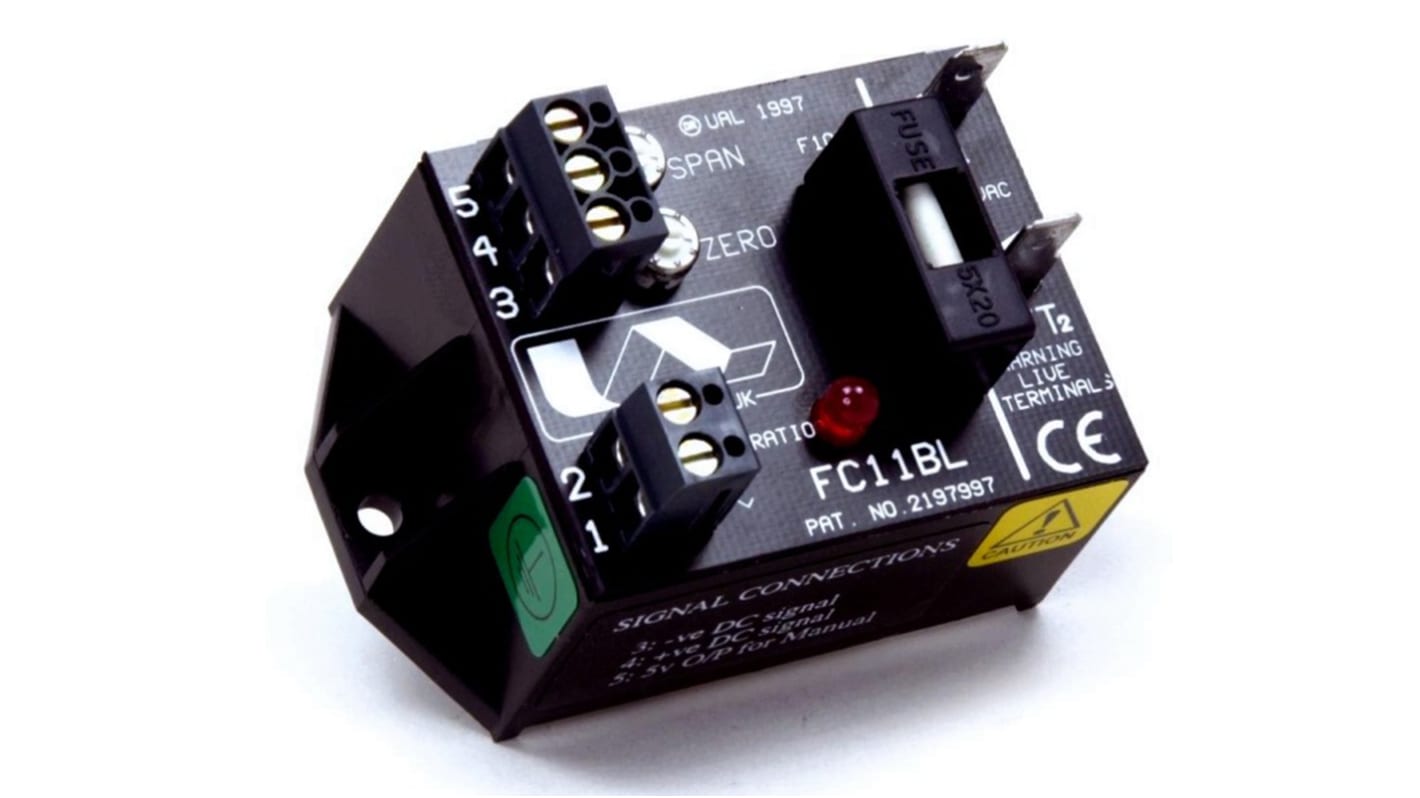

United Automation FC11BL, Thyristor Trigger Module
- RS-artikelnummer:
- 214-3890
- Tillv. art.nr:
- FC11BL
- Tillverkare / varumärke:
- United Automation
4 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 204,71 kr
(exkl. moms)
1 505,89 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 1 | 1 204,71 kr |
| 2 - 4 | 1 182,97 kr |
| 5 - 9 | 1 134,84 kr |
| 10 - 19 | 1 042,02 kr |
| 20 + | 987,90 kr |
- RS-artikelnummer:
- 214-3890
- Tillv. art.nr:
- FC11BL
- Tillverkare / varumärke:
- United Automation
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
Burst Firing Trigger Module, FC11BL
Single phase burst firing modules for driving triacs and thyristors with resistive loads.
Fires triacs & thyristors up to 440V
RFI free, zero voltage switching
Selectable soft-start function
Opto-coupled output
MONO-LINK® gate-to-gate firing
Voltage control or 4-20mA current loop
Auxiliary 5Vdc output for manual control
LED output power indicator
RFI free, zero voltage switching
Selectable soft-start function
Opto-coupled output
MONO-LINK® gate-to-gate firing
Voltage control or 4-20mA current loop
Auxiliary 5Vdc output for manual control
LED output power indicator
The number of complete mains cycles during fixed repeating periods (typically 1 to 10 seconds) is varied, thus altering the duty cycle or on-/off-time ratio. Trigger pulses coincide with the zero-crossing times of the mains supply thus ensuring no RFI is produced when using resistive loads.
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Screw Mount |
| Output Isolation | 1.5kV |
| Input Voltage AC | 111/230V ac |
| Input Voltage DC | 111/240V dc |
| Dimensions | 73 x 44 x 44mm |
| Maximum Operating Temperature | +65 °C |
