- RS-artikelnummer:
- 623-5599
- Tillverkare / varumärke:
- POP
19 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) 1 påse med 100
437,60 kr
(exkl. moms)
547,00 kr
(inkl. moms)
| Påse(ar) | Per Bag | Per unit* |
| 1 + | 437,60 kr | 4,376 kr |
- RS-artikelnummer:
- 623-5599
- Tillverkare / varumärke:
- POP
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

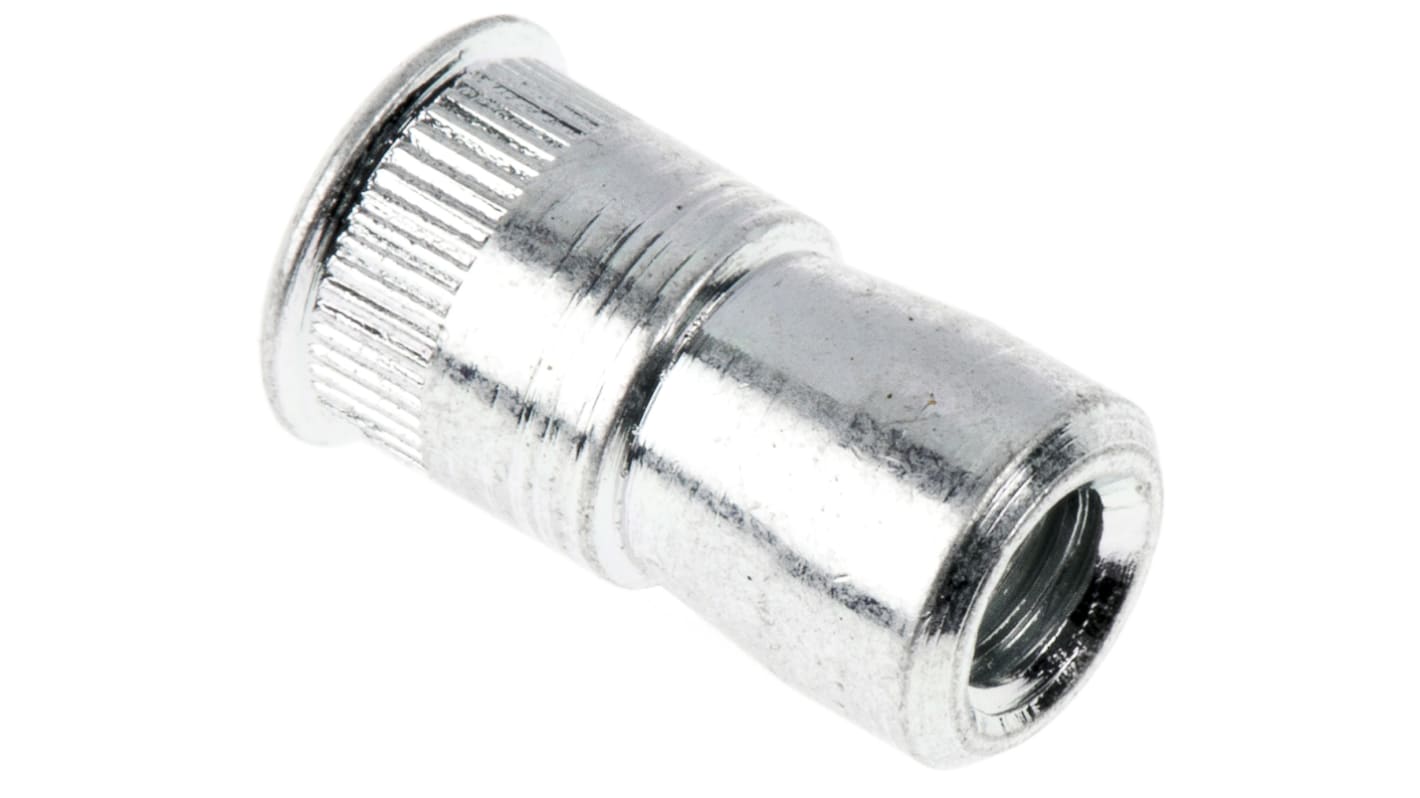

Standard Threaded Inserts
Manufactured from steel, zinc & clear passivated
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
May be set with Stock No. 487-151 and the tool contained in Threaded Insert Kit, Stock No. 623-5549
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
May be set with Stock No. 487-151 and the tool contained in Threaded Insert Kit, Stock No. 623-5549
Clinchnuts & Thread Inserts
Specifikationer
Attribute | Value |
|---|---|
| Thread Size | M3 |
| Flange Diameter | 5.36mm |
| Body Outside Diameter | 5.36mm |
| Body Depth | 9.4mm |
| Material | Steel |
| Finish | Clear Passivated, Galvanised |
