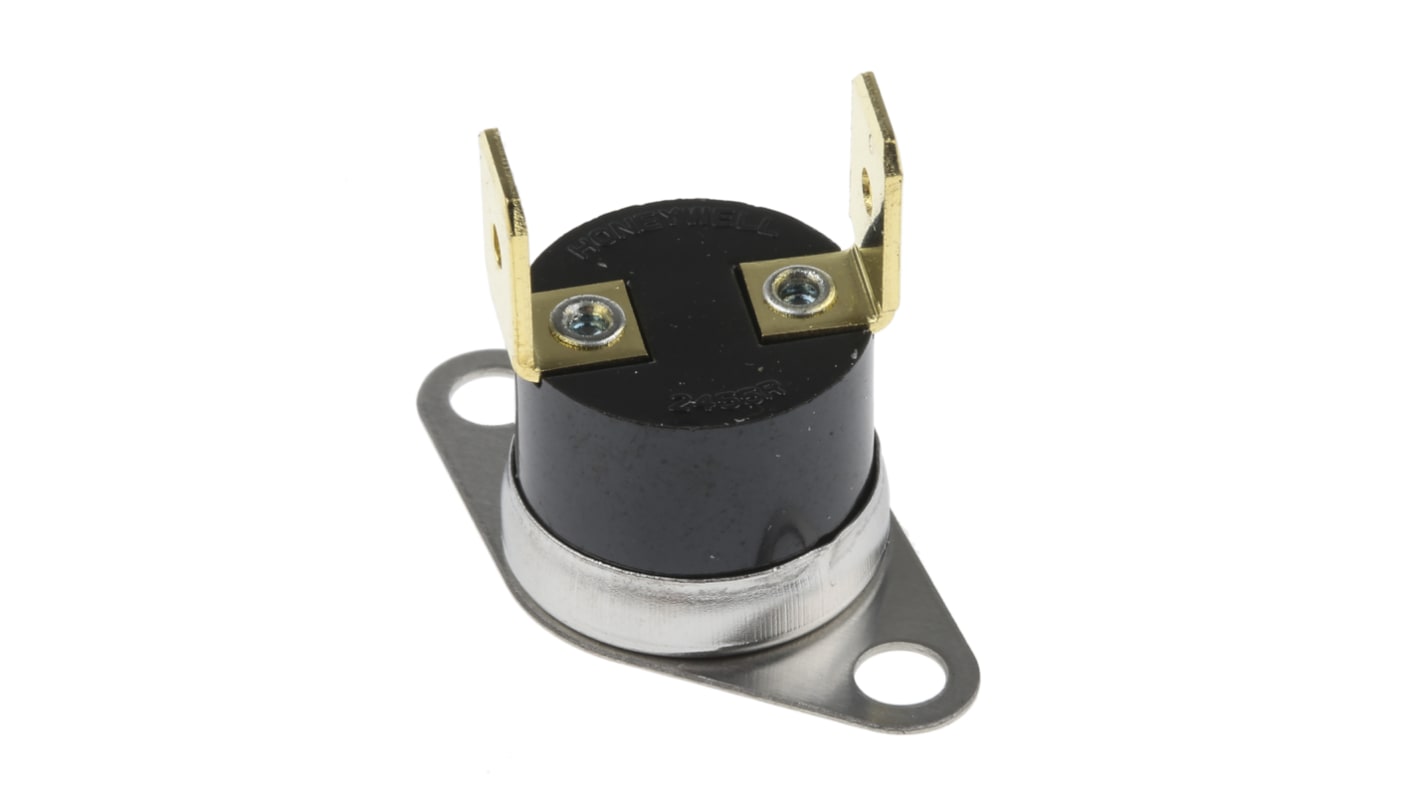

Honeywell SPST-NO 10 A Bi-Metallic Thermostat, Opens at+50°C

  • RS-artikelnummer 228-2557
  • Tillv. art.nr 2455R 9082-464 F50C
  • Tillverkare / varumärke Honeywell
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
• Phenolic body with stainless steel end cap.
• 1/4in tab termination.
• Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
• Dielectric strength of 2000 Vac.
• N/C types open on temperature rise.
• N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Thermal Switches

Specifikationer
Attribute Value
Opening Temperature +50°C
Closing Temperature +82.2°C
Thermostat Type Bi-Metallic
Switch Configuration SPST-NO
Contact Rating 10 A
Contact Voltage Rating 250 V ac
Terminal Type Solder Tab
2321 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
51,84 kr
(exkl. moms)
64,80 kr
(inkl. moms)
Enheter
Per unit
1 - 9
51,84 kr
10 - 24
48,47 kr
25 +
46,56 kr
