Honeywell Bi-Metallic Thermostat, Opens at +60°C, Closes at +75°C, +150°C Max, NO, Automatic Reset, Bracket Mount

RS-artikelnummer:: 331-556
Tillv. art.nr:: 2455R 82-712 F75C
Tillverkare / varumärke:: Honeywell

Honeywell Bi-Metallic Thermostat, Opens at +60°C, Closes at +75°C, +150°C Max, NO, Automatic Reset, Bracket Mount

925 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

320,43 kr

(exkl. moms)

400,54 kr

(inkl. moms)

Enheter	Per unit
1 - 4	320,43 kr
5 - 9	311,13 kr
10 +	294,72 kr

RS-artikelnummer:: 331-556
Tillv. art.nr:: 2455R 82-712 F75C
Tillverkare / varumärke:: Honeywell

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

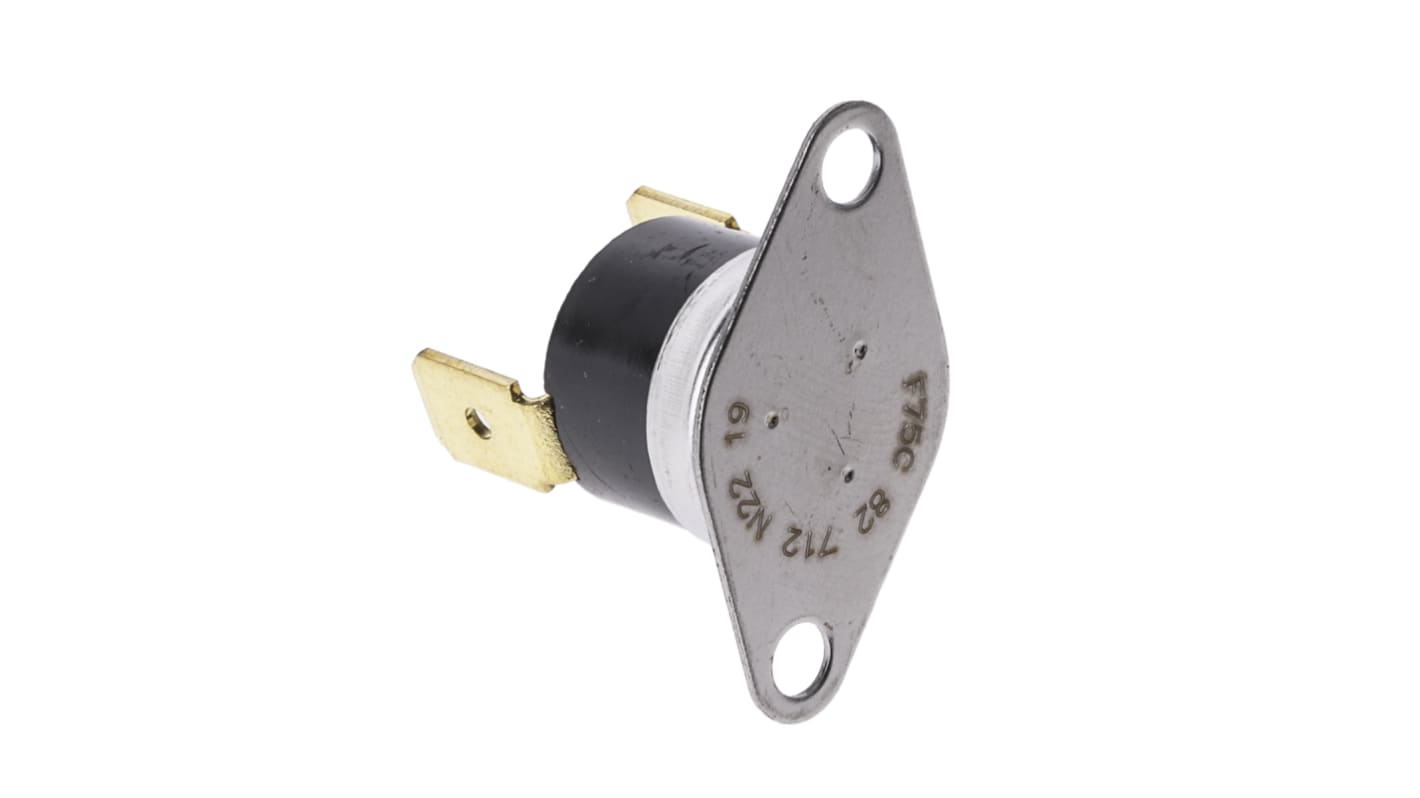

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
• Phenolic body with stainless steel end cap.
• 1/4in tab termination.
• Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
• Dielectric strength of 2000 Vac.
• N/C types open on temperature rise.
• N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Thermal Switches

Specifikationer

Attribute	Value
Minimum Temperature	0°C
Maximum Temperature	+150°C
Opening Temperature	+60°C
Closing Temperature	+75°C
Thermostat Type	Bi-Metallic
Switch Configuration	NO
Contact Rating	15A
Contact Voltage Rating	240V ac
Terminal Type	Quick Connect
Reset Type	Automatic
Mounting Type	Bracket Mount
