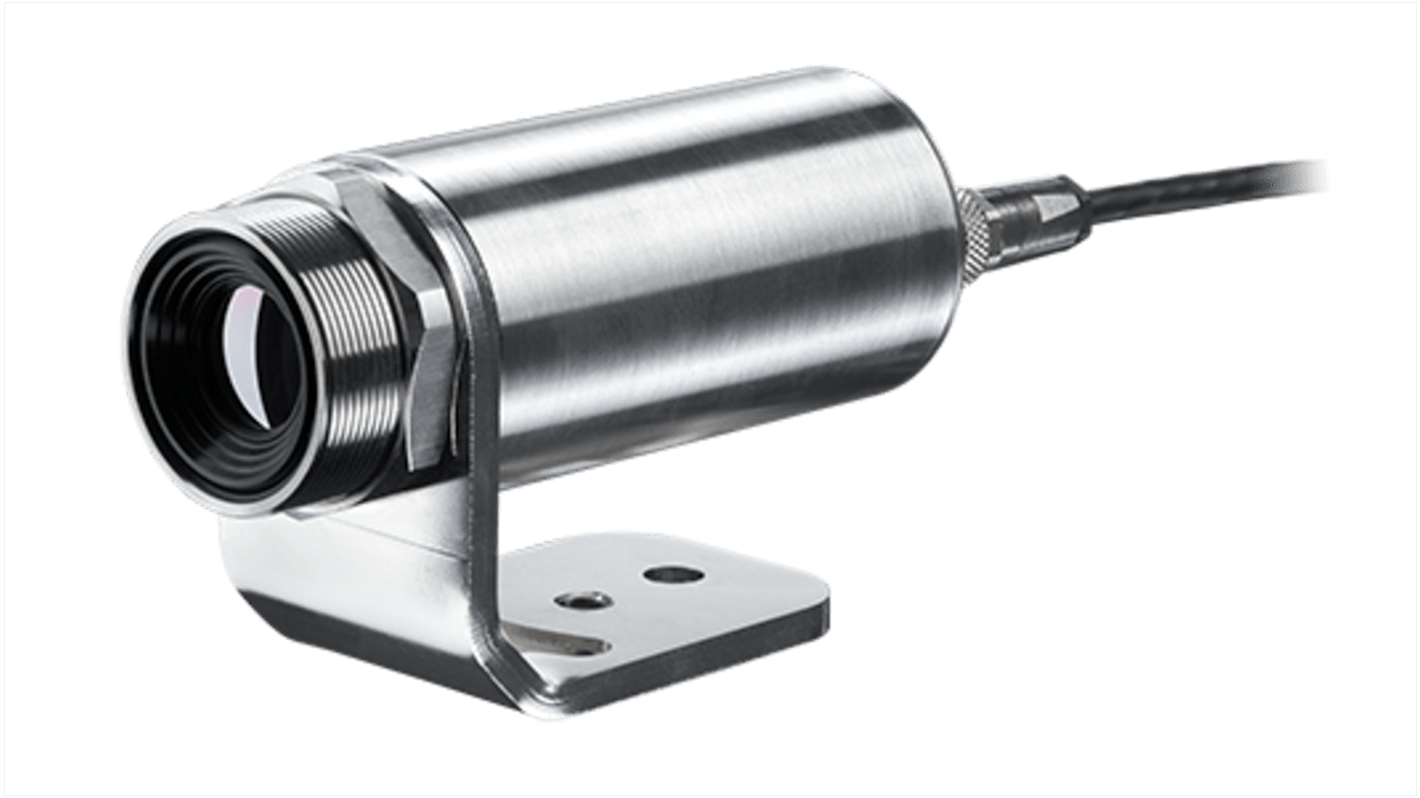

Optris CATXI80LTF05T090C USB Thermal Imaging Camera, -20 → +900 °C, 80 x 80pixel Detector Resolution
- RS-artikelnummer:
- 241-0182
- Tillv. art.nr:
- CATXI80LTF05T090C
- Tillverkare / varumärke:
- Optris
1 I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
13 326,52 kr
(exkl. moms)
16 658,15 kr
(inkl. moms)
Enheter | Per unit |
1 + | 13 326,52 kr |
- RS-artikelnummer:
- 241-0182
- Tillv. art.nr:
- CATXI80LTF05T090C
- Tillverkare / varumärke:
- Optris
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Compact IR camera Kit
The Xi80 is a fusion of a rugged, compact pyrometer and a modern IR camera. The Xi80 can run as hot spot finder even wothout a connected PC autonomously. Thanks to analog and digital outputs as well as the option to process definable measuring areas using an external process interface, the Xi camera is perfectly suited for hot spot detection.
The silicon bolometer offers a resolution of 80x80 px. For easy and precise sighting a motor focus is integrated and can be adjusted easily via the free of charge software PIX connect or even by your Android smartphone and the free Android App IR mobile.
The silicon bolometer offers a resolution of 80x80 px. For easy and precise sighting a motor focus is integrated and can be adjusted easily via the free of charge software PIX connect or even by your Android smartphone and the free Android App IR mobile.
Small sized rugged IR camera with motor focus
Temperature Range -20 to 900 °C and Frame Rate up to 50 Hz
Direct In- and Output (0/4-20mA) plus digital or analogue Input
Autonomous hot spot detection
Free (Android/Windows) software for download
Radiometric recording
Temperature Range -20 to 900 °C and Frame Rate up to 50 Hz
Direct In- and Output (0/4-20mA) plus digital or analogue Input
Autonomous hot spot detection
Free (Android/Windows) software for download
Radiometric recording
Scope of Delivery
Xi 80 camera
1m USB cable
Direct OUT/IN cable (Xi 80)
IR App Connector Xi 80 (USB-C)
Mounting bracket and nut
Software package PIX Connect
Quick start guide
1m USB cable
Direct OUT/IN cable (Xi 80)
IR App Connector Xi 80 (USB-C)
Mounting bracket and nut
Software package PIX Connect
Quick start guide
Accessories:
CATACXIUSBCB5
Specifikationer
Attribute | Value |
---|---|
Temperature Measurement Range | -20 → +900 °C |
Detector Resolution | 80 x 80pixel |
Model Number | CATXI80LTF05T090C |
Thermal Sensitivity | 80mK |
Focus Type | Manual, Motor |
Refresh Rate | 50Hz |
Minimum Focus Distance | 100mm |
Dimensions L x W x D | ø36mm x 100mm |
Model Number p | CATXI80LTF05T090C |
Application | Temperature measurement |
Minimum Focus | 100 mm |
Visual Camera | No |
Maximum Temperature Measurement | 900°C |
Interface Type | USB |
Accuracy | ±2°C or ±2% |
Emissivity | adjustable |
Weight | 200g |
Field of View | 30° x 30° |
