RS PRO Temperature & Humidity Sensor, Digital Output, Surface Mount, I2C, 1.5%RH, 8 Pins - Factory Calibrated
- RS-artikelnummer:
- 246-5631
- Tillverkare / varumärke:
- RS PRO
2456 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
66,41 kr
(exkl. moms)
83,01 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 66,41 kr |
| 10 - 24 | 56,34 kr |
| 25 - 99 | 47,92 kr |
| 100 - 499 | 46,06 kr |
| 500 + | 44,64 kr |
- RS-artikelnummer:
- 246-5631
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

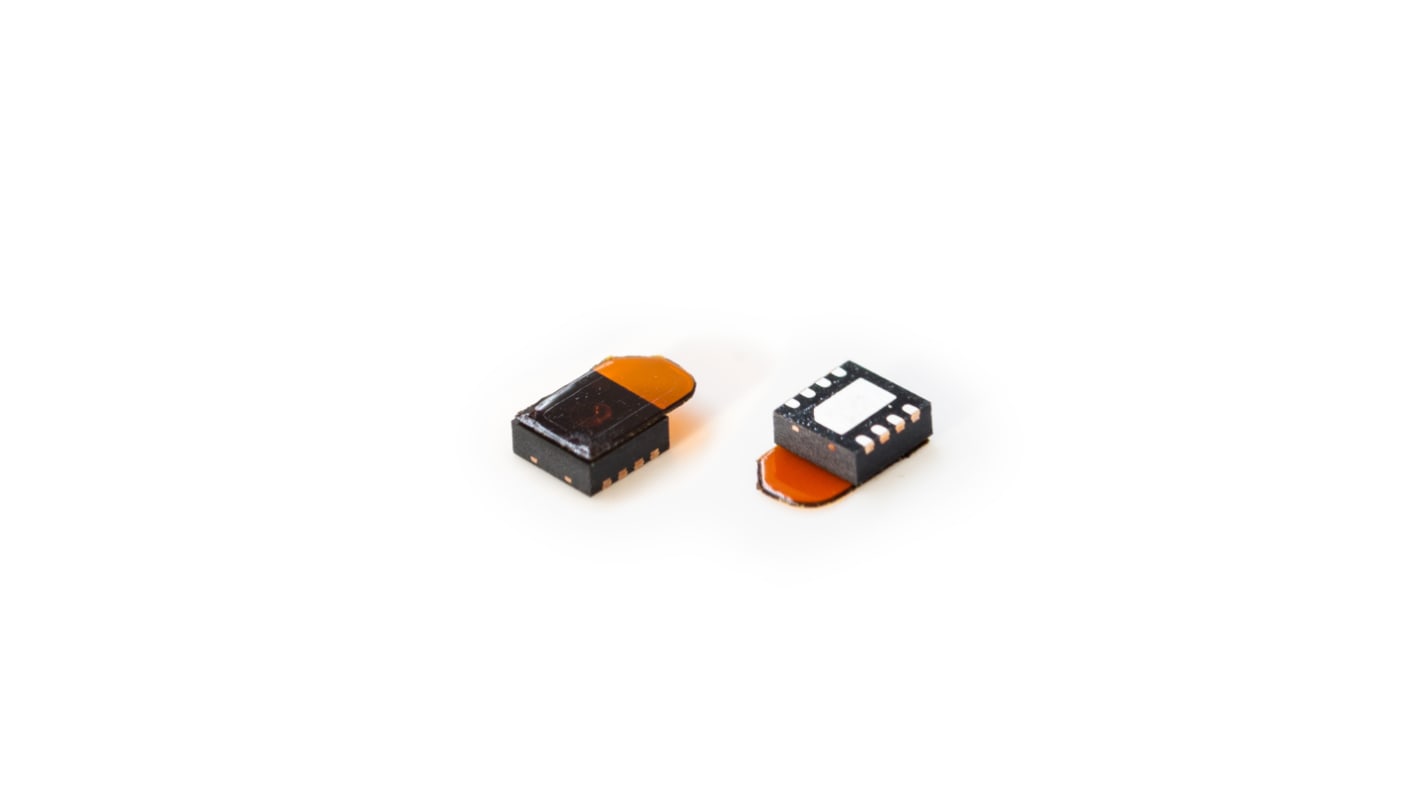

RS PRO Wide Voltage Range Temperature and Humidity Sensor I2C
RS PRO Temperature and Humidity Sensor designed for increased intelligence, reliability, and a high level of accuracy. Featuring a fast start-up time and a minute 8-Pin DFN package this Humidity and Temperature Sensor lends itself to a variety of applications.
- Fully calibrated, linearized, and temperature compensated digital output
- Enhanced signal processing
- Wide supply voltage range of 2.15 V to 5.5 V
- Low humidity hysteresis at 25°C, ± 0.8%RH
- I2C Interface with communication speeds up to 1 MHz
- Two user selectable addresses
- DFN package type
- Footprint of 2.5 x 2.5 mm with a height of only 0.9 mm
Also available for purchase in a pack size of 1. Please see RS 246-5631
Approvals
UL/ EN / IEC
Specifikationer
Attribute | Value |
|---|---|
| Sensor Function | Temperature & Humidity |
| Output Type | Digital |
| Interface Type | I2C |
| Accuracy | 1.5%RH |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Minimum Operating Supply Voltage | 2.15 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | DFN |
| Length | 2.5mm |
| Height | 0.9mm |
| Width | 2.5mm |
| Resolution | 0.01% |
| Dimensions | 2.5 x 2.5 x 0.9mm |
| Calibrated | Factory Calibrated |
