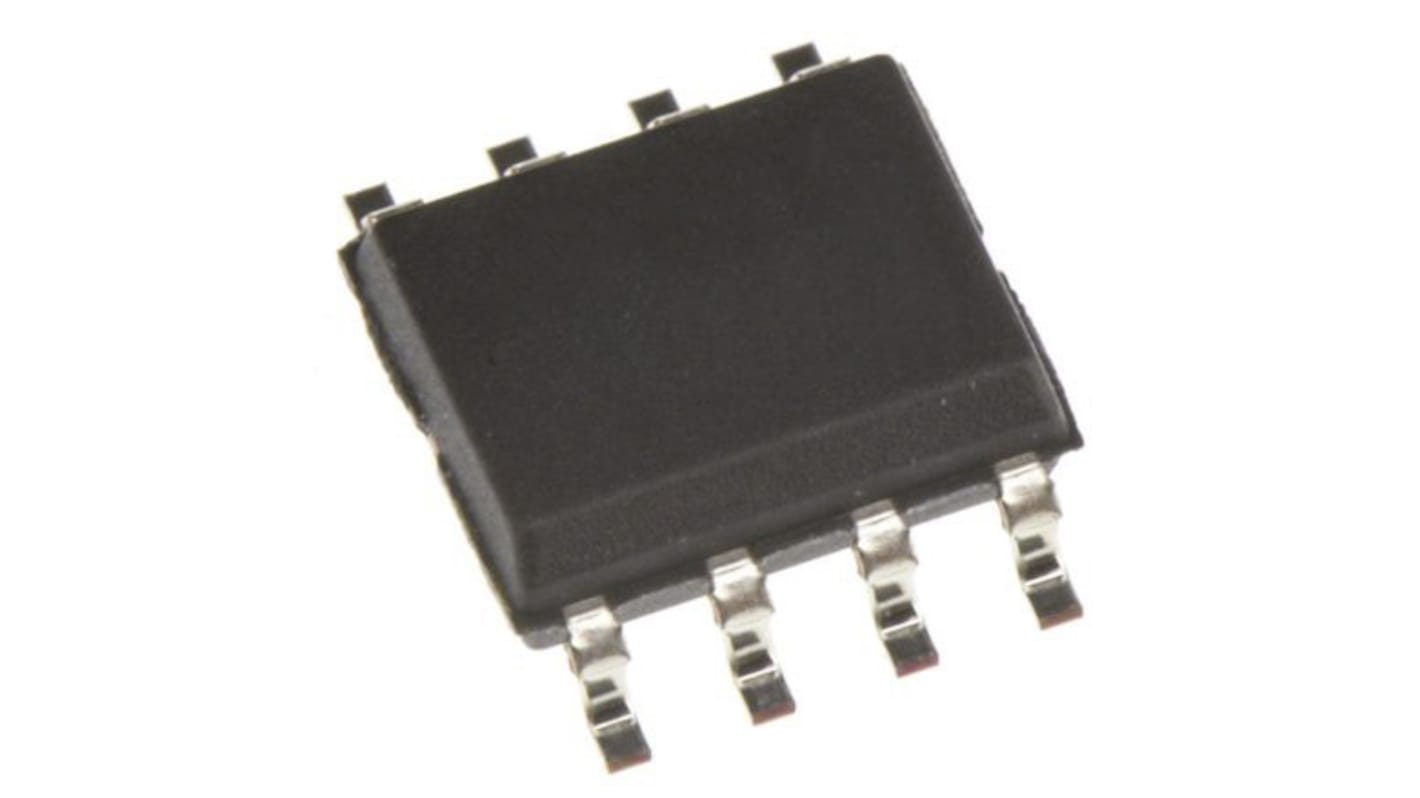

Maxim Integrated Digital Temperature Sensor, Digital Output, Surface Mount, Serial-3 Wire, SPI, ±2°C, 8 Pins
- RS-artikelnummer:
- 190-8067
- Tillv. art.nr:
- DS1722S+T&R
- Tillverkare / varumärke:
- Maxim Integrated
105 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
50,88 kr
(exkl. moms)
63,60 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 50,88 kr | 254,40 kr |
| 25 - 45 | 44,782 kr | 223,91 kr |
| 50 - 245 | 36,642 kr | 183,21 kr |
| 250 - 495 | 34,646 kr | 173,23 kr |
| 500 + | 33,58 kr | 167,90 kr |
- RS-artikelnummer:
- 190-8067
- Tillv. art.nr:
- DS1722S+T&R
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Temperature Measurements Require No External Components
Measures Temperatures from -55°C to +120°C. Fahrenheit Equivalent is -67°F to +248°F
Thermometer Accuracy is ±2.0°C
Thermometer Resolution is Configurable from 8 to 12 bits (1.0°C to 0.0625°C Resolution)
Data is Read From/Written to Via a Motorola Serial Peripheral Interface (SPI) or Standard 3-Wire Serial Interface
Wide Analog Power Supply Range (2.65V - 5.5V)
Separate Digital Supply Allows for 1.8V Logic
Available in an 8-Pin SO (150mil) and 8-Pin μMAX package
Applications
Cell Phone Base Stations
Computer Peripherals
Networking
Telecommunications
Test Systems
Measures Temperatures from -55°C to +120°C. Fahrenheit Equivalent is -67°F to +248°F
Thermometer Accuracy is ±2.0°C
Thermometer Resolution is Configurable from 8 to 12 bits (1.0°C to 0.0625°C Resolution)
Data is Read From/Written to Via a Motorola Serial Peripheral Interface (SPI) or Standard 3-Wire Serial Interface
Wide Analog Power Supply Range (2.65V - 5.5V)
Separate Digital Supply Allows for 1.8V Logic
Available in an 8-Pin SO (150mil) and 8-Pin μMAX package
Applications
Cell Phone Base Stations
Computer Peripherals
Networking
Telecommunications
Test Systems
Specifikationer
Attribute | Value |
|---|---|
| Sensor Function | Temperature |
| Output Type | Digital |
| Interface Type | Serial-3 Wire, SPI |
| Accuracy | ±2°C |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Minimum Operating Temperature | -55 °C |
| Operating Temperature Range | -55 to +125 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 1.8 (Digital) V, 2.65 (Analogue) V |
| Maximum Operating Supply Voltage | 5.5 (Analogue) V, 5.5 (Digital) V |
| Package Type | SO |
| Length | 5mm |
| Height | 1.5mm |
| Width | 4mm |
| Resolution | 12 bit |
| Dimensions | 5 x 4 x 1.5mm |
