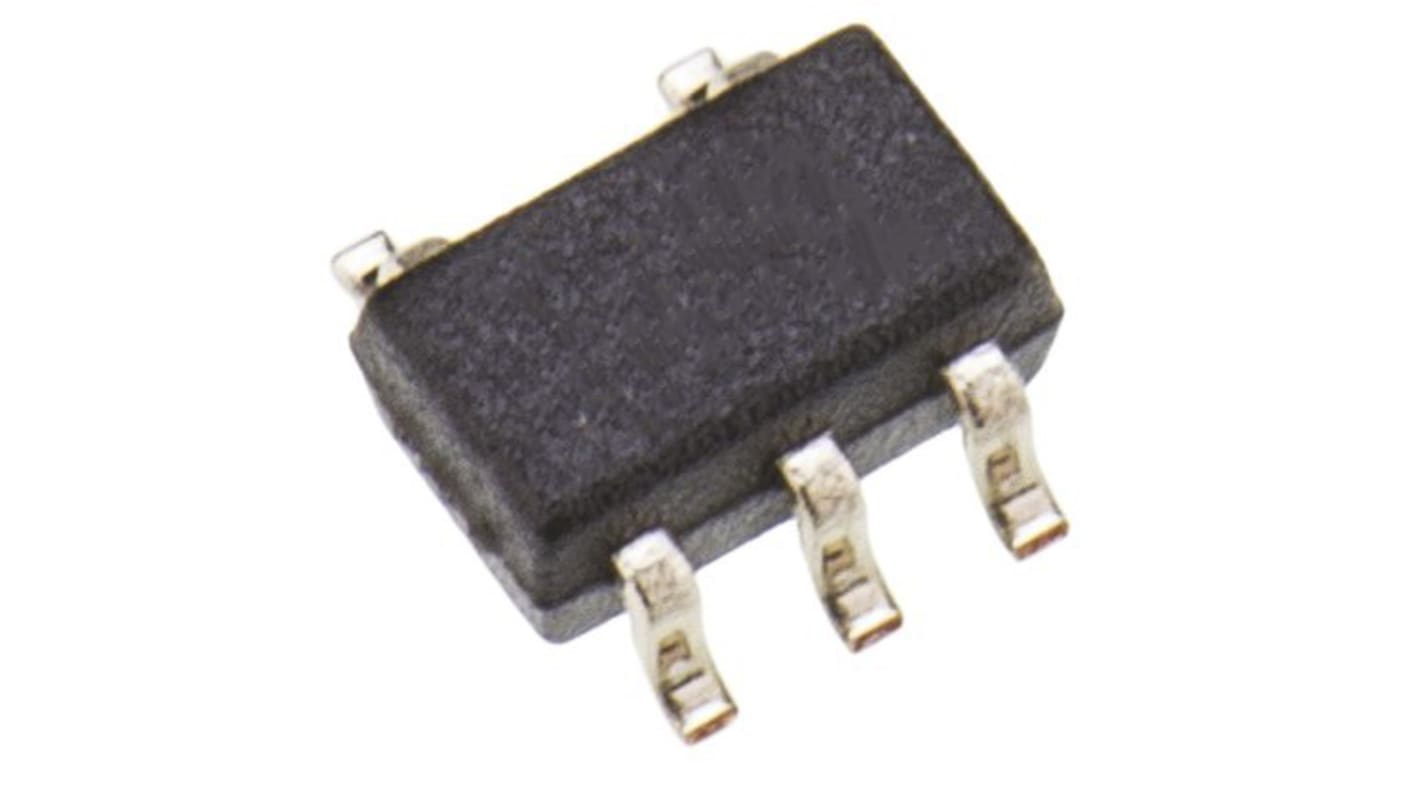

- RS-artikelnummer:
- 190-5434P
- Tillv. art.nr:
- MAX6613MXK+T
- Tillverkare / varumärke:
- Maxim Integrated
3570 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i en rulle) Quantities below 150 on continuous strip
5,428 kr
(exkl. moms)
6,785 kr
(inkl. moms)
Enheter | Per unit |
10 + | 5,428 kr |
- RS-artikelnummer:
- 190-5434P
- Tillv. art.nr:
- MAX6613MXK+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Minimizes Power Consumption with Ultra-Low 7.5μA (typ) Supply Current
Minimizes Board Space with Tiny SC70 Package
Extends Performance Range with Wide 1.8V to 5.5V Operating Range
Ideal for Broad Range of Thermal Management Applications
-55°C to +130°C Measurement Range
4.0°C Accuracy
Pin Compatible with LM20
Applications
Appliances
Battery Management
Cellular Phones
Disk Drives
Fax Machines
GPS Equipment
HVAC
Medical Instruments
Printers
Minimizes Board Space with Tiny SC70 Package
Extends Performance Range with Wide 1.8V to 5.5V Operating Range
Ideal for Broad Range of Thermal Management Applications
-55°C to +130°C Measurement Range
4.0°C Accuracy
Pin Compatible with LM20
Applications
Appliances
Battery Management
Cellular Phones
Disk Drives
Fax Machines
GPS Equipment
HVAC
Medical Instruments
Printers
Specifikationer
Attribute | Value |
---|---|
Sensor Function | Temperature |
Output Type | Analogue |
Accuracy | ±4°C |
Mounting Type | Surface Mount |
Pin Count | 5 |
Minimum Operating Temperature | -55 °C |
Operating Temperature Range | -55 to +130 °C |
Maximum Operating Temperature | +130 °C |
Minimum Operating Supply Voltage | 1.8 V |
Maximum Operating Supply Voltage | 5.5 V |
Package Type | SC-70 |
Length | 2.2mm |
Height | 1mm |
Width | 1.35mm |
Dimensions | 2.2 x 1.35 x 1mm |
Sensor Gain | -11.47mV/°C |
