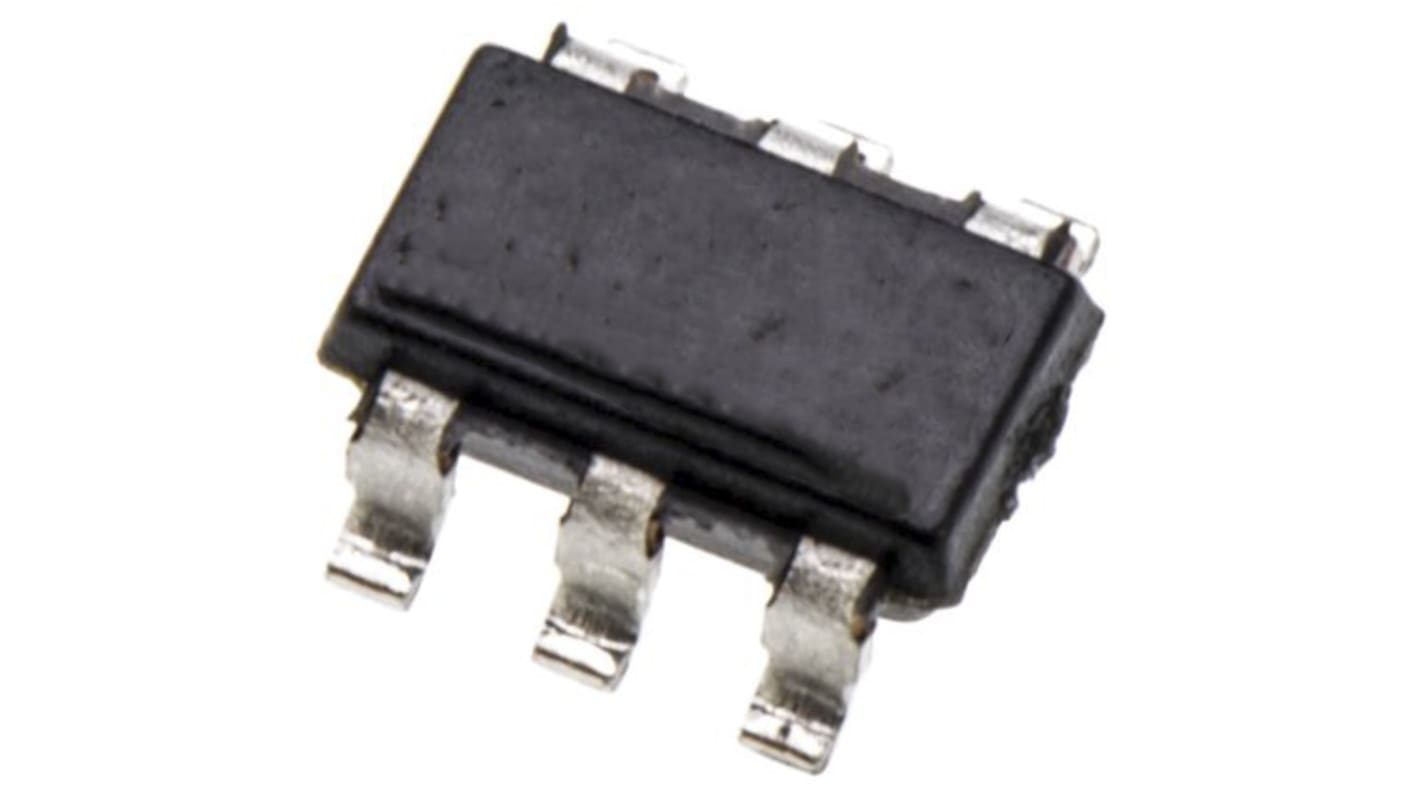

Maxim Integrated Temperature Sensor, Period/Frequency Output, Surface Mount, Serial-1 Wire, ±5°C, 6 Pins
- RS-artikelnummer:
- 190-5317
- Tillv. art.nr:
- MAX6577ZUT+T
- Tillverkare / varumärke:
- Maxim Integrated
105 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
12,366 kr
(exkl. moms)
15,458 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
5 + | 12,366 kr | 61,83 kr |
- RS-artikelnummer:
- 190-5317
- Tillv. art.nr:
- MAX6577ZUT+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
Simple Single-Wire Output
Two Output Types Available
Temperature to Period (μs) (MAX6576)
Temperature to Frequency (Hz) (MAX6577)
±0.8°C Accuracy at +25°C (±3°C max)
No External Components
Operates from +2.7V to +5.5V Supply Voltage
Low 140μA Typical Supply Current
Standard Operating Temperature Range: -40°C to +125°C
Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Temperature Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment
Two Output Types Available
Temperature to Period (μs) (MAX6576)
Temperature to Frequency (Hz) (MAX6577)
±0.8°C Accuracy at +25°C (±3°C max)
No External Components
Operates from +2.7V to +5.5V Supply Voltage
Low 140μA Typical Supply Current
Standard Operating Temperature Range: -40°C to +125°C
Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Temperature Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment
Specifikationer
Attribute | Value |
---|---|
Sensor Function | Temperature |
Output Type | Period/Frequency |
Interface Type | Serial-1 Wire |
Accuracy | ±5°C |
Mounting Type | Surface Mount |
Pin Count | 6 |
Operating Temperature Range | -40 to +125 °C |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 5.5 V |
Package Type | SOT-23 |
Length | 3mm |
Height | 1.3mm |
Width | 1.75mm |
Dimensions | 3 x 1.75 x 1.3mm |
