- RS-artikelnummer:
- 190-5292
- Tillv. art.nr:
- MAX6575LZUT+T
- Tillverkare / varumärke:
- Maxim Integrated
1195 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
12,118 kr
(exkl. moms)
15,148 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
5 + | 12,118 kr | 60,59 kr |
- RS-artikelnummer:
- 190-5292
- Tillv. art.nr:
- MAX6575LZUT+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
Simple Single-Wire Interface to μP or μC
Multidrop up to Eight Sensors on One Wire
±0.8°C Accuracy at +25°C (±3°C max)
Operates from +2.7V to +5.5V Supply Voltage
Low 150μA (typ) Supply Current
Standard Operating Temperature Range -40°C to +125°C

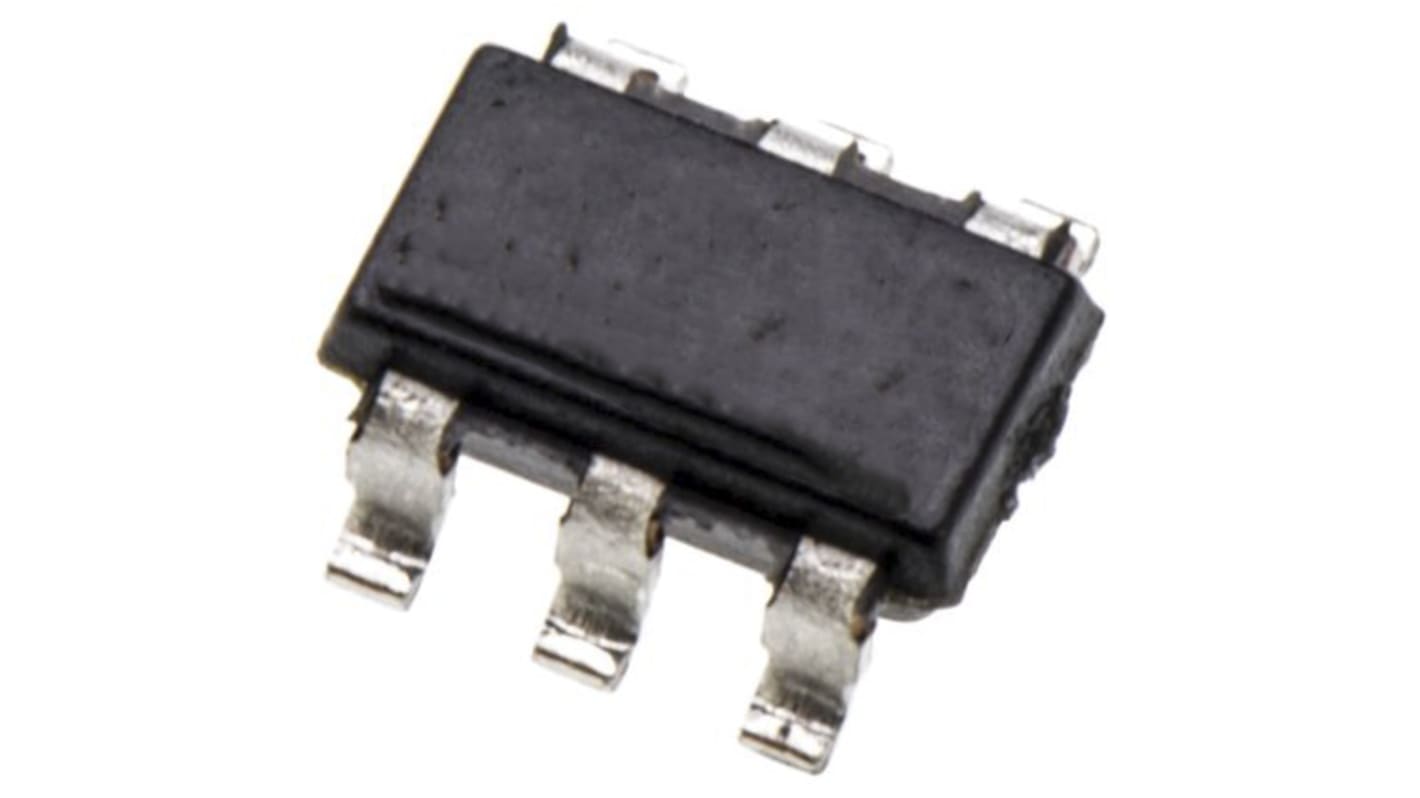

Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment
Multidrop up to Eight Sensors on One Wire
±0.8°C Accuracy at +25°C (±3°C max)
Operates from +2.7V to +5.5V Supply Voltage
Low 150μA (typ) Supply Current
Standard Operating Temperature Range -40°C to +125°C
Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment
Specifikationer
Attribute | Value |
---|---|
Sensor Function | Temperature |
Output Type | Open Drain |
Interface Type | Serial-1 Wire |
Accuracy | ±5°C |
Mounting Type | Surface Mount |
Pin Count | 6 |
Operating Temperature Range | -40 to +125 °C |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 5.5 V |
Package Type | SOT-23 |
Length | 3mm |
Height | 1.3mm |
Width | 1.75mm |
Dimensions | 3 x 1.75 x 1.3mm |
