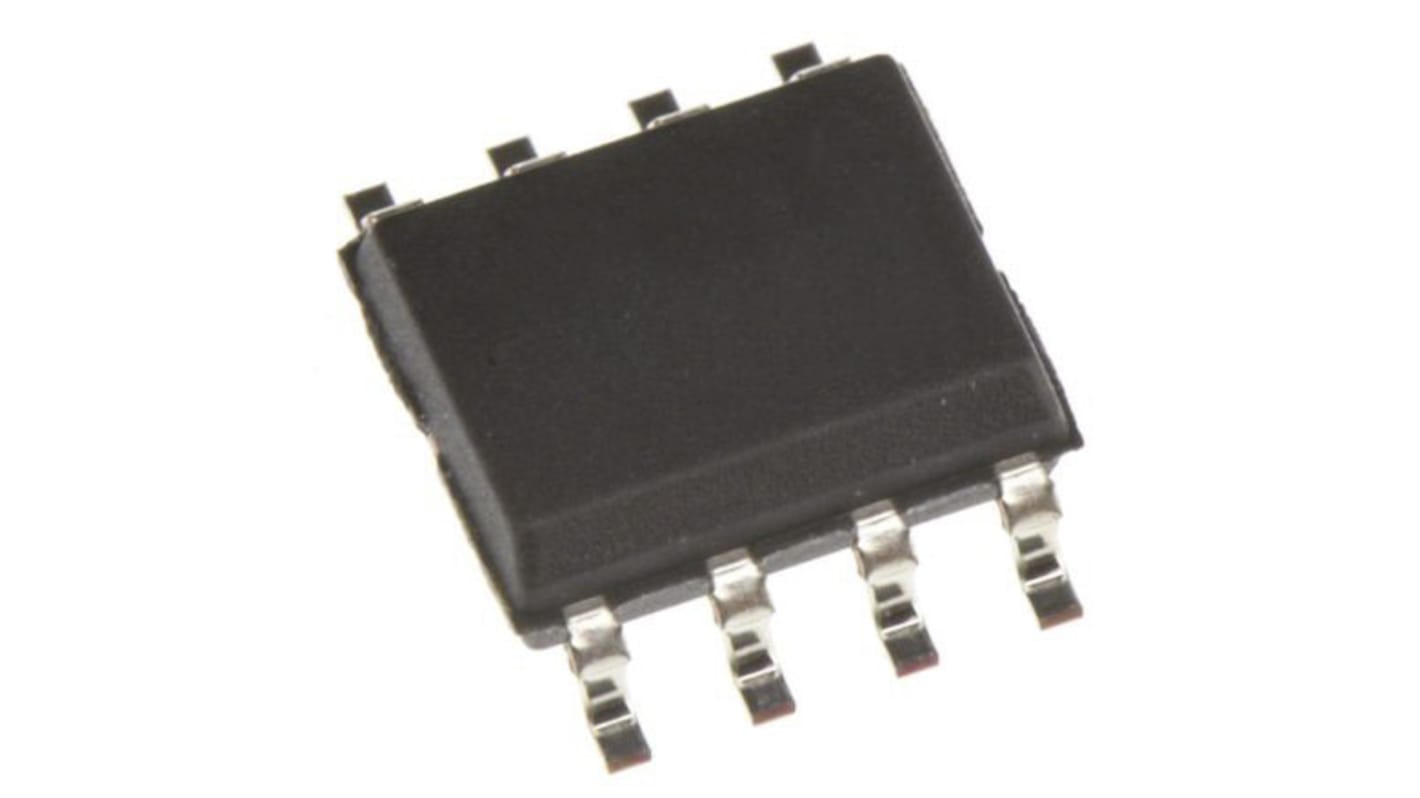

Maxim Integrated Digital Temperature Sensor, Open Drain Output, Surface Mount, Serial-2 Wire, ±2°C, 8 Pins
- RS-artikelnummer:
- 190-5285
- Tillv. art.nr:
- DS75LVS+
- Tillverkare / varumärke:
- Maxim Integrated
140 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
17,429 kr
(exkl. moms)
21,786 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
10 + | 17,429 kr | 174,29 kr |
- RS-artikelnummer:
- 190-5285
- Tillv. art.nr:
- DS75LVS+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Extend Performance Range with Low-Voltage, 1.7V to 3.7V Operating Range
Maximize System Accuracy in Broad Range of Thermal Management Applications
Measures Temperature from -55°C to +125°C (-67°F to +257°F)
±2°C Accuracy over a -25°C to 100°C Range
User-Configurable Resolution from 9 Bits (Default) to 12 Bits (0.5°C to 0.0625°C)
Easy Upgrade to LM75: Pin and Software Compatible
Simplify Distributed Temperature-Sensing Applications with Multidrop Capability
Up to Eight DS75LVs Can Operate on 2-Wire Bus
Increase Reliability and System Robustness
Internally Filtered Data Lines for Noise Immunity (50ns Deglitch)
Bus Timeout Feature Prevents Lockup on 2-Wire Interface
Minimize Power Consumption with Built-In Shutdown Mode
Flexible User-Defined Thermostatic Modes with Programmable Fault Tolerance
Applications
Any Thermally Sensitive System
Cellular Base Stations
Office Equipment
Personal Computers
Maximize System Accuracy in Broad Range of Thermal Management Applications
Measures Temperature from -55°C to +125°C (-67°F to +257°F)
±2°C Accuracy over a -25°C to 100°C Range
User-Configurable Resolution from 9 Bits (Default) to 12 Bits (0.5°C to 0.0625°C)
Easy Upgrade to LM75: Pin and Software Compatible
Simplify Distributed Temperature-Sensing Applications with Multidrop Capability
Up to Eight DS75LVs Can Operate on 2-Wire Bus
Increase Reliability and System Robustness
Internally Filtered Data Lines for Noise Immunity (50ns Deglitch)
Bus Timeout Feature Prevents Lockup on 2-Wire Interface
Minimize Power Consumption with Built-In Shutdown Mode
Flexible User-Defined Thermostatic Modes with Programmable Fault Tolerance
Applications
Any Thermally Sensitive System
Cellular Base Stations
Office Equipment
Personal Computers
Specifikationer
Attribute | Value |
---|---|
Sensor Function | Temperature |
Output Type | Open Drain |
Interface Type | Serial-2 Wire |
Accuracy | ±2°C |
Mounting Type | Surface Mount |
Pin Count | 8 |
Operating Temperature Range | -55 to +125 °C |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +125 °C |
Minimum Operating Supply Voltage | 1.7 V |
Maximum Operating Supply Voltage | 3.7 V |
Package Type | SO |
Length | 5mm |
Height | 1.5mm |
Width | 4mm |
Resolution | 12 bit |
Dimensions | 5 x 4 x 1.5mm |
