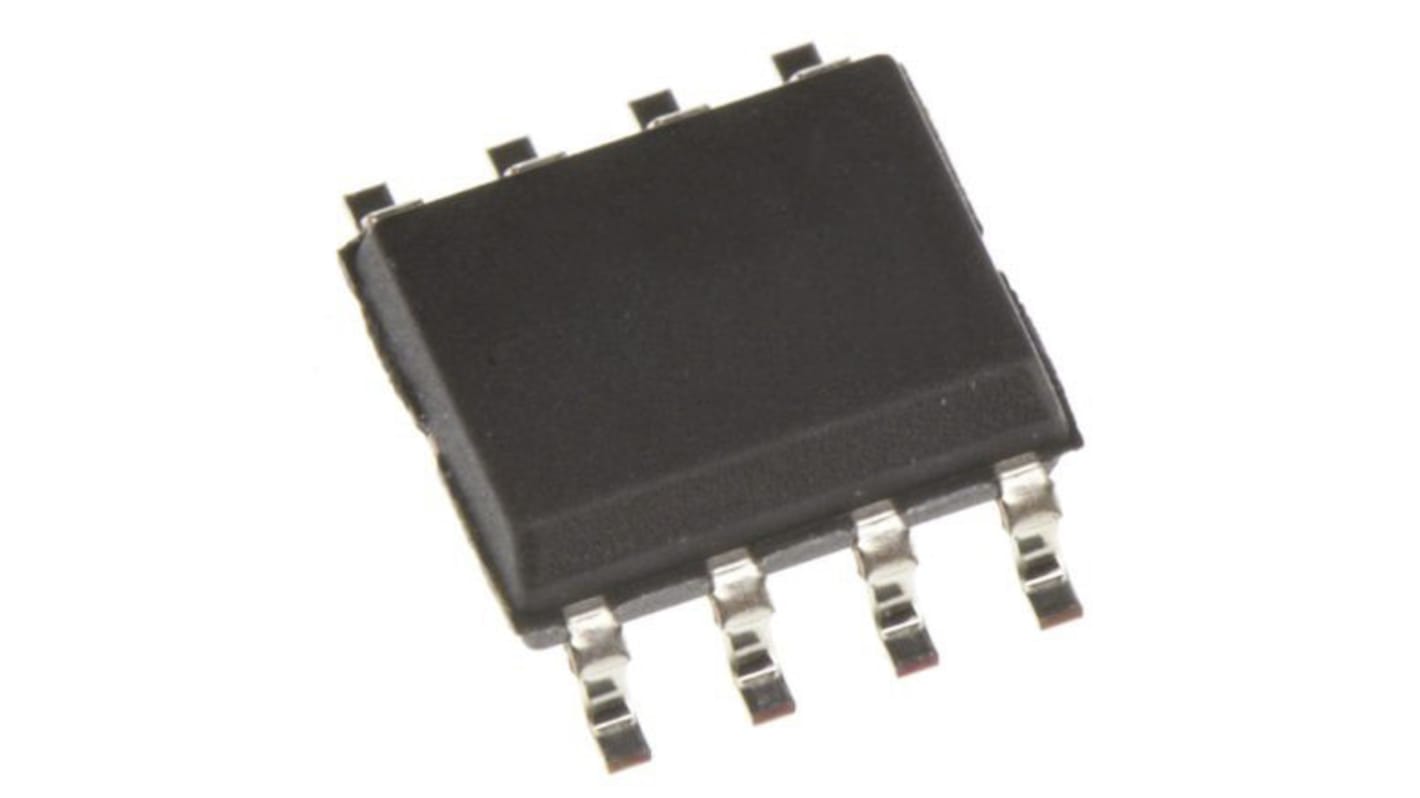

Maxim Integrated Temperature Sensor, Open Drain Output, Surface Mount, Serial-I2C, SMBus, ±2.5°C, 8 Pins

RS-artikelnummer:: 190-5196
Tillv. art.nr:: MAX6635MSA+
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated Temperature Sensor, Open Drain Output, Surface Mount, Serial-I2C, SMBus, ±2.5°C, 8 Pins

230 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett paket med 5)

47,176 kr

(exkl. moms)

58,97 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
5 - 5	47,176 kr	235,88 kr
10 - 20	42,408 kr	212,04 kr
25 - 95	40,256 kr	201,28 kr
100 - 495	34,778 kr	173,89 kr
500 +	29,788 kr	148,94 kr

RS-artikelnummer:: 190-5196
Tillv. art.nr:: MAX6635MSA+
Tillverkare / varumärke:: Maxim Integrated

Datablad

MAX6635MSA+ - Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: TH

Produktdetaljer

+3V to +5.5V Supply Range
Accuracy
±1°C max (0°C to +50°C)
±1.5°C max (-20°C to +85°C)
±2.5°C max (-40°C to +125°C)
±2.5°C typ (+150°C)
User-Programmable Temperature Thresholds (MAX6634/MAX6635)
User-Configurable Alarm Output(s) (MAX6634/MAX6635)
Ability to Respond to SMBus/I²C-Compatible Alert Response Address (MAX6634/MAX6635)
Active-Low OVERT Output for System Shutdown (MAX6635)
Multiple Devices per Bus
16 devices (MAX6633)
8 devices (MAX6634)
4 devices (MAX6635)
Applications
Battery-Temperature Alarms
PC Temperature Control

Specifikationer

Attribute	Value
Sensor Function	Temperature
Output Type	Open Drain
Interface Type	Serial-I2C, SMBus
Accuracy	±2.5°C
Mounting Type	Surface Mount
Pin Count	8
Operating Temperature Range	-55 to +150 °C
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+150 °C
Minimum Operating Supply Voltage	3 V
Maximum Operating Supply Voltage	5.5 V
Package Type	SO
Length	5mm
Height	1.5mm
Width	4mm
Dimensions	5 x 4 x 1.5mm
Resolution	0.0625 °C
