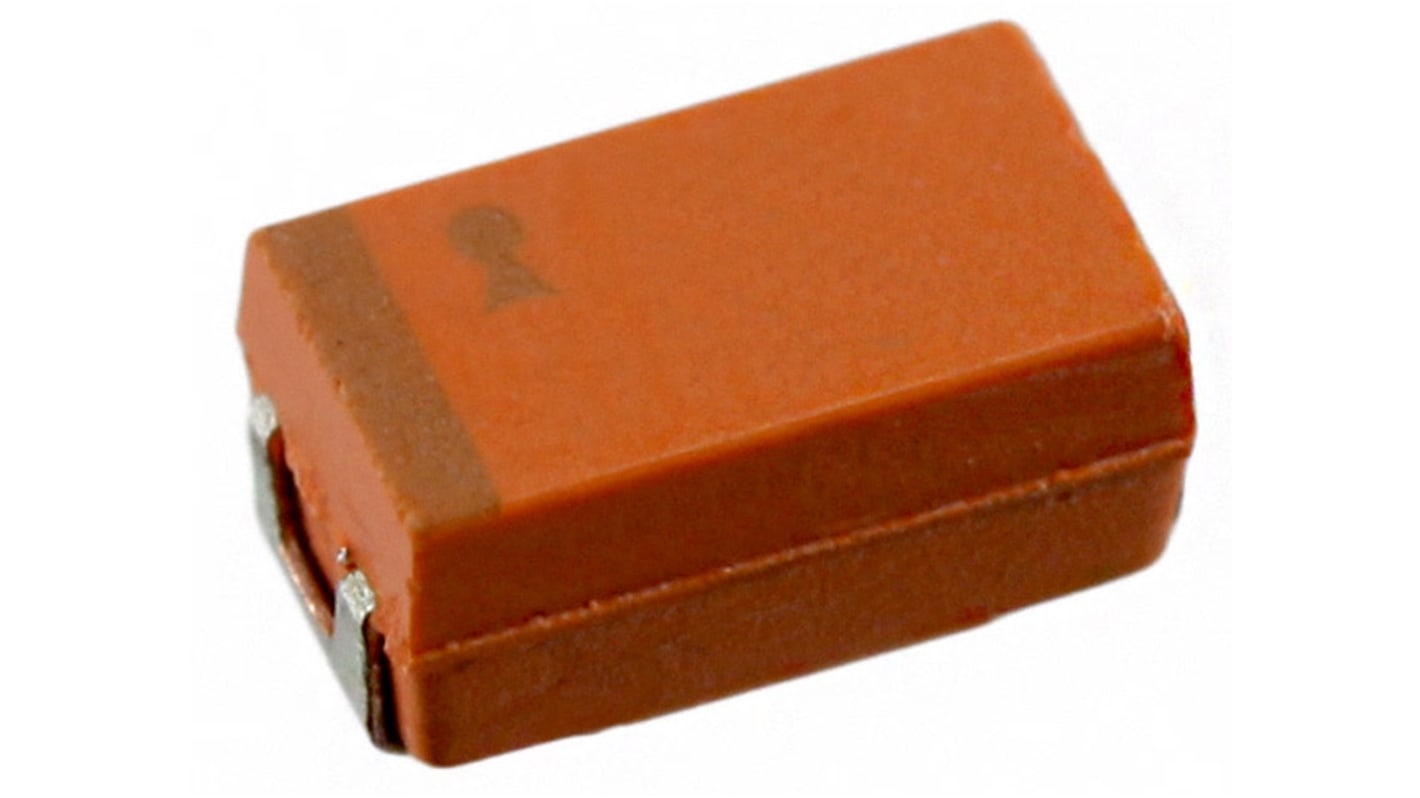

AVX 10μF Tantalum Capacitor 20V dc, TAJ Series
- RS-artikelnummer:
- 136-0263
- Tillv. art.nr:
- TAJC106K020RNJ
- Tillverkare / varumärke:
- AVX
500 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 500)
2,122 kr
(exkl. moms)
2,652 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 500 - 2000 | 2,122 kr | 1 061,00 kr |
| 2500 + | 2,003 kr | 1 001,50 kr |
- RS-artikelnummer:
- 136-0263
- Tillv. art.nr:
- TAJC106K020RNJ
- Tillverkare / varumärke:
- AVX
Lagstiftning och ursprungsland
Produktdetaljer
TAJ Standard Series 20 to 50Vdc
TAJ Series are General Purpose SMT Chip Tantalum Capacitors
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
Specifikationer
Attribute | Value |
|---|---|
| Technology | Tantalum |
| Capacitance | 10µF |
| Voltage | 20V dc |
| Mounting Type | Surface Mount |
| Package/Case | 6032-28 |
| Equivalent Series Resistance | 1.2Ω |
| Automotive Standard | AEC-Q200 |
| Lead Pitch | 2.9mm |
| Tolerance | ±10% |
| Length | 6mm |
| Depth | 3.2mm |
| Height | 2.6mm |
| Dimensions | 6 x 3.2 x 2.6mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 2 μA |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 26V |
| Tolerance Plus | +10% |
| Dissipation Factor | 6% |
| Terminal Type | SMT |
| Tolerance Minus | -10% |
| Polarised | Polar |
