- RS-artikelnummer:
- 917-4226
- Tillv. art.nr:
- SKEGLAA010
- Tillverkare / varumärke:
- Alps Alpine
I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 10)
21,993 kr
(exkl. moms)
27,491 kr
(inkl. moms)
Enheter | Per unit | Per Bag* |
10 - 40 | 21,993 kr | 219,93 kr |
50 - 90 | 18,343 kr | 183,43 kr |
100 - 240 | 17,164 kr | 171,64 kr |
250 - 490 | 15,324 kr | 153,24 kr |
500 + | 13,494 kr | 134,94 kr |
- RS-artikelnummer:
- 917-4226
- Tillv. art.nr:
- SKEGLAA010
- Tillverkare / varumärke:
- Alps Alpine
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

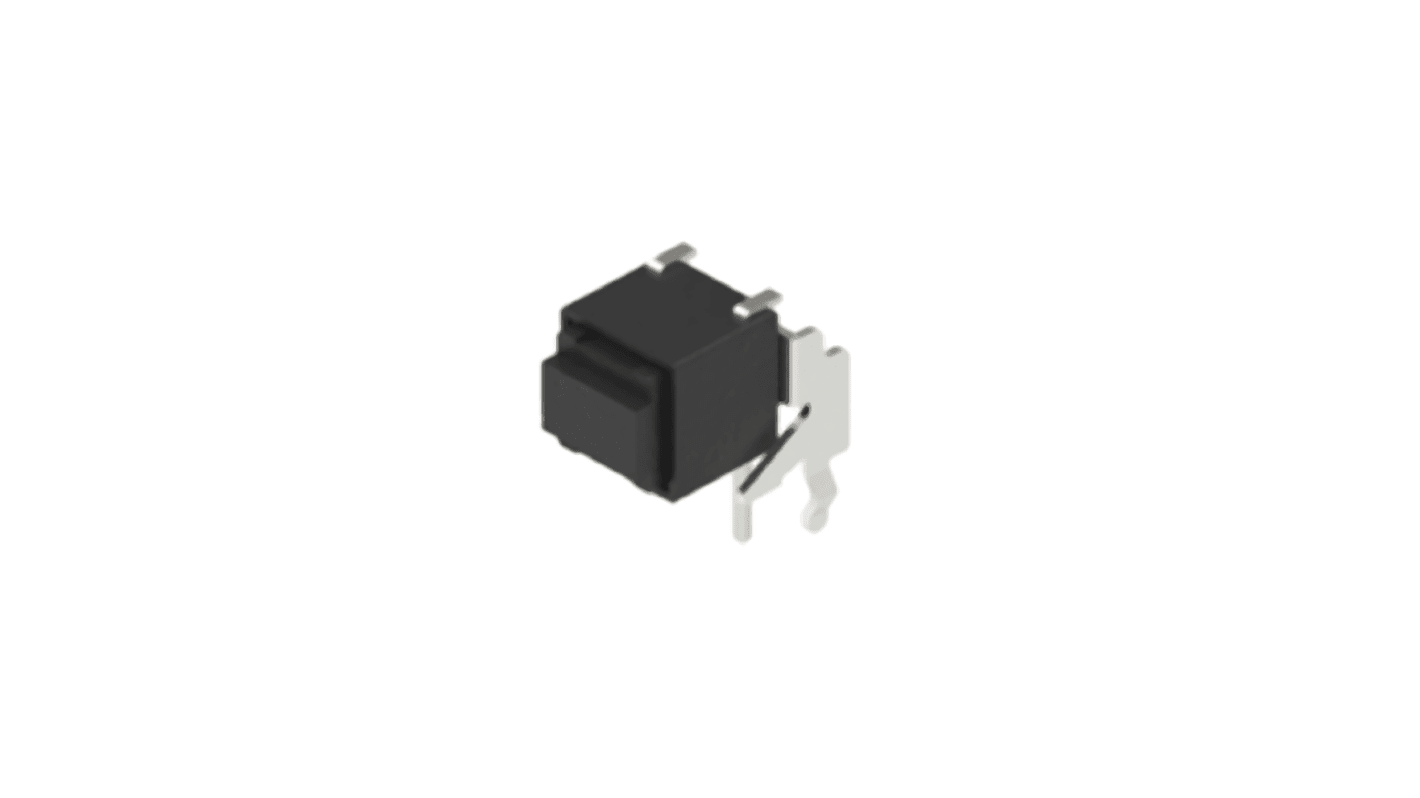

Alps SKEG Series Tactile Switch
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Tactile
Specifikationer
Attribute | Value |
---|---|
Contact Configuration | SPST |
Terminal Type | Pc Pin |
Switch Operation | Momentary |
Actuator Length | 1.5mm |
Actuator Colour | Black |
Actuator Type | Cap |
Length | 6mm |
Width | 6mm |
Dimensions | 6 x 6mm |
Mounting Type | Snap-In |
Contact Current Rating | 5 mA |
Operating Force | 0.78 N |
Voltage Rating | 12V dc |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +70°C |
Maximum Operating Temperature | +70°C |
