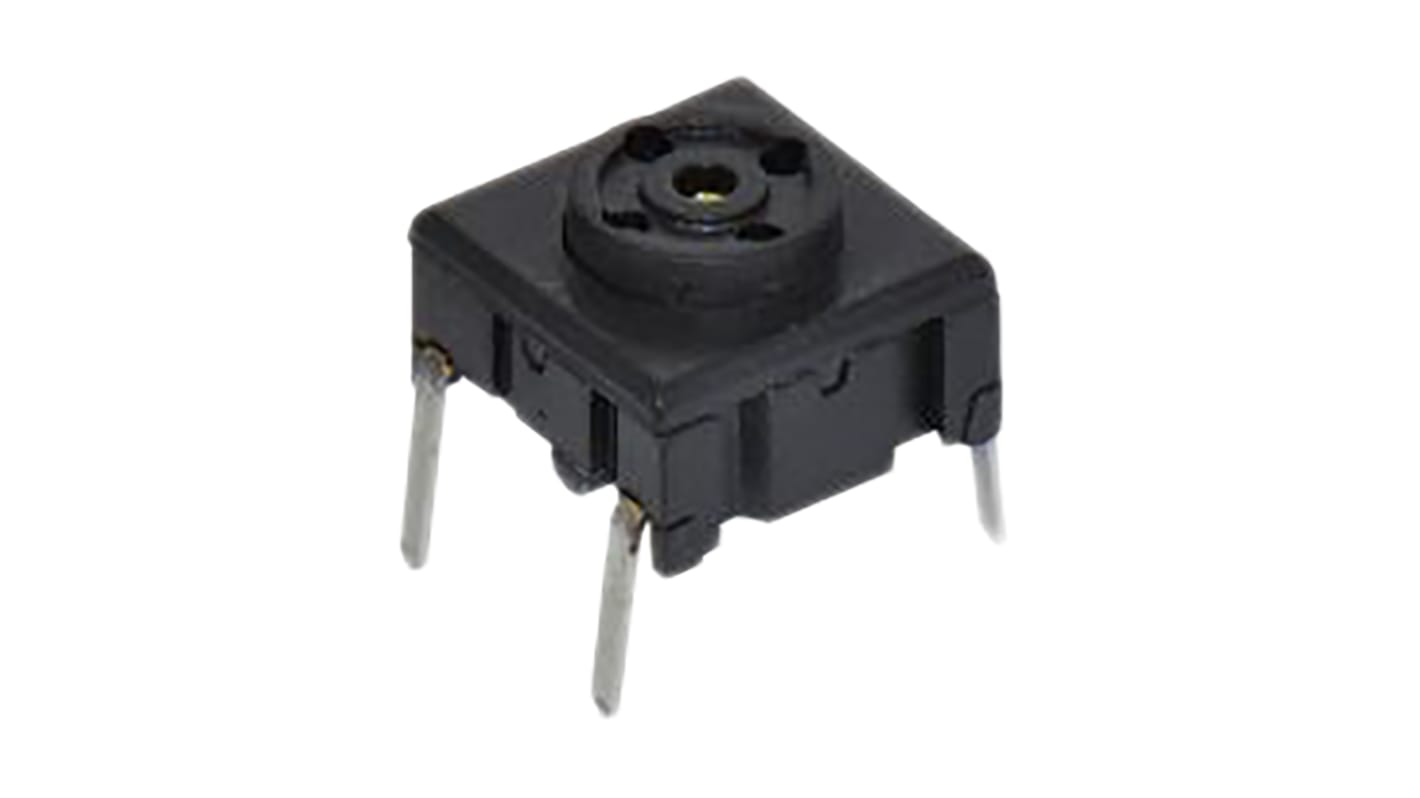

IP67 Black Flat Button Tactile Switch, SPST 50 mA 6.5 (Dia.)mm PCB
- RS-artikelnummer:
- 912-0368
- Tillv. art.nr:
- RA3ETH9-10-4
- Tillverkare / varumärke:
- MEC
Tillfälligt slut i lager – restorder för leverans 2024-05-28
Lagt till varukorgen
Pris (ex. moms) Varje
28,55 kr
(exkl. moms)
35,69 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 28,55 kr |
| 10 - 24 | 25,60 kr |
| 25 - 49 | 23,52 kr |
| 50 - 99 | 21,44 kr |
| 100 + | 20,02 kr |
- RS-artikelnummer:
- 912-0368
- Tillv. art.nr:
- RA3ETH9-10-4
- Tillverkare / varumärke:
- MEC
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DK
Produktdetaljer
Multimec® 3C/3E Switches
SPNO momentary action
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
Specifikationer
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 6.5 (Dia.)mm |
| Actuator Colour | Black |
| Actuator Type | Flat Button |
| Length | 12.5mm |
| Width | 6.4mm |
| Dimensions | 12.5 x 6.4mm |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Height | 10.4mm |
| Voltage Rating | 24V dc |
| Operating Force | 3.5 N |
| Operating Temperature Range | -40 → +160°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +160°C |
| Mechanical Life | 10000000Operations |
