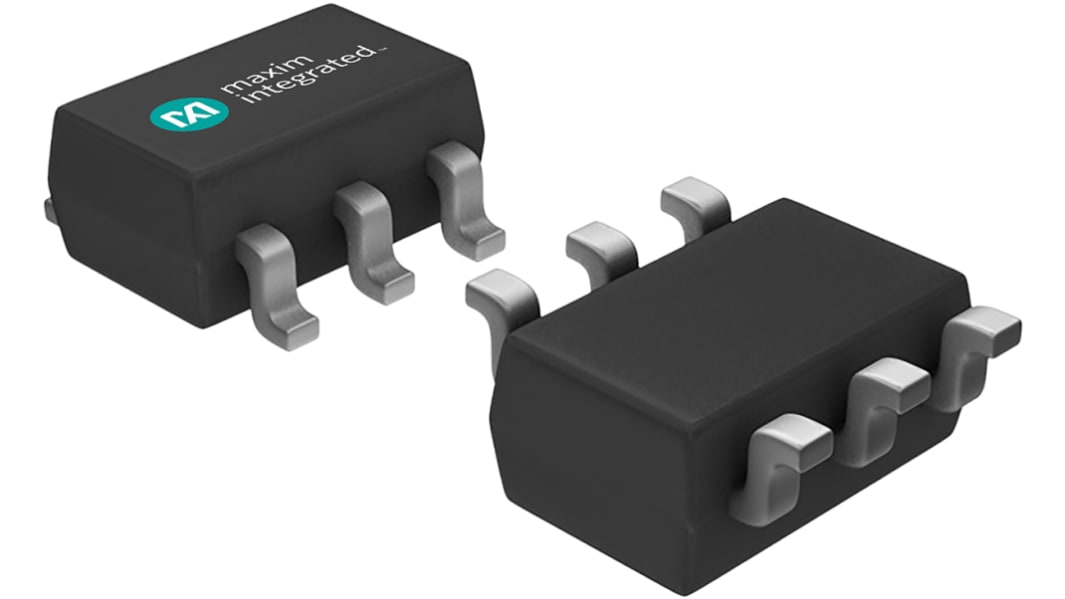

Maxim Integrated Switching Regulator, Surface Mount, -0.3 → 0.3V dc Output Voltage, 1.5 → 5.5V dc Input

RS-artikelnummer:: 190-8168
Tillv. art.nr:: MAX1721EUT+T
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated Switching Regulator, Surface Mount, -0.3 → 0.3V dc Output Voltage, 1.5 → 5.5V dc Input

1350 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett paket med 5)

23,578 kr

(exkl. moms)

29,472 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
5 - 5	23,578 kr	117,89 kr
10 - 20	21,182 kr	105,91 kr
25 - 95	20,006 kr	100,03 kr
100 - 245	15,992 kr	79,96 kr
250 +	13,974 kr	69,87 kr

RS-artikelnummer:: 190-8168
Tillv. art.nr:: MAX1721EUT+T
Tillverkare / varumärke:: Maxim Integrated

Datablad

Datasheet - MAX1721EUT+T

Lagstiftning och ursprungsland

COO (Country of Origin):: TH

Produktdetaljer

1nA Logic-Controlled Shutdown
6-Pin SOT23 Package
99.9% Voltage Conversion Efficiency
50μA Quiescent Current (MAX1720)
+1.5V to +5.5V Input Voltage Range
25mA Output Current
Requires Only Two 1μF Capacitors (MAX1719/MAX1721)
Applications
Battery-Powered Applications
GaAs PA Bias Supply
Handy-Terminals, PDAs
Local Negative Supply from a Positive Supply
Small LCD Panels

Specifikationer

Attribute	Value
Output Voltage	-0.3 → 0.3V dc
Output Current	25mA
Input Voltage	1.5 → 5.5V dc
Mounting Type	Surface Mount
Number of Outputs	1
Efficiency	99.9 (Typ.)%
Maximum Temperature	+85°C
Minimum Temperature	-40°C
Application	Battery-Operated Equipment, GaAs PA Bias Supply, Handy-Terminals, Local Negative Supply from a Positive Supply, PDAs, Small LCD Panels
Width	1.75mm
Maximum Input Current	650µA
Length	3mm
Depth	1.3mm

RS-artikelnummer:: 190-8168
Tillv. art.nr:: MAX1721EUT+T
Tillverkare / varumärke:: Maxim Integrated

Datasheet - MAX1721EUT+T
