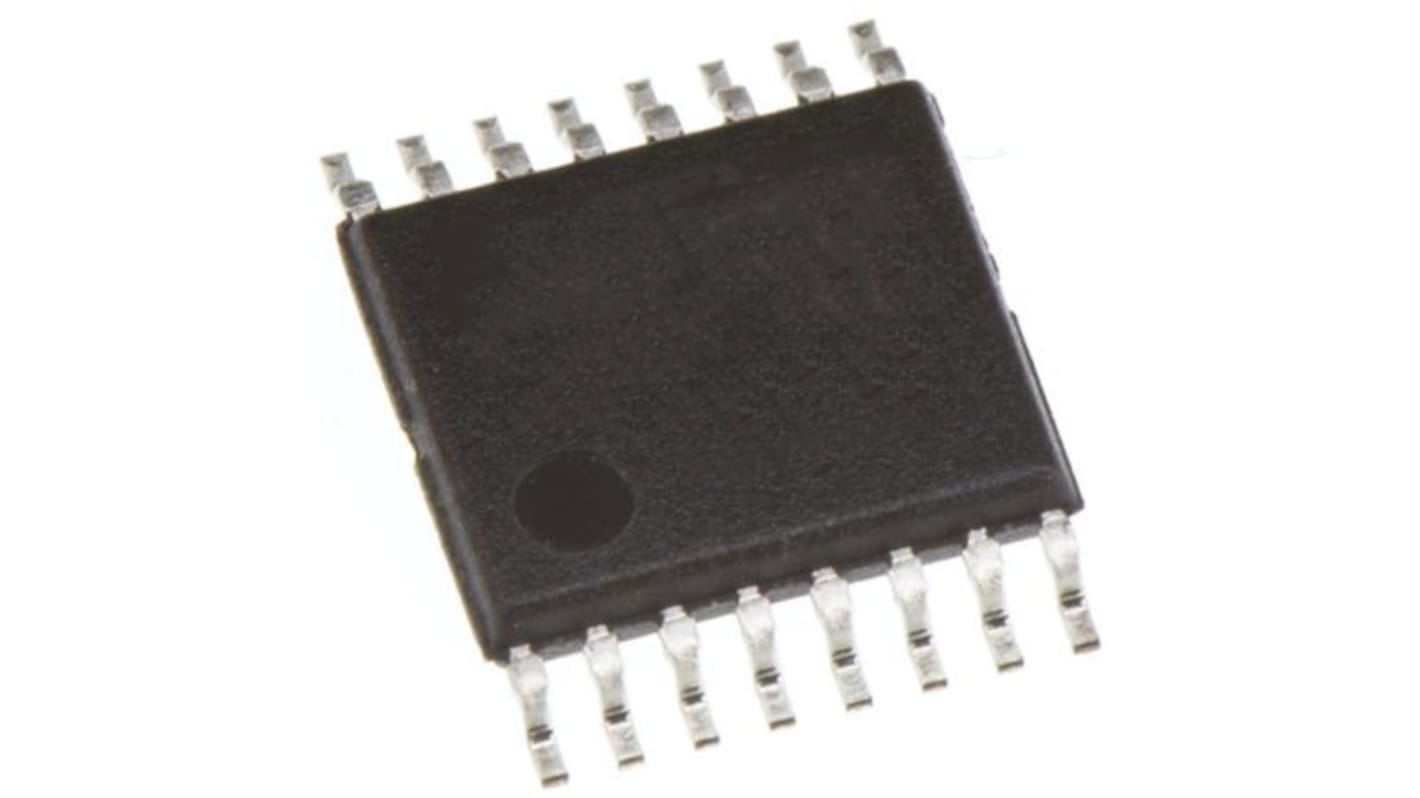

Maxim Integrated Switching Regulator, Surface Mount, 7.15 → 7.6V dc Output Voltage, 4.5 → 40V dc Input
- RS-artikelnummer:
- 190-7937P
- Tillv. art.nr:
- MAX15005AAUE+
- Tillverkare / varumärke:
- Maxim Integrated
35 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i ett rör)
37,972 kr
(exkl. moms)
47,465 kr
(inkl. moms)
| Enheter | Per unit |
| 10 - 20 | 37,972 kr |
| 25 - 95 | 35,71 kr |
| 100 - 245 | 29,522 kr |
| 250 + | 26,416 kr |
- RS-artikelnummer:
- 190-7937P
- Tillv. art.nr:
- MAX15005AAUE+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Wide Supply Voltage Range Meets Automotive Power-Supply Operating Requirement Including "Cold Crank" Conditions
4.5V to 40V Operating Input Voltage Range (Can Operate at Lower Voltage After Startup if Input is Bootstrapped to a Boosted Output)
Control Architecture Offers Excellent Performance While Simplifying the Design
Current-Mode Control
300mV, 5% Accurate Current-Limit Threshold Voltage
Programmable Slope Compensation
50% (MAX15004) or Adjustable (MAX15005) Maximum Duty Cycle
Accurate, Adjustable Switching Frequency and Synchronization Avoids Interference with Sensitive Radio Bands
Switching Frequency Adjustable from 15kHz to 500kHz (1MHz for the MAX15005A/B)
RC Programmable 4% Accurate Switching Frequency
External Frequency Synchronization
Built-In Protection Capability for Improved System Reliability
Cycle-by-Cycle and Hiccup Current-Limit Protection
Overvoltage and Thermal-Shutdown Protection
-40°C to +125°C Automotive Temperature Range
Applications
Automotive
Isolated Flyback, Forward, Nonisolated SEPIC, Boost Converters
Vacuum Fluorescent Display (VFD) Power Supply
4.5V to 40V Operating Input Voltage Range (Can Operate at Lower Voltage After Startup if Input is Bootstrapped to a Boosted Output)
Control Architecture Offers Excellent Performance While Simplifying the Design
Current-Mode Control
300mV, 5% Accurate Current-Limit Threshold Voltage
Programmable Slope Compensation
50% (MAX15004) or Adjustable (MAX15005) Maximum Duty Cycle
Accurate, Adjustable Switching Frequency and Synchronization Avoids Interference with Sensitive Radio Bands
Switching Frequency Adjustable from 15kHz to 500kHz (1MHz for the MAX15005A/B)
RC Programmable 4% Accurate Switching Frequency
External Frequency Synchronization
Built-In Protection Capability for Improved System Reliability
Cycle-by-Cycle and Hiccup Current-Limit Protection
Overvoltage and Thermal-Shutdown Protection
-40°C to +125°C Automotive Temperature Range
Applications
Automotive
Isolated Flyback, Forward, Nonisolated SEPIC, Boost Converters
Vacuum Fluorescent Display (VFD) Power Supply
Specifikationer
Attribute | Value |
|---|---|
| Output Voltage | 7.15 → 7.6V dc |
| Output Current | 100mA |
| Input Voltage | 4.5 → 40V dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +125°C |
| Length | 0.201mm |
| Width | 0.177mm |
| Protection Features | Cycle-By-Cycle, Hiccup Current Limit, Output Overvoltage Protection, Thermal Shutdown |
| Application | Automotive, Boost Converters, Forward, Isolated Flyback, Nonisolated SEPIC, Vacuum Fluorescent Display (VFD) Power Supply |
| Depth | 0.037mm |
| Power Signal Conversion Type | DC-DC |
| Switching Frequency Range | 500kHz |
- RS-artikelnummer:
- 190-7937P
- Tillv. art.nr:
- MAX15005AAUE+
- Tillverkare / varumärke:
- Maxim Integrated
