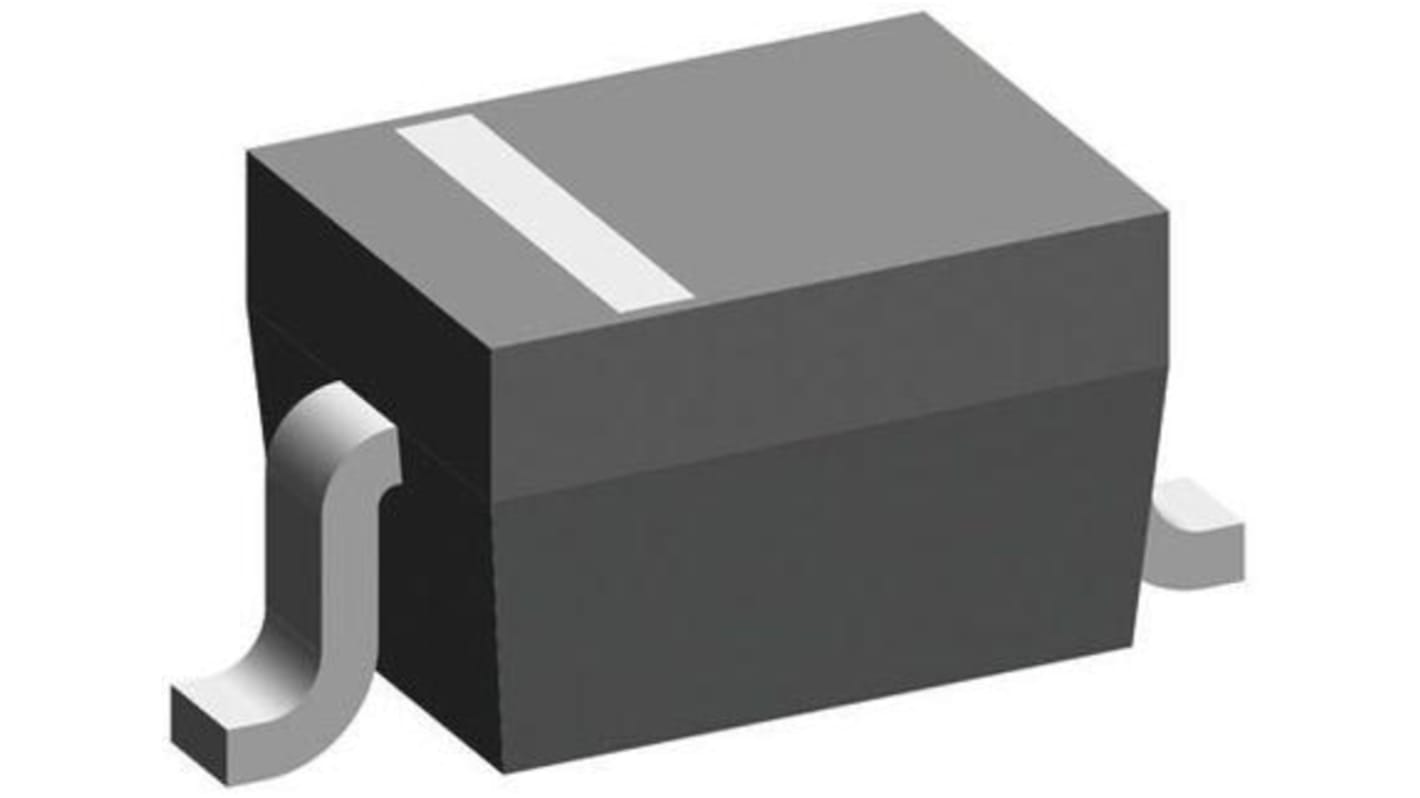

Vishay 1N4148WS-E3-08 Switching Diode, 150mA 75V, 2-Pin SOD-323

  • RS-artikelnummer 918-9708
  • Tillv. 1N4148WS-E3-08
  • Tillverkare / varumärke Vishay
Lagstiftning och ursprungsland
COO (Country of Origin): CN

Glass Passivated Junction Fast Switching Plastic Rectifier

• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106

Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.

Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end

Diodes and Rectifiers, Vishay Semiconductor

Attribute Value
Maximum Forward Current 150mA
Diode Configuration Single
Number of Elements per Chip 1
Mounting Type Surface Mount
Maximum Reverse Voltage 75V
Package Type SOD-323
Diode Technology Silicon Junction
Pin Count 2
Maximum Forward Voltage Drop 1.2V
Maximum Diode Capacitance 4pF
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
Length 1.95mm
Width 1.5mm
Height 1.05mm
Dimensions 1.95 x 1.5 x 1.05mm
105000 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (On a Reel of 3000)
0,334 kr
(exkl. moms)
0,418 kr
(inkl. moms)
Per unit
Per Reel*
3000 - 6000
0,334 kr
1 002,00 kr
9000 +
0,223 kr
669,00 kr
