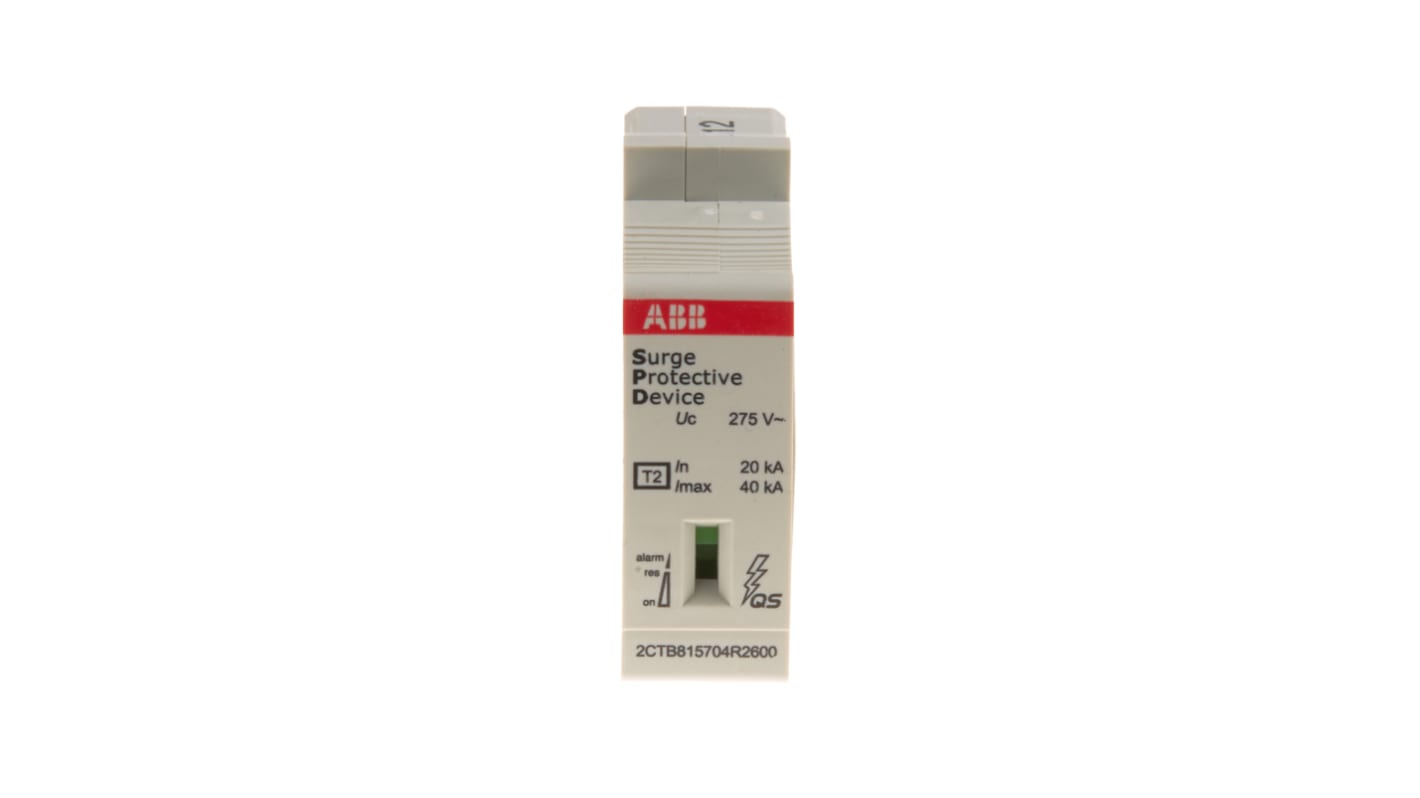

ABB, OVR Surge Protection Device 275 V Maximum Voltage Rating 40kA Maximum Surge Current Surge Protection Device
- RS-artikelnummer:
- 175-2600
- Tillv. art.nr:
- 2CTB815704R2600 OVR T2 40-275s C QS
- Tillverkare / varumärke:
- ABB
6 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
907,72 kr
(exkl. moms)
1 134,65 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 907,72 kr |
| 10 - 19 | 818,77 kr |
| 20 - 39 | 744,25 kr |
| 40 - 79 | 654,31 kr |
| 80 + | 589,10 kr |
- RS-artikelnummer:
- 175-2600
- Tillv. art.nr:
- 2CTB815704R2600 OVR T2 40-275s C QS
- Tillverkare / varumärke:
- ABB
Lagstiftning och ursprungsland
Produktdetaljer
ABB Surge Suppressor Unit
The ABB OVR series surge suppressor unit is a protective device to ensure that electrical equipment is not damaged by a sudden voltage spike. It has an electrical rating of 275V and 40kA. Type 2 surge protective devices are designed to protect electric installations and sensitive equipment against indirect surges and ensure a low protection level (Up). They are characterized by their capacity to safely discharge current with 8/20μs waveform.
Features and Benefits
• Back up protection up to 160A fuse or 125A Mcb
• DIN rail mount
• Has 1 protected lines
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode L-N/L-PE
• Safety reserve system
• Voltage protection level at L-N is 1.4kV/ L-PE is 1.4kV
• DIN rail mount
• Has 1 protected lines
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode L-N/L-PE
• Safety reserve system
• Voltage protection level at L-N is 1.4kV/ L-PE is 1.4kV
Applications
• To protect the systems against transient overvoltage (lightning)
Certifications
• IEC 61643-11/EN 61643-11
Specifikationer
Attribute | Value |
|---|---|
| Suppressor Type | Surge Protection Device |
| Maximum Voltage Rating | 275 V |
| Mounting Type | DIN Rail |
| Maximum Surge Current | 40kA |
| Series | OVR |
| Length | 17.6mm |
| Depth | 67mm |
| Height | 57mm |
| Dimensions | 17.6 x 67 x 57mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
