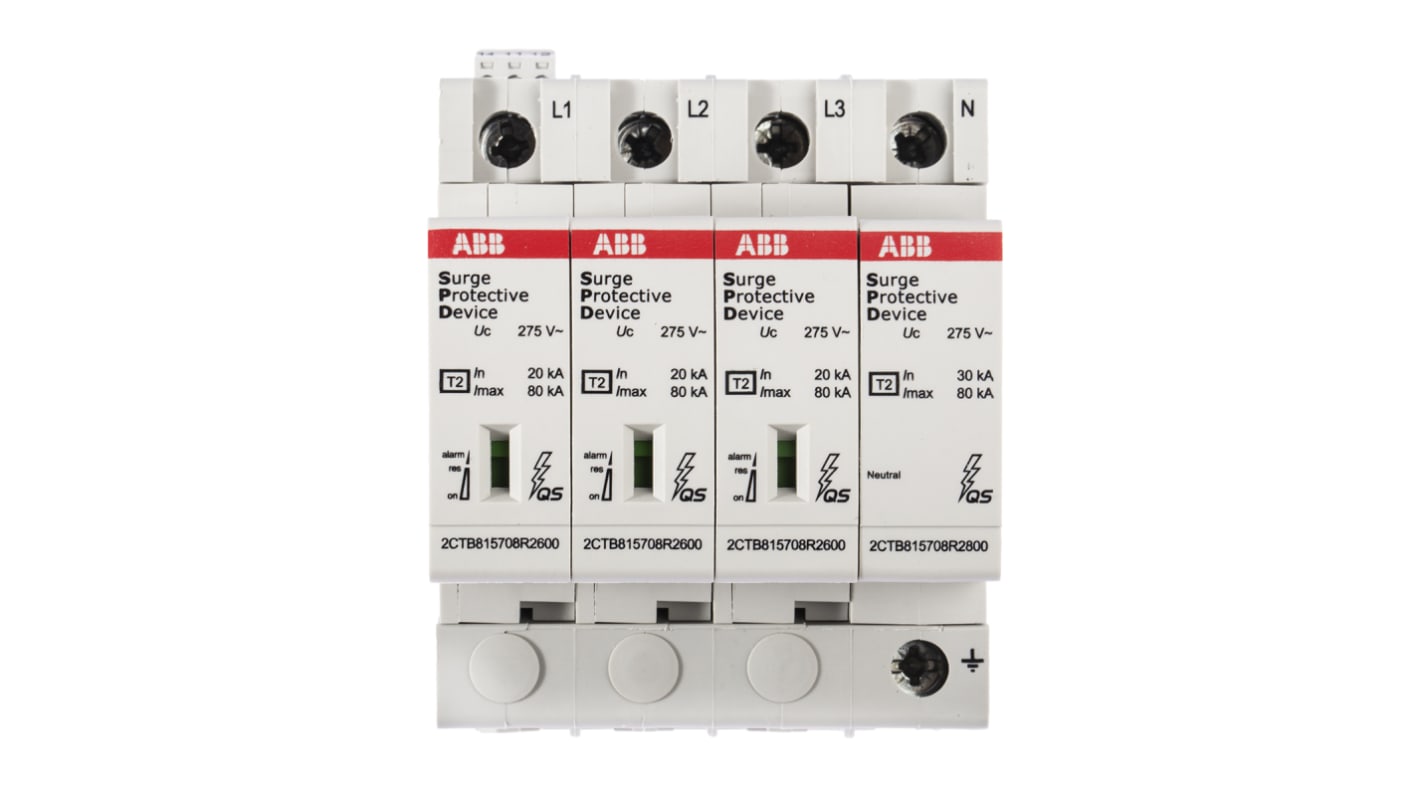

ABB, OVR Surge Protection Device 275 V Maximum Voltage Rating 80kA Maximum Surge Current Surge Protection Device
- RS-artikelnummer:
- 175-2597
- Tillv. art.nr:
- 2CTB815708R0800 OVR T2 3N 80-275s P TS QS
- Tillverkare / varumärke:
- ABB
Tillfälligt slut i lager – restorder för leverans 2024-06-18
Lagt till varukorgen
Pris (ex. moms) Varje
5 561,75 kr
(exkl. moms)
6 952,19 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 1 | 5 561,75 kr |
| 2 - 4 | 5 339,28 kr |
| 5 + | 5 061,25 kr |
- RS-artikelnummer:
- 175-2597
- Tillv. art.nr:
- 2CTB815708R0800 OVR T2 3N 80-275s P TS QS
- Tillverkare / varumärke:
- ABB
Lagstiftning och ursprungsland
Produktdetaljer
ABB Surge Suppressor Unit
The ABB OVR series surge suppressor unit is a protective device to ensure that electrical equipment is not damaged by a sudden voltage spike. It has an electrical rating of 275V and 80kA. Type 2 surge protective devices are designed to protect electric installations and sensitive equipment against indirect surges and ensure a low protection level (Up). They are characterized by their capacity to safely discharge current with 8/20μs waveform.
Features and Benefits
• Back up protection up to 160A fuse or 125A Mcb
• DIN rail mount
• Has 4 protected lines
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode L-N/L-PE/N-PE
• Safety reserve system
• Voltage protection level at L-N is 1.4kV/ L-PE is 1.5kV/ N-PE is 1.4kV
• DIN rail mount
• Has 4 protected lines
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode L-N/L-PE/N-PE
• Safety reserve system
• Voltage protection level at L-N is 1.4kV/ L-PE is 1.5kV/ N-PE is 1.4kV
Applications
• To protect the systems against transient overvoltage (lightning)
Certifications
• IEC 61643-11/EN 61643-11
Specifikationer
Attribute | Value |
|---|---|
| Suppressor Type | Surge Protection Device |
| Maximum Voltage Rating | 275 V |
| Mounting Type | DIN Rail |
| Maximum Surge Current | 80kA |
| Series | OVR |
| Length | 71.2mm |
| Depth | 76.7mm |
| Height | 95.8mm |
| Dimensions | 71.2 x 76.7 x 95.8mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
