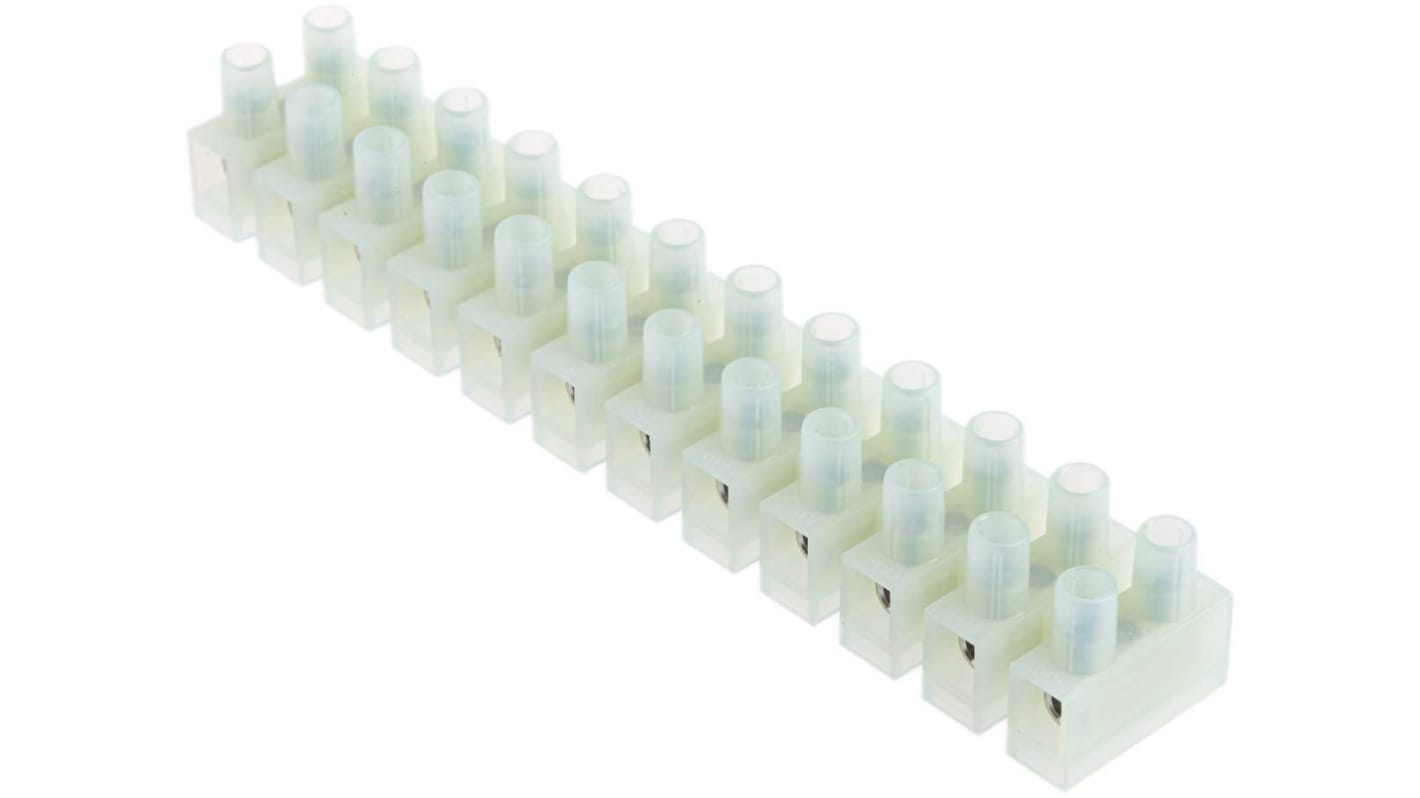

RS PRO, 12 Way, 2.5 mm², Nylon Non-Fused Terminal Block, 400 V

  • RS-artikelnummer 464-9738
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IT
Produktdetaljer

Nylon 6.6 Terminal Block With Wire Protection Leaf

From RS PRO, this non-fused terminal block presents a reliable and cost-effective solution to wire-to-wire connections. The terminal block is direct-mount and so does not require the use of a DIN Rail to mount. Instead, it features two mounting screws that allow mounting to any surface. This nylon terminal block can easily be cut to a required length, allowing for a highly customizable connector solution.

This RS PRO terminal block also features metallic wire protection strips that isolate the conductor from the terminal screw, for increased safety and reliability.

Features and Benefits

• M3 x 5 mm screw terminals
• Wire protection leaf
• Nylon 6.6 housing with nickel plated brass clamps

Applications

Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.

Whether for device connection to printed circuit boards or for wire-to-wire extensions, terminal blocks provide a straight forward and dependable connection solution. These non-fused terminal blocks are often used in;

• Connecting lighting to switches
• Connecting wiring to a ground
• HVAC Systems
• Power Supplies

FAQs

Q: Are these terminal blocks suitable for all environments?
A: Though terminal blocks are highly versatile, they are not the most secure of connectors, and may not be suitable for high vibration environments or applications where impact shock is a possibility.

Why RS PRO?

RS PRO strives to give you reliable parts at competitive prices. With in-house experts testing all of our RS PRO branded products, we're confident we'll satisfy your demand for quality and dependability.

RS PRO has an extensive range of electrical connector components. Whether you're operating in an industrial environment or domestic maintenance, RS PRO is with you every step of the way.

Specifikationer
Attribute Value
Number of Ways 12
Fused No
Mounting Type Through Hole
Pitch 10mm
Current Rating 24A
Termination Method Screw Down
Wire Size 2.5 mm²
Voltage Rating 400 V
Material Nylon
Maximum Operating Temperature +125°C
Contact Material Brass
Contact Plating Nickel
3310 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
23,288 kr
(exkl. moms)
29,11 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 245
23,288 kr
116,44 kr
250 +
18,63 kr
93,15 kr
