RS PRO Butt Splice Connector 16 → 14 AWG

  • RS-artikelnummer 809-2375
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

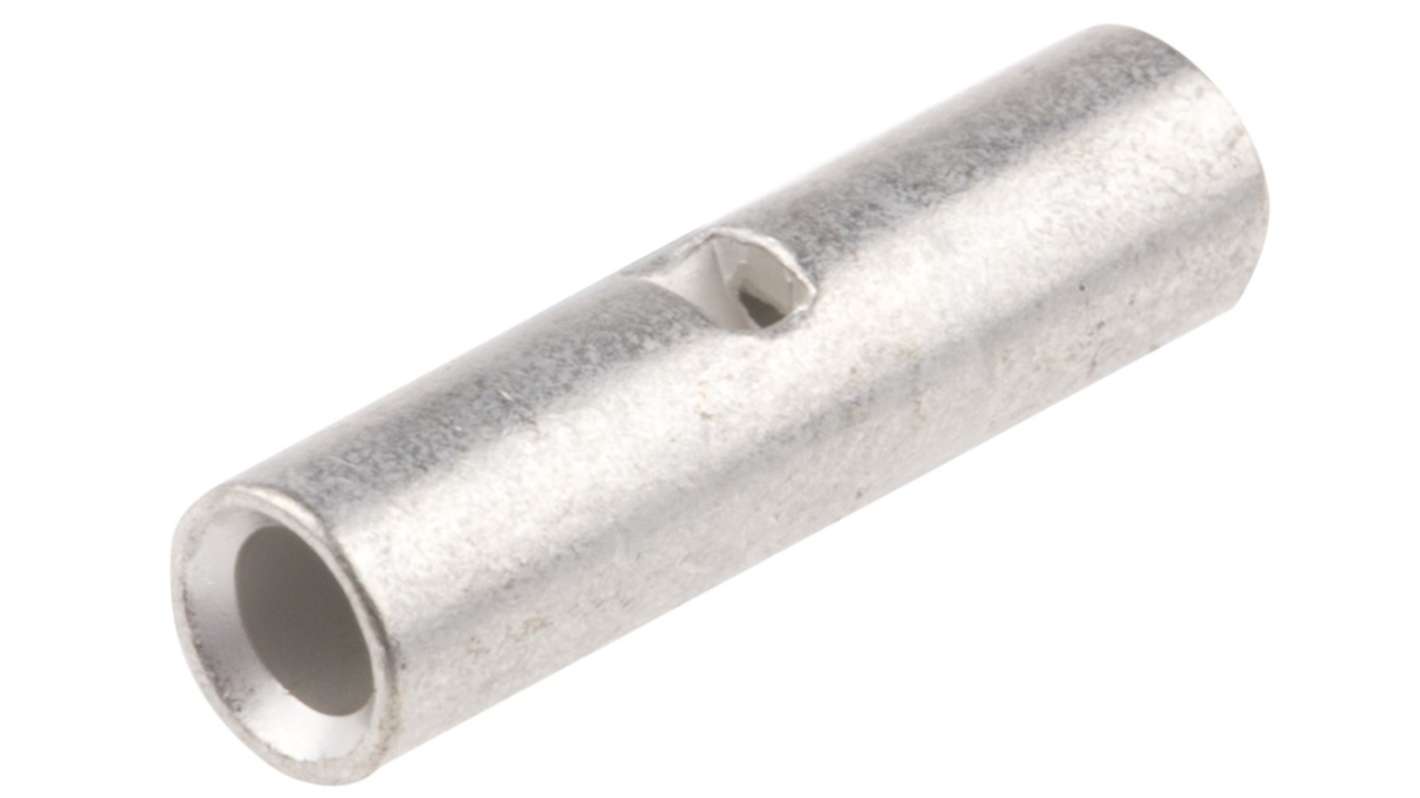

RS Uninsulated Crimp Butt Splices

Uninsulated crimp butt splices made from tubular copper. These non-insulated crimp butt splices are available with a variety wire ranges.

Specifikationer
Attribute Value
Splice Type Butt
Minimum Wire Size mm² 1.5mm²
Wire Size 16 → 14 AWG
Overall Length 16mm
Maximum Wire Size mm² 2.5mm²
Diameter 3.9mm
Minimum Wire Size AWG 16AWG
Maximum Wire Size AWG 14AWG
Insulation Uninsulated
Contact Material Copper
Thickness 0.8mm
7800 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 100)
0,685 kr
(exkl. moms)
0,856 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
100 - 400
0,685 kr
68,50 kr
500 - 2400
0,582 kr
58,20 kr
2500 +
0,513 kr
51,30 kr
