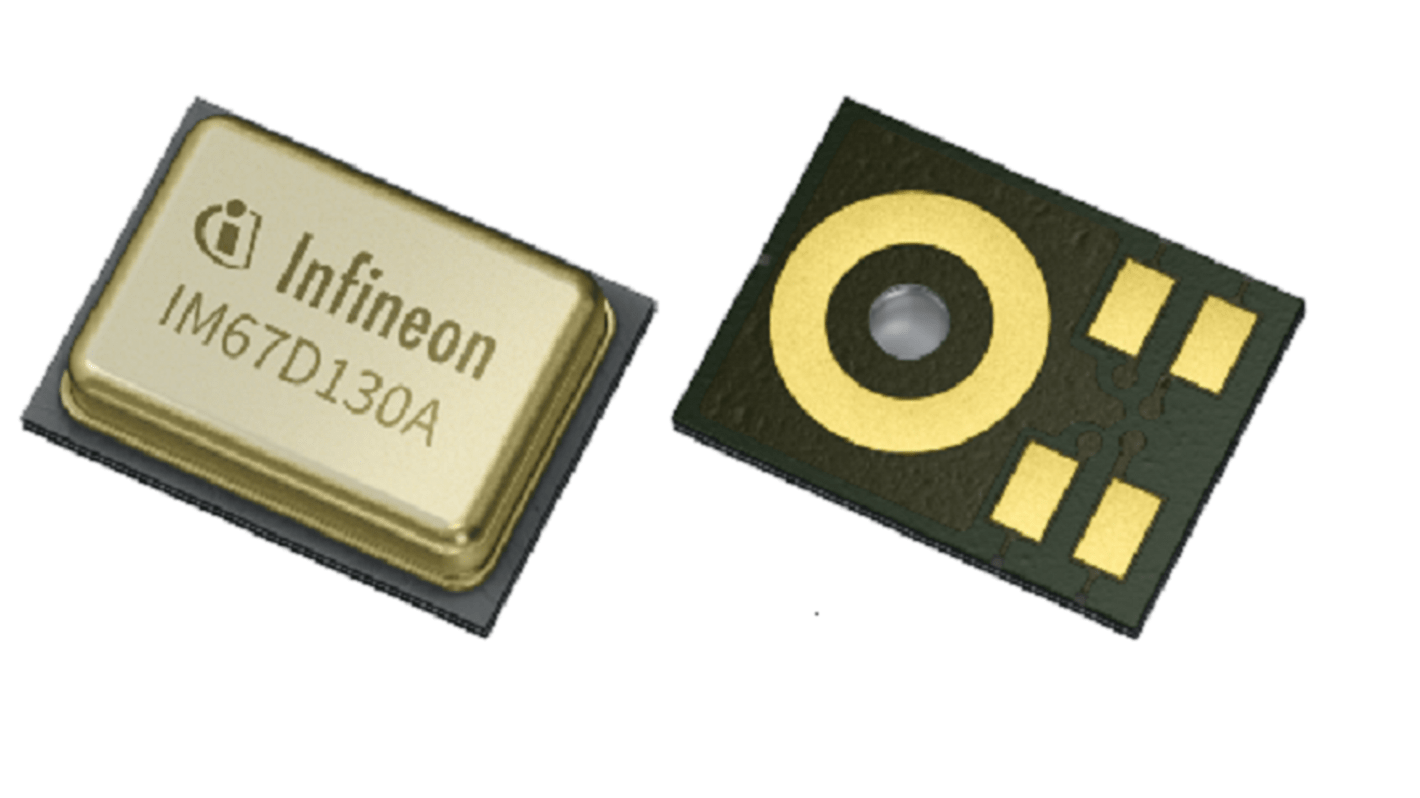

Infineon 5 Pin Microphone, Omni-Directional, Surface Mount, Digital (PDM) Output, PG-LLGA-5-4, 1.62-3.6V
- RS-artikelnummer:
- 234-4638P
- Tillv. art.nr:
- IM67D130AXTSA2
- Tillverkare / varumärke:
- Infineon
654 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i en rulle) Quantities below 150 on continuous strip
29,775 kr
(exkl. moms)
37,219 kr
(inkl. moms)
Enheter | Per unit |
10 - 98 | 29,775 kr |
100 - 248 | 29,22 kr |
250 - 498 | 28,67 kr |
500 + | 28,06 kr |
- RS-artikelnummer:
- 234-4638P
- Tillv. art.nr:
- IM67D130AXTSA2
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Infineon high performance digital MEMS microphone is designed for applications where low self-noise, wide dynamic range, low distortions and a high acoustic overload point is required. The digital microphone contains an extremely low-noise preamplifier and a high-performance sigma-delta ADC. Different power modes can be selected in order to suit specific current consumption requirements.
Dynamic range of 103dB for best speech performance
Signal to noise ratio of 67dB
<1% total harmonic distortions up to high SPL levels
Acoustic overload point at 130dBSPL
Automotive qualification
Close sensitivity and phase matching for use in arrays
Flat frequency response with low frequency roll off and very fast analog to digital conversion speed for best ANC performance
Digital PDM output
Extended availability to match automotive design cycles
Signal to noise ratio of 67dB
<1% total harmonic distortions up to high SPL levels
Acoustic overload point at 130dBSPL
Automotive qualification
Close sensitivity and phase matching for use in arrays
Flat frequency response with low frequency roll off and very fast analog to digital conversion speed for best ANC performance
Digital PDM output
Extended availability to match automotive design cycles
Specifikationer
Attribute | Value |
---|---|
Output Type | Digital (PDM) |
Directivity | Omni-Directional |
Signal to Noise Ratio | 67dB |
Standard Operating Voltage | 1.62-3.6V |
Mounting Type | Surface Mount |
Package Type | PG-LLGA-5-4 |
Pin Count | 5 |
