- RS-artikelnummer:
- 210-4397
- Tillv. art.nr:
- 3RF2320-1DA04
- Tillverkare / varumärke:
- Siemens
6 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 312,80 kr
(exkl. moms)
1 641,00 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 312,80 kr |
- RS-artikelnummer:
- 210-4397
- Tillv. art.nr:
- 3RF2320-1DA04
- Tillverkare / varumärke:
- Siemens
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

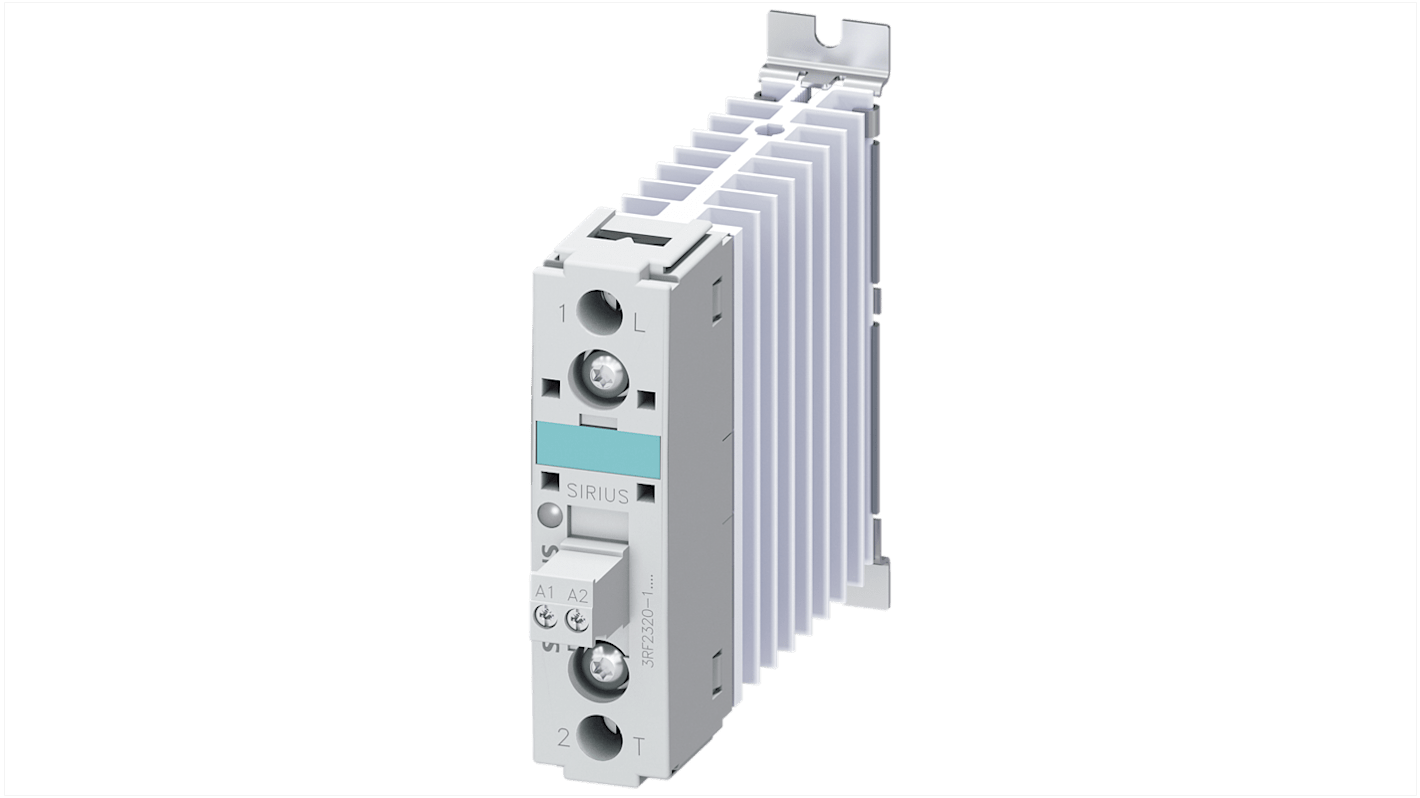

The Siemens solid-state contactor device are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The solid-state contactor can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA). Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
The compact design saves space on the mounting
The solid-state contactor are available as single-phase or three-phase device
They are available for different power ratings and rated operating voltages
The solid-state contactor are available as single-phase or three-phase device
They are available for different power ratings and rated operating voltages
Specifikationer
Attribute | Value |
---|---|
Maximum Load Current | 20 A |
Mounting Type | Screw Fitting |
Maximum Load Voltage | 460 V |
Minimum Load Voltage | 48 V |
Switching Type | DC |
Range | SIRIUS |
Minimum Load Current | 500 mA |
Contact Configuration | SPST |
Output Device | Thyristor |
Series | 3RF23 |
