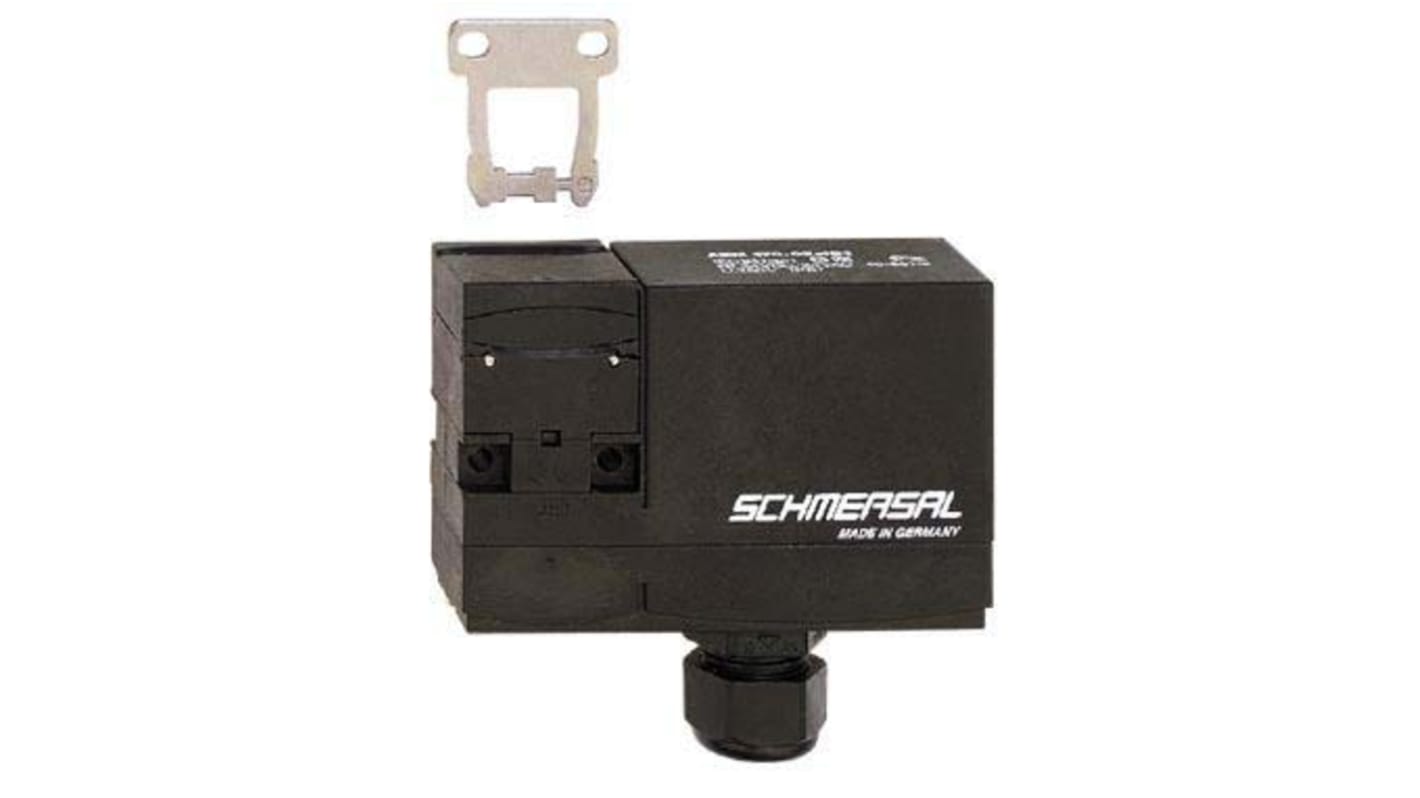

AZM 170 Solenoid Interlock Switch Power to Unlock 24 V ac/dc

  • RS-artikelnummer 146-5798
  • Tillv. art.nr AZM170-02ZRI-B1 24VAC/DC
  • Tillverkare / varumärke Schmersal
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

Double-insulated
Individual coding
Coding level "High" according to ISO 14119
90 mm x 84 mm x 30 mm
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force
1 Cable entry M 20 x 1.5
Particularly suitable for sliding doors
IDC method of termination
Manual release

Specifikationer
Attribute Value
Series AZM 170
Pole Configuration DP
Power to Lock / Unlock Power to Unlock
Actuator Included Yes
Actuator Type Coded
Conduit Entry M20
Length 90mm
Width 84mm
Depth 30mm
Supply Voltage 24 V ac/dc
Maximum AC Voltage 24V
Power Consumption 10 W
Maximum DC Voltage 24V
Safety Contacts 2NC
Housing Material Plastic
IP Rating IP67
Dimensions 90 x 84 x 30 mm
Standards Met BG, BG-GS-ET-19, CE, CULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, IEC/EN 60529
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 595,84 kr
(exkl. moms)
3 244,80 kr
(inkl. moms)
Enheter
Per unit
1 +
2 595,84 kr
