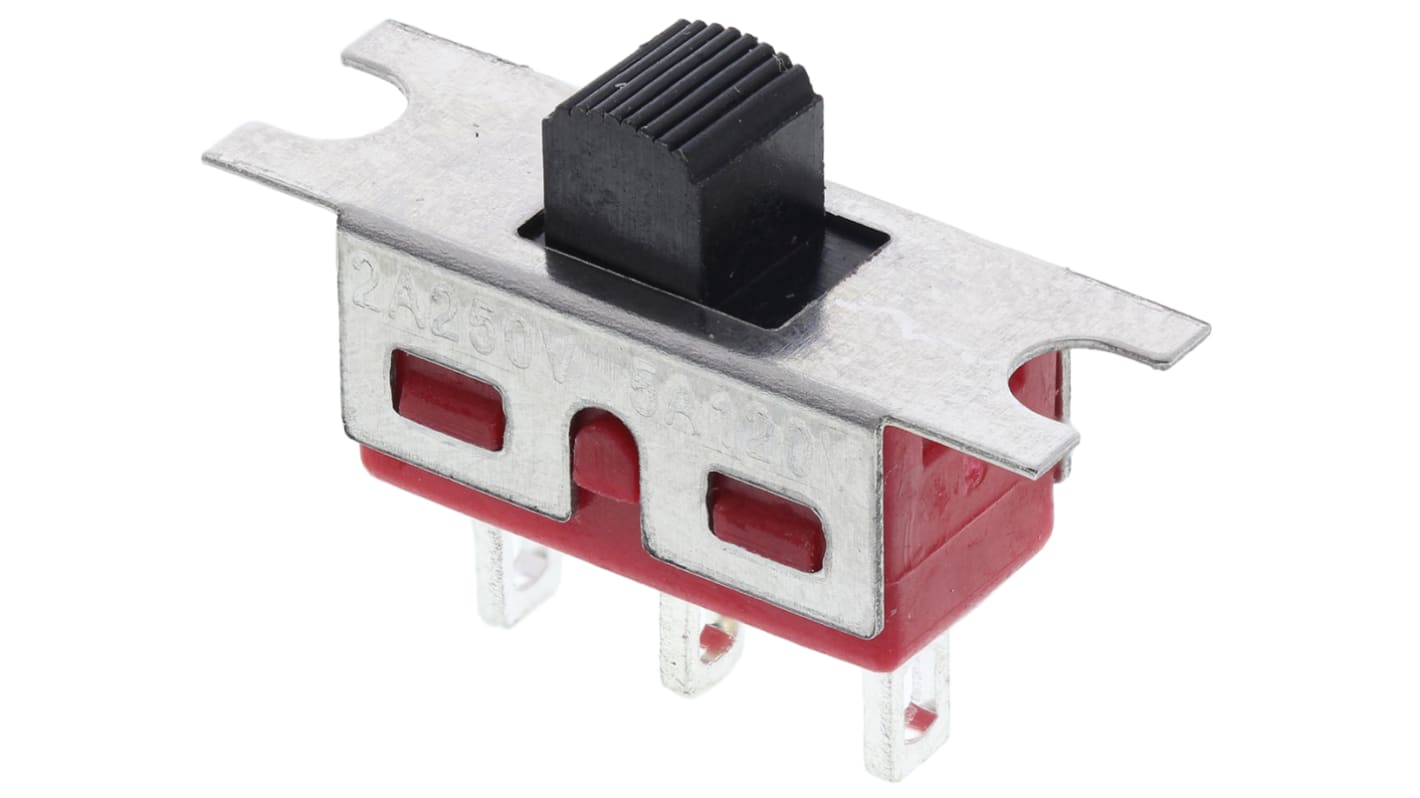

RS PRO Panel Mount Slide Switch SPDT Latching 5 A @ 28 V dc Top
- RS-artikelnummer:
- 734-7328
- Tillverkare / varumärke:
- RS PRO
50 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
51,93 kr
(exkl. moms)
64,91 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 51,93 kr |
| 10 - 49 | 46,71 kr |
| 50 - 99 | 38,95 kr |
| 100 - 249 | 36,21 kr |
| 250 + | 33,15 kr |
- RS-artikelnummer:
- 734-7328
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
RS - Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black nylon actuator, DAP case and stainless steel housing
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator, DAP case and stainless steel housing
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Specifikationer
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | Panel Mount |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 28 V dc |
| Terminal Type | Solder |
| Actuator Type | Top |
| Length | 12.7mm |
| Width | 6.6mm |
| Depth | 6.35mm |
| Dimensions | 12.7 x 6.6 x 6.35mm |
| Contact Resistance | 10mΩ |
| Mechanical Life | 30000Cycles |
| Voltage Rating | 28V dc |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Plated Brass |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| Actuator Material | Nylon |
