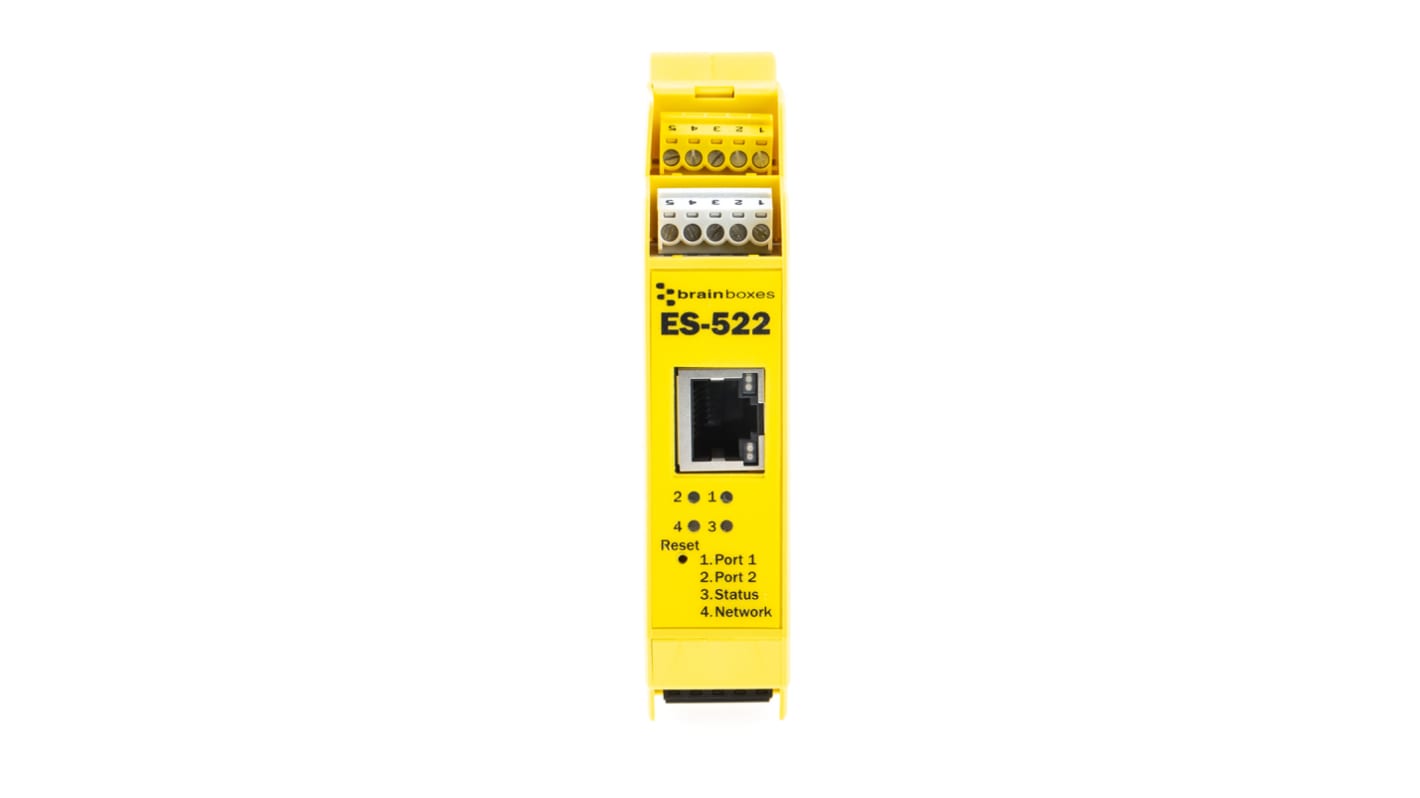

Brainboxes Serial Device Server, 1 Ethernet Port, 2 Serial Port, RS232, RS422, RS485 Interface, 1Mbit/s Baud Rate

The Brainboxes interface converter is an Ethernet to serial device server which has a 2-port software selectable as RS232, RS422/485 Full duplex or RS422 half-duplex. It has removable screw terminals blocks for easy wiring. This device provides a simple instant networked serial ports in demanding environments. The serial port tunnelling allows serial cable replacement over any distance. It also has a web interface, which allows secure configuration and control of the serial ports over a local network or the internet using any browser.

Integrated DIN rail mount and slim case
Operating temperature ranges between -30°C and 80°C
Non-conducting polyamide enclosure
LED status indication
Wide range input power supply that ranges between 5VDC and 30VDC
Redundant dual power input
Grounds on every 5th pin
Functional earth via integral DIN rail mount
Brainboxes state of the art auto gating for trouble-free RS485 half-duplex flow control
Maximum baud rate is 1,000,000 (1MBaud), custom baud rates
10/100Base TX Ethernet port
Recognises straight and crossover Ethernet cables and works with either of them
User-friendly interface, simple to use and powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users

Remote monitoring
Industrial sites
