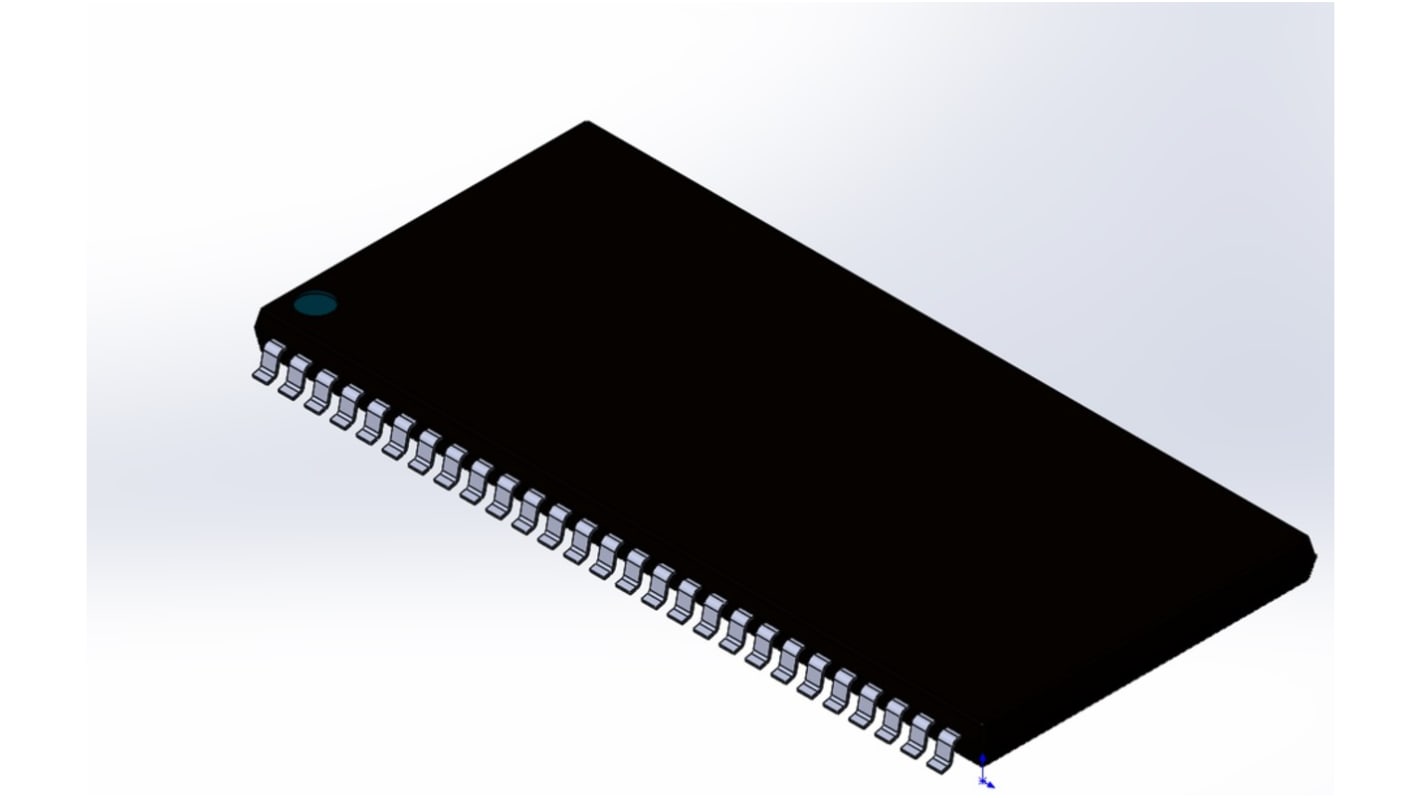

Alliance Memory AS4C32M16SB-7TIN, SDRAM 512Mbit Surface Mount, 200MHz, 3 V to 3.6 V, 54-Pin TSOP
- RS-artikelnummer:
- 230-8428
- Tillv. art.nr:
- AS4C32M16SB-7TIN
- Tillverkare / varumärke:
- Alliance Memory
259 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
152,82 kr
(exkl. moms)
191,02 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 152,82 kr |
| 10 - 24 | 141,62 kr |
| 25 - 49 | 139,40 kr |
| 50 - 74 | 138,07 kr |
| 75 + | 135,19 kr |
- RS-artikelnummer:
- 230-8428
- Tillv. art.nr:
- AS4C32M16SB-7TIN
- Tillverkare / varumärke:
- Alliance Memory
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Alliance Memory 512Mb SDRAM is a high-speed CMOS synchronous DRAM containing 512 Mbits. It is internally configured as 4 Banks of 8M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Read and write accesses to the SDRAM are burst oriented
accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a Bank Activate command which is then followed by a Read or Write command.
Auto Refresh and Self Refresh
8192 refresh cycles/64ms
CKE power down mode
Single +3.3V ±0.3V power supply
8192 refresh cycles/64ms
CKE power down mode
Single +3.3V ±0.3V power supply
Specifikationer
Attribute | Value |
|---|---|
| Memory Size | 512Mbit |
| SDRAM Class | DDR |
| Organisation | 32M x 16 |
| Data Rate | 200MHz |
| Data Bus Width | 16bit |
| Address Bus Width | 13bit |
| Number of Bits per Word | 16bit |
| Maximum Random Access Time | 5.4ns |
| Number of Words | 32 M |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Pin Count | 54 |
| Dimensions | 22.35 x 10.29 x 1.2mm |
| Height | 1.2mm |
| Length | 22.35mm |
| Width | 10.29mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Supply Voltage | 3.6 V |
