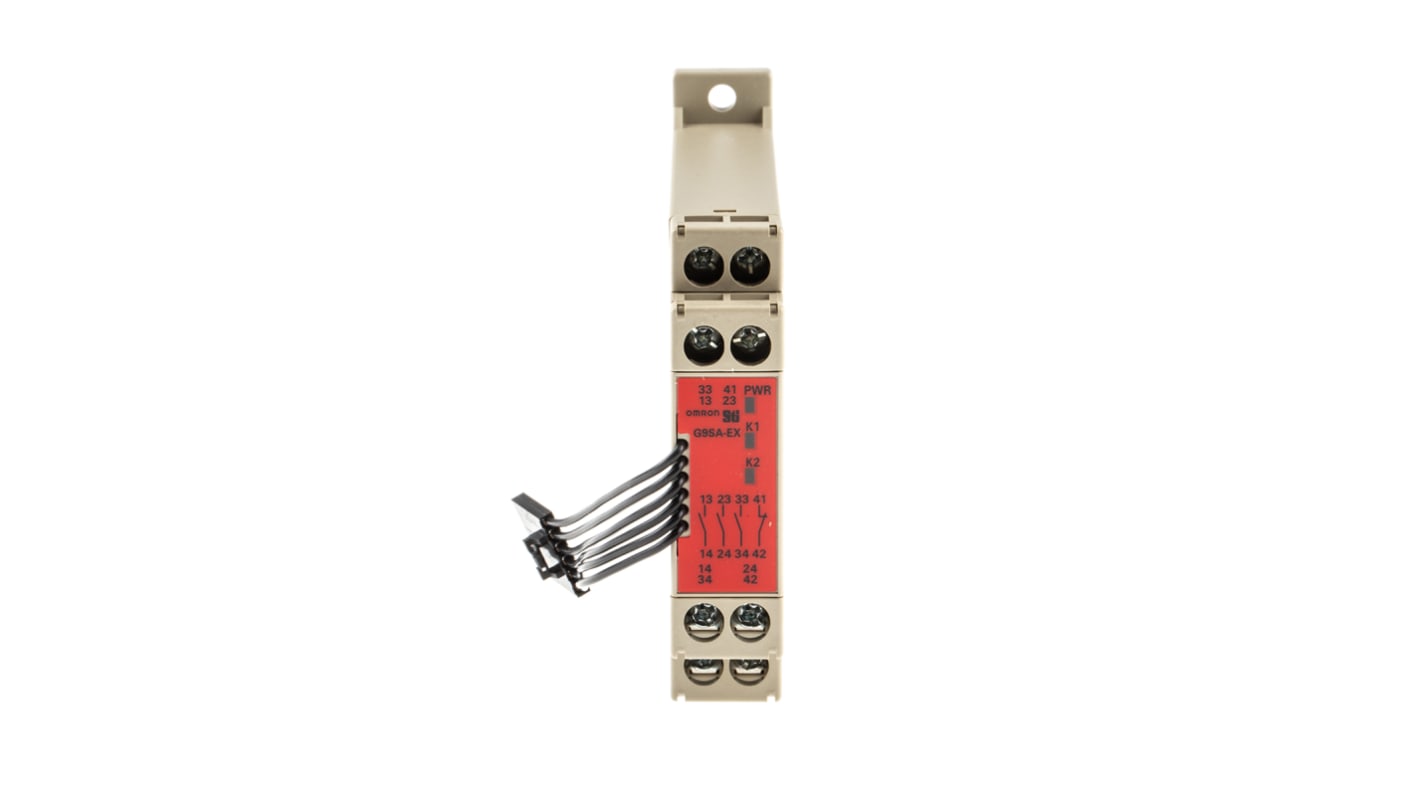

G9SA Output Module, 2 Outputs, 24 V dc

  • RS-artikelnummer 549-542
  • Tillv. art.nr G9SA-EX301
  • Tillverkare / varumärke Omron
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

G9SA, Safety Relays, Expandable

The G9SA family offers a line-up of compact and expandable safety relay units. Modules with safe OFF-delay timing are available as well as a two hand controller. Simple multiplication of safety contacts is possible by using the connection on the front.

45mm wide housing, expansion units are 17.5mm wide
Both DIN mount and screw mount are possible
Safe OFF-delay timer model with 1-15s delay (in 1s steps)
Simple expansion connection
Certification up to category 4 according to EN954-1 depending on the application
Suitable for PNP OSSD outputs of safety sensors, F3SN, F3SH, F3S-B, F3S-TGR, F3SL

Standards

EN954-1, EN60204-1, EN574 (-TH301), UL508, CSA C22.2 No. 14

Approvals

UL, CSA

Omron Safety Relay Module

The Omron G9SA series safety relay module has 3PST-NO/1SPST-NC contacts normal state configuration. It offers a line-up of compact and expandable safety relay units. The modules with safe off-delay timing are available, as well as a 2-hand controller. Simple multiplication of safety contacts is possible by using the connection on the front.

Features and Benefits

45mm wide housing, expansion units are 17.5mm wide Both DIN mount and screw mount are possible Safe off-delay timer model with 1 second and 15 seconds delay Simple expansion connection

Certifications

EN954-1 EN60204-1 EN574 (-TH301) UL508 approved CSA C22.2 No. 14

Specifikationer
Attribute Value
Series G9SA
Type Output Module
For Use With G9SA
Supply Voltage 24 V dc
Normal State Configuration 3NO/1NC
Number of Outputs 2
Power Rating 1.7 W
Mounting Style DIN Rail
Dimensions 76 x 17.5 x 111 mm
Terminal Type Screw
19 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 047,00 kr
(exkl. moms)
2 558,75 kr
(inkl. moms)
Enheter
Per unit
1 +
2 047,00 kr
