- RS-artikelnummer:
- 263-3696
- Tillv. art.nr:
- XCSC702
- Tillverkare / varumärke:
- Telemecanique Sensors
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Varje
1 725,28 kr
(exkl. moms)
2 156,60 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 725,28 kr |
- RS-artikelnummer:
- 263-3696
- Tillv. art.nr:
- XCSC702
- Tillverkare / varumärke:
- Telemecanique Sensors
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer

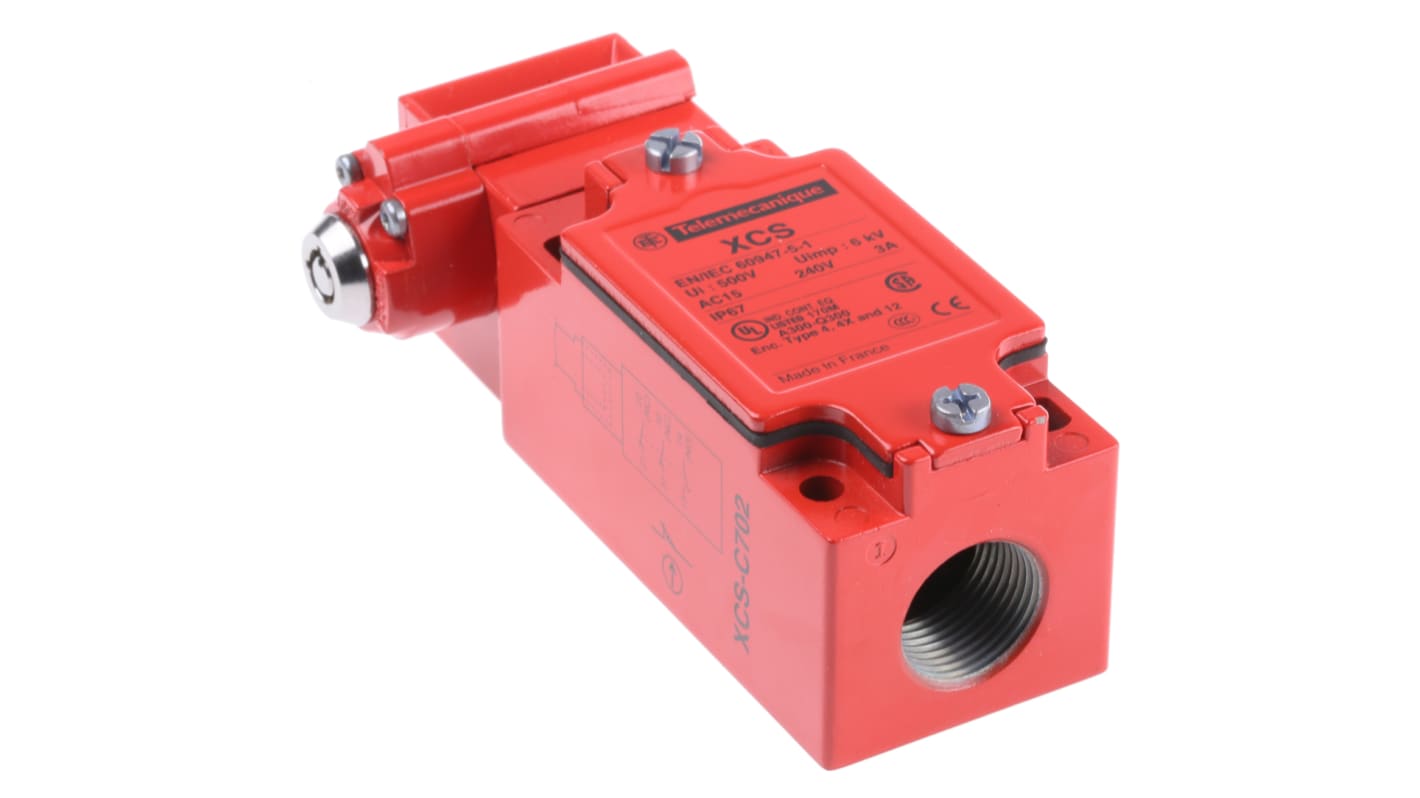

XCSC Safety Interlock Switch
Positive opening contacts as standard (on guard opening)
Optional version with orange LED to indicate guard open/closed
Heavy duty metal DIN style
Tongue actuation
Turret heads can be rotated through 360° in 90 steps
8 actuator inputs and 1 threaded input
Minimum operating force for positive opening
Degree of protection IP 67
Productivity is increased due to the third contact dedicated to diagnostics
Optional version with orange LED to indicate guard open/closed
Heavy duty metal DIN style
Tongue actuation
Turret heads can be rotated through 360° in 90 steps
8 actuator inputs and 1 threaded input
Minimum operating force for positive opening
Degree of protection IP 67
Productivity is increased due to the third contact dedicated to diagnostics
Note
Actuators sold separately
Standards
Conforms to EN1088, EN60204.
Standards
Conforms to EN1088, EN60204.
Interlock Switch
Specifikationer
Attribute | Value |
---|---|
Lock Style | Keyed |
Normal State Configuration | 2NC/1NO |
Safety Contacts | NO/2NC |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Housing Material | Zinc Alloy |
Range | Preventa |
IP Rating | IP67 |
Number of Head Directions | 8 |
Series | XCSC |
Length | 113.5mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
Width | 52mm |
Depth | 44mm |
Maximum Current | 6A |
