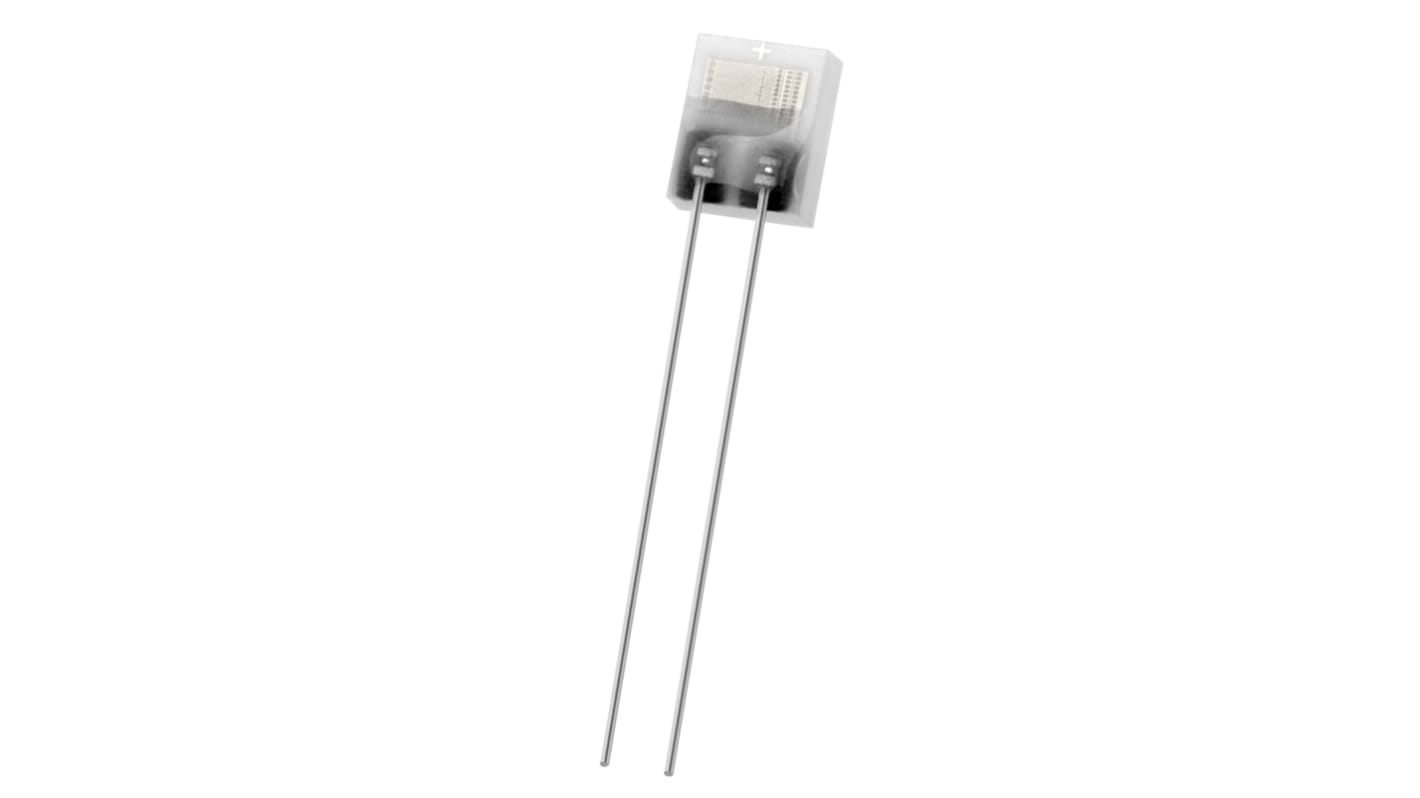

IST INNOVATIVE SENSOR TECHNOLOGY PT1000 RTD Sensor, 2mm Dia, 2.3mm Long, 2 Wire, Chip, Class A +600°C Max
- RS-artikelnummer:
- 121-8020
- Tillv. art.nr:
- P1K0.232.6W.A.007
- Tillverkare / varumärke:
- IST INNOVATIVE SENSOR TECHNOLOGY
150 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
39,035 kr
(exkl. moms)
48,794 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 18 | 39,035 kr | 78,07 kr |
| 20 - 48 | 35,435 kr | 70,87 kr |
| 50 - 98 | 32,44 kr | 64,88 kr |
| 100 - 248 | 30,11 kr | 60,22 kr |
| 250 + | 27,835 kr | 55,67 kr |
- RS-artikelnummer:
- 121-8020
- Tillv. art.nr:
- P1K0.232.6W.A.007
- Tillverkare / varumärke:
- IST INNOVATIVE SENSOR TECHNOLOGY
Lagstiftning och ursprungsland
Produktdetaljer
Platinum Resistance Temperature Sensors, IST Innovative Sensor Technology
The range of Platinum thin-film RTD (resistance temperature detectors) temperature sensors by IST Innovative Sensor Technology operate in extreme temperature conditions. Also they are available in different classes of accuracies and various package options.
Specifikationer
Attribute | Value |
|---|---|
| Sensor Type | PT1000 |
| Probe Length | 2.3mm |
| Probe Diameter | 2mm |
| Minimum Temperature Sensed | -200°C |
| Maximum Temperature Sensed | +600°C |
| Termination Type | Solder |
| Process Connection | Chip |
| Number Of Wires | 2 |
| Accuracy | Class A |
| Response Time | 0.55 (Water) ms, 12 (Air) ms |
