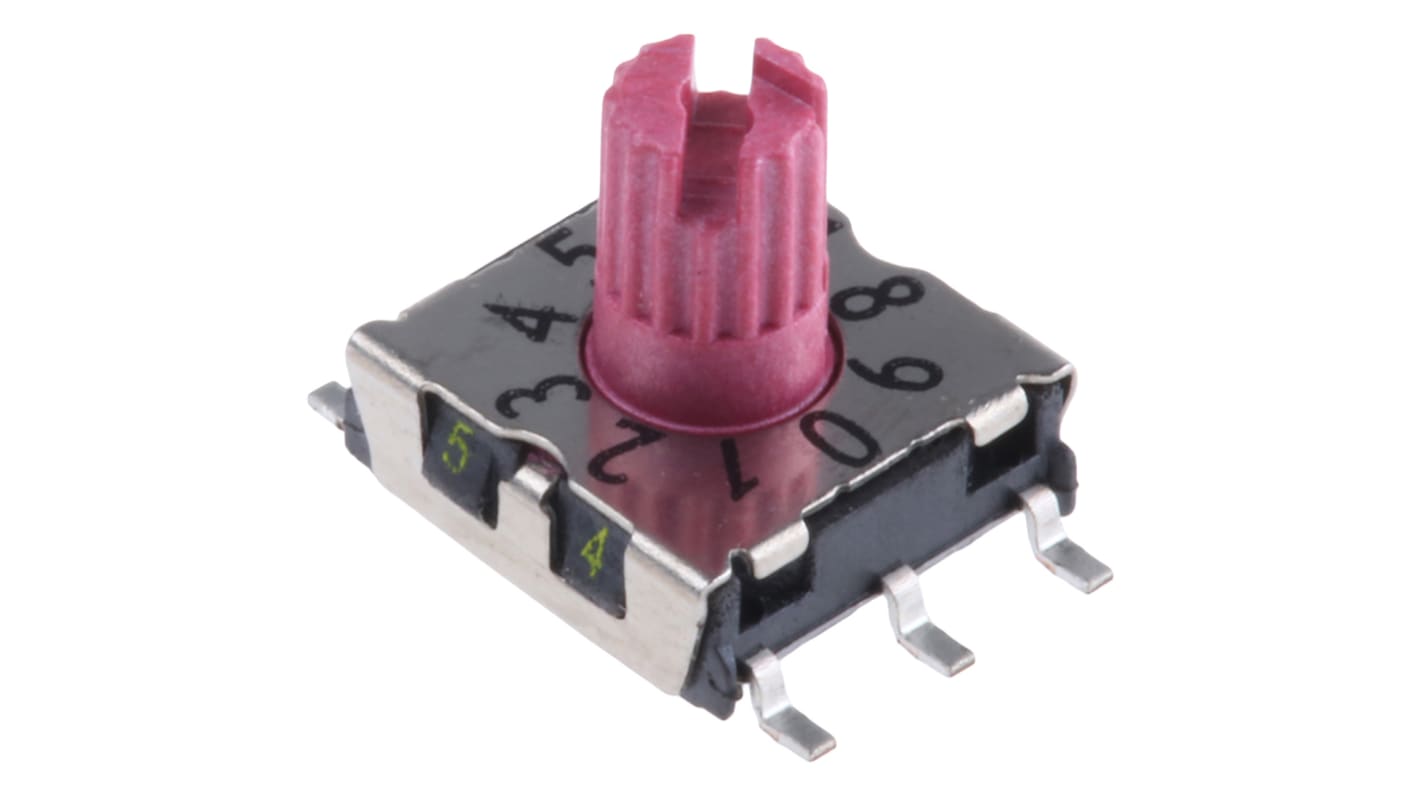

Hartmann Rotary Coded DIP Switch
- RS-artikelnummer:
- 765-1138
- Tillv. art.nr:
- P25SMT301
- Tillverkare / varumärke:
- Hartmann
680 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
40,26 kr
(exkl. moms)
50,32 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 40,26 kr | 201,30 kr |
| 25 - 45 | 36,67 kr | 183,35 kr |
| 50 - 120 | 33,41 kr | 167,05 kr |
| 125 - 245 | 29,998 kr | 149,99 kr |
| 250 + | 28,706 kr | 143,53 kr |
- RS-artikelnummer:
- 765-1138
- Tillv. art.nr:
- P25SMT301
- Tillverkare / varumärke:
- Hartmann
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Hartmann Codier Subminiature Rotary Coded Switches (SMT) – P25 Series
Hartmann Codier P25 series subminiature rotary coded switches are a very compact and reliable solution to a wide variety of application requirements. The P25 rotary coded switch series feature solid PCB pins that ensure trouble-free assembly and safe stable connections and contacts with an abrasion resistant hard gold plating demonstrating low and stable contact resistance. The P25 series of rotary coded switches feature clearly visible figures and a precise detention mechanism for fast and easy operation.
Subminiature build: 2.5mm height, 7.0mm length
Lateral C-contact – the common contact runs across the top of the switch
Hard gold plated contacts
Solid tinned PCB pins
Lateral C-contact – the common contact runs across the top of the switch
Hard gold plated contacts
Solid tinned PCB pins
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Output Coding | BCD |
| Terminal Type | Through Hole |
| Number of Switch Positions | 10 |
| Number of Contacts | 6 |
| Contact Current Rating | 100 mA @ 42 V |
| Voltage Rating | 42V |
| Height | 7mm |
| Width | 7mm |
| Depth | 2.5mm |
