Omron ER Rope Pull Switch, 80m, 2NC/1NO, Any Position
- RS-artikelnummer:
- 215-5013
- Tillv. art.nr:
- 44506-5210 ER6022-021ME
- Tillverkare / varumärke:
- Omron
Tillfälligt slut i lager – restorder för leverans 2024-07-22
Lagt till varukorgen
Pris (ex. moms) Varje
5 015,00 kr
(exkl. moms)
6 268,75 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 5 015,00 kr |
- RS-artikelnummer:
- 215-5013
- Tillv. art.nr:
- 44506-5210 ER6022-021ME
- Tillverkare / varumärke:
- Omron
Lagstiftning och ursprungsland
Produktdetaljer

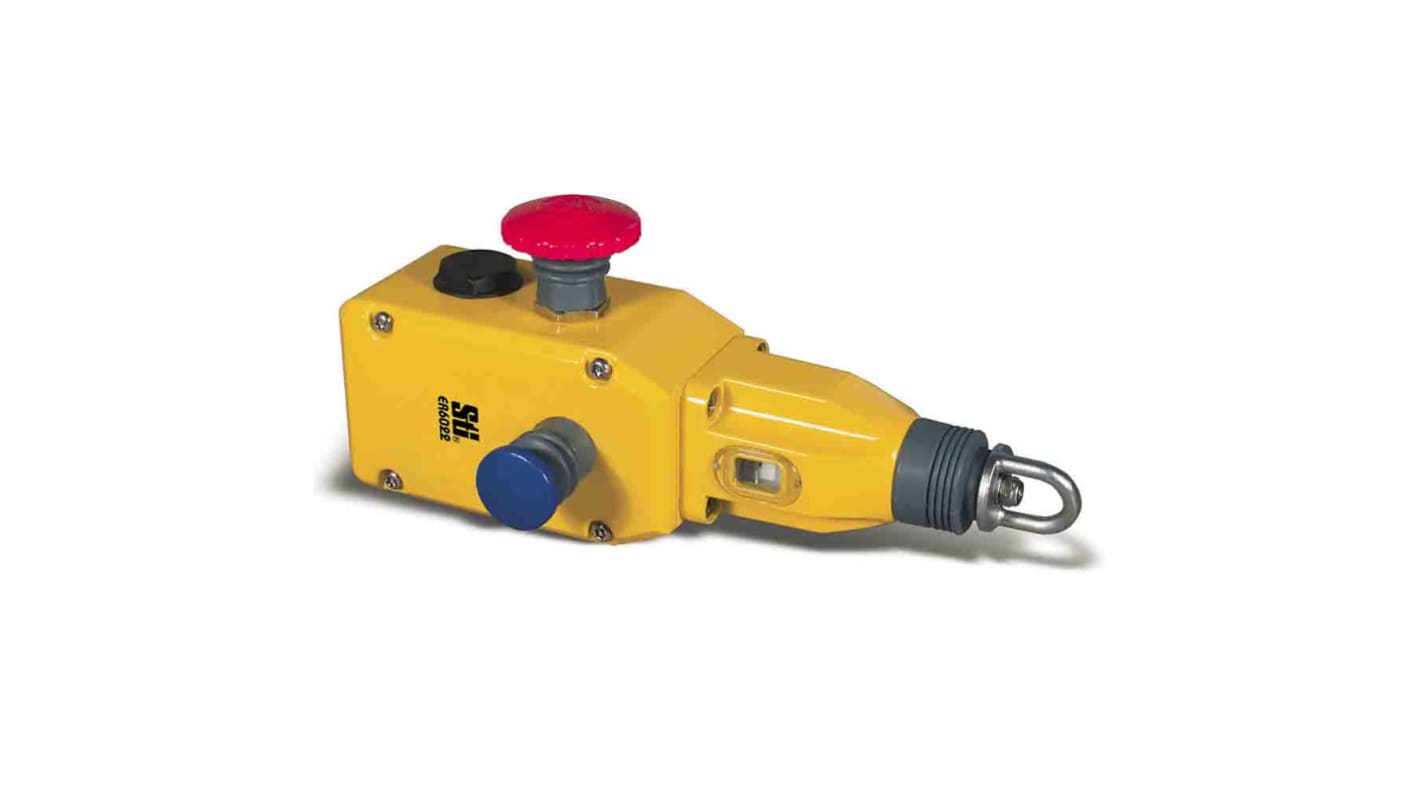

The Omron ER6022 series is a Safety rope pull E-stop switch has 2 NC+1 NO contacts with Included (24 VDC) Indicator Beacon. Typical applications are on conveyor systems and across rotating machinery, and around hazardous areas.
M20 wiring entry (3x)
Specifikationer
Attribute | Value |
|---|---|
| Normal State Configuration | 2NC/1NO |
| Cable Length | 80m |
| Mounting Orientation | Any Position |
| IP Rating | IP67 |
| Series | ER |
| Length | 222mm |
| Width | 63mm |
| Depth | 86mm |
| Housing Material | Die Cast Aluminium |
| Conduit Entry | M20 x 3 |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 24V |
| Dimensions | 63 x 86 x 222mm |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | +80 °C |
| Standards Met | CE, cUL, UL |
| Maximum Current | 3A |
