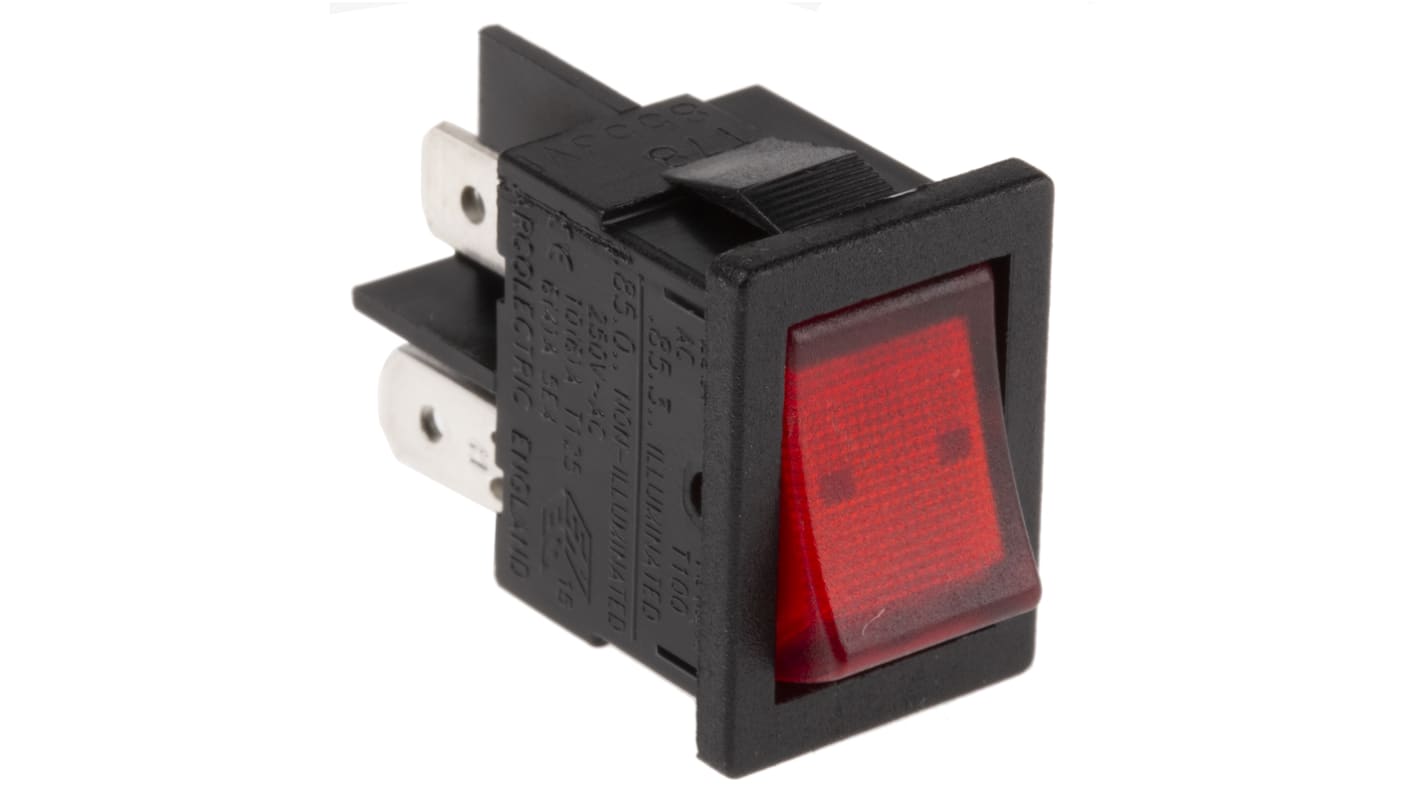

Arcolectric Illuminated Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount

  • RS-artikelnummer 318-042
  • Tillv. art.nr H8553VBNAA
  • Tillverkare / varumärke Arcolectric
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Min. Illuminated Rocker Switches

A range of miniature illuminated and non-illuminated rocker switches designed for panel mounting. With a choice of red or green illumination, these double pole latching switches are suitable for an array of applications. Once a 19.3 x 12.9 mm cut-out is made, the DPST on-off rocker switches simply snap-in to the panel and is retained securely. These robust switches are ideal for repair, as well as new prototypes and designs.

Features and Benefits

• 250 V ac rated
• High in-rush tolerance 85A to EN61058-1
• The option of red or green illumination
• Non- illuminated with I/O marking
• Ergonomically curved actuator
• Connection via 4.8 x 0.8 mm quick connect blade terminals
• DPST switch configuration
• 19.3 x 12.9 mm miniature panel cut-out

Applications for miniature rocker switches

Rocker switches are one of the most frequently used electrical switches in the market today. With a simple design and easy operation, rockers provide flexibility and reliability. Some of the most likely applications are:

• Panel building
• Domestic appliances, kettles, coffee machines showers
• Power supplies
• Tools and workshop machinery
• White goods
• Computers and peripherals

FAQ

Are the miniature rocker switches easy to connect?
Yes, as the DPST rocker switches have male quick connect 4.8 x 0.8 mm tab terminals at the rear so the connection is easy. Simply select the appropriate red, yellow or blue female push on receptacle connectors according to wire size required.

• Part number 228-4581 is a black non-illuminated rocker switch with I/O marking
• Part number 318-042 is a red illuminated rocker switch with a plain actuator
• Part number 318-058 is a green illuminated rocker switch with a plain actuator

Approvals

ENEC; UL; CSA

Note

4.8´0.5 crimp receptacles are not suitable

Approvals

ENEC; UL; CSA

Specifikationer
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation On-Off
Panel Cut Out Width 12.9mm
Panel Cut Out Height 19.4mm
Contact Current Rating 10 A
Illuminated Yes
Mounting Type Panel Mount
Terminal Type Quick Connect
Actuator Shape Rectangular
Panel Cut Out Size 19.4 x 12.9mm
AC Voltage Rating 250V
1284 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
Tidigare 49,49 kr
40,86 kr
(exkl. moms)
51,08 kr
(inkl. moms)
Enheter
Per unit
1 - 24
40,86 kr
25 - 49
35,98 kr
50 - 99
34,74 kr
100 - 249
31,85 kr
250 +
26,57 kr
