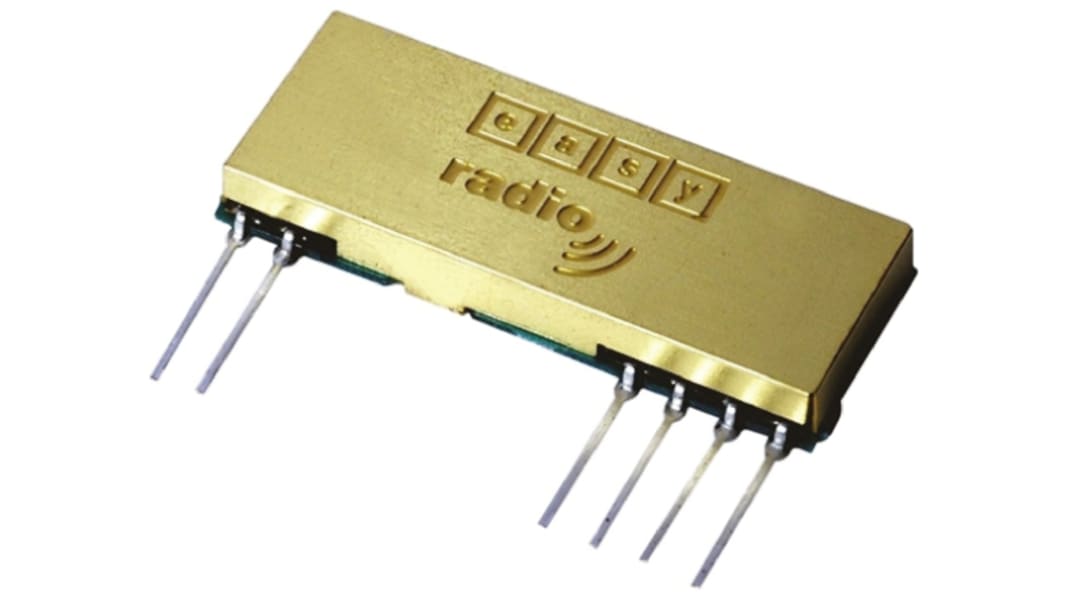

LPRS ERA900TS Module 868MHz, 2.5 → 5.5V
- RS-artikelnummer:
- 177-4869
- Tillv. art.nr:
- ERA900TS
- Tillverkare / varumärke:
- LPRS
Tillfälligt slut i lager – restorder för leverans 2024-07-22
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 50)
335,923 kr
(exkl. moms)
419,904 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 50 + | 335,923 kr | 16 796,15 kr |
- RS-artikelnummer:
- 177-4869
- Tillv. art.nr:
- ERA900TS
- Tillverkare / varumärke:
- LPRS
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
eRAx00TS easyRadio Advanced Transmitter Modules
The eRAx00TS is a complete system-on-module that combines a high performance very low power RF ISM-Band transmitter, a microcontroller and a voltage regulator. The module provides a secure serial data communication link based on the easyRadio protocol with 16-bit encryption and anti-crosstalk software.
RF Carrier Frequency bands: 433MHz (eRA400TS RS 783-9628), 868/915MHz (eRA900TS RS 783-9631)
Programmable Channel Bandwidth: 12.5kHz to 150kHz
Up to 132 channels
RF Output Power: +10dBm @ 434MHz, +7dBm @ 868MHz, 0dBm @ 915MHz
Modulation: FSK
OTA Data Rate: 1200bps to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Communication: serial UART with CTS flow control
Host Data Rate: 2400bps to 115200bps
Temporary channel/power level selection capability
On-board temperature sensor
Compatible with most 50Ω antennas
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)
Programmable Channel Bandwidth: 12.5kHz to 150kHz
Up to 132 channels
RF Output Power: +10dBm @ 434MHz, +7dBm @ 868MHz, 0dBm @ 915MHz
Modulation: FSK
OTA Data Rate: 1200bps to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Communication: serial UART with CTS flow control
Host Data Rate: 2400bps to 115200bps
Temporary channel/power level selection capability
On-board temperature sensor
Compatible with most 50Ω antennas
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)
Wireless Modules - Low Power Radio Solutions
Specifikationer
Attribute | Value |
|---|---|
| Component Type | Module |
| Supported Frequency Bands | 868 MHz, 915MHz |
| Modulation Technique | ASK, FSK, GFSK |
| Maximum RF Data Rate | 38400bit/s |
| Maximum Output Power | +10dBm |
| Receiver Sensitivity | -117dBm |
| Supported Bus Interfaces | RS232, UART |
| Supply Voltage | 2.5 → 5.5V |
| Dimensions | 31 x 4 x 12mm |
| Height | 12mm |
| Length | 31mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 4mm |
