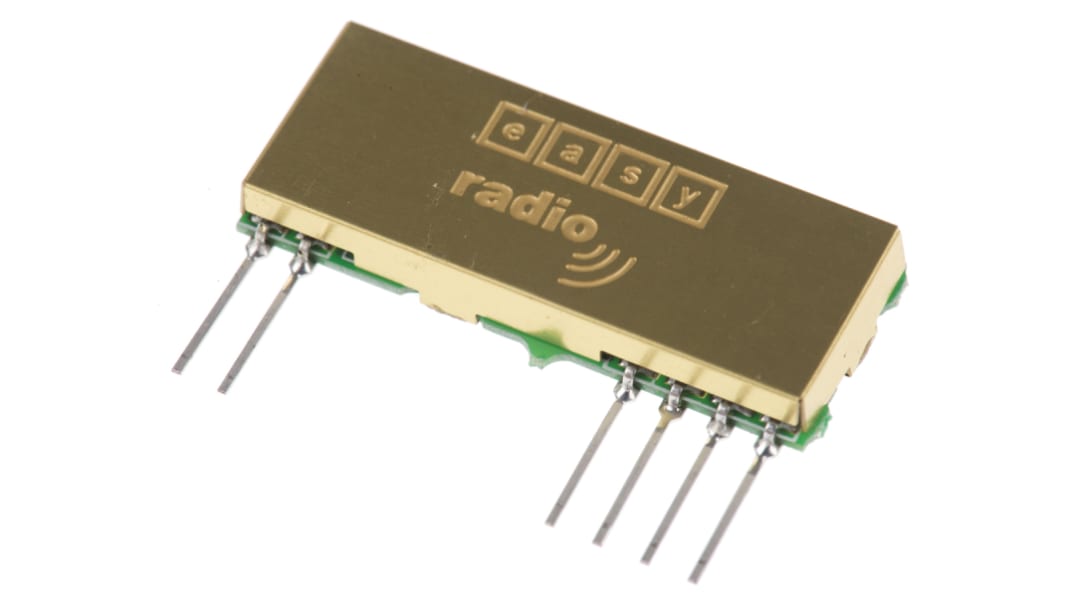

LPRS ERA400TS RF Transmitter Module 433 MHz, 2.5 → 5.5V

  • RS-artikelnummer 177-4868
  • Tillv. art.nr ERA400TS
  • Tillverkare / varumärke LPRS
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

eRAx00TS easyRadio Advanced Transmitter Modules

The eRAx00TS is a complete system-on-module that combines a high performance very low power RF ISM-Band transmitter, a microcontroller and a voltage regulator. The module provides a secure serial data communication link based on the easyRadio protocol with 16-bit encryption and anti-crosstalk software.

RF Carrier Frequency bands: 433MHz (eRA400TS RS 783-9628), 868/915MHz (eRA900TS RS 783-9631)
Programmable Channel Bandwidth: 12.5kHz to 150kHz
Up to 132 channels
RF Output Power: +10dBm @ 434MHz, +7dBm @ 868MHz, 0dBm @ 915MHz
Modulation: FSK
OTA Data Rate: 1200bps to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Communication: serial UART with CTS flow control
Host Data Rate: 2400bps to 115200bps
Temporary channel/power level selection capability
On-board temperature sensor
Compatible with most 50Ω antennas
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Wireless Modules - Low Power Radio Solutions

Specifikationer
Attribute Value
Module Type Transmitter
Supported Frequency Bands 433 MHz
Modulation Technique ASK, FSK, GFSK
Maximum RF Data Rate 38400bit/s
Maximum Output Power +10dBm
Receiver Sensitivity -117dBm
Supported Bus Interfaces RS232, UART
Supply Voltage 2.5 → 5.5V
Dimensions 31 x 4 x 12mm
Height 12mm
Length 31mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Width 4mm
Tillfälligt slut i lager – restorder för leverans 2020-05-15
Pris (ex. moms) Each (In a Tray of 50)
231,637 kr
(exkl. moms)
289,546 kr
(inkl. moms)
Enheter
Per unit
Per Tray*
50 +
231,637 kr
11 581,85 kr
