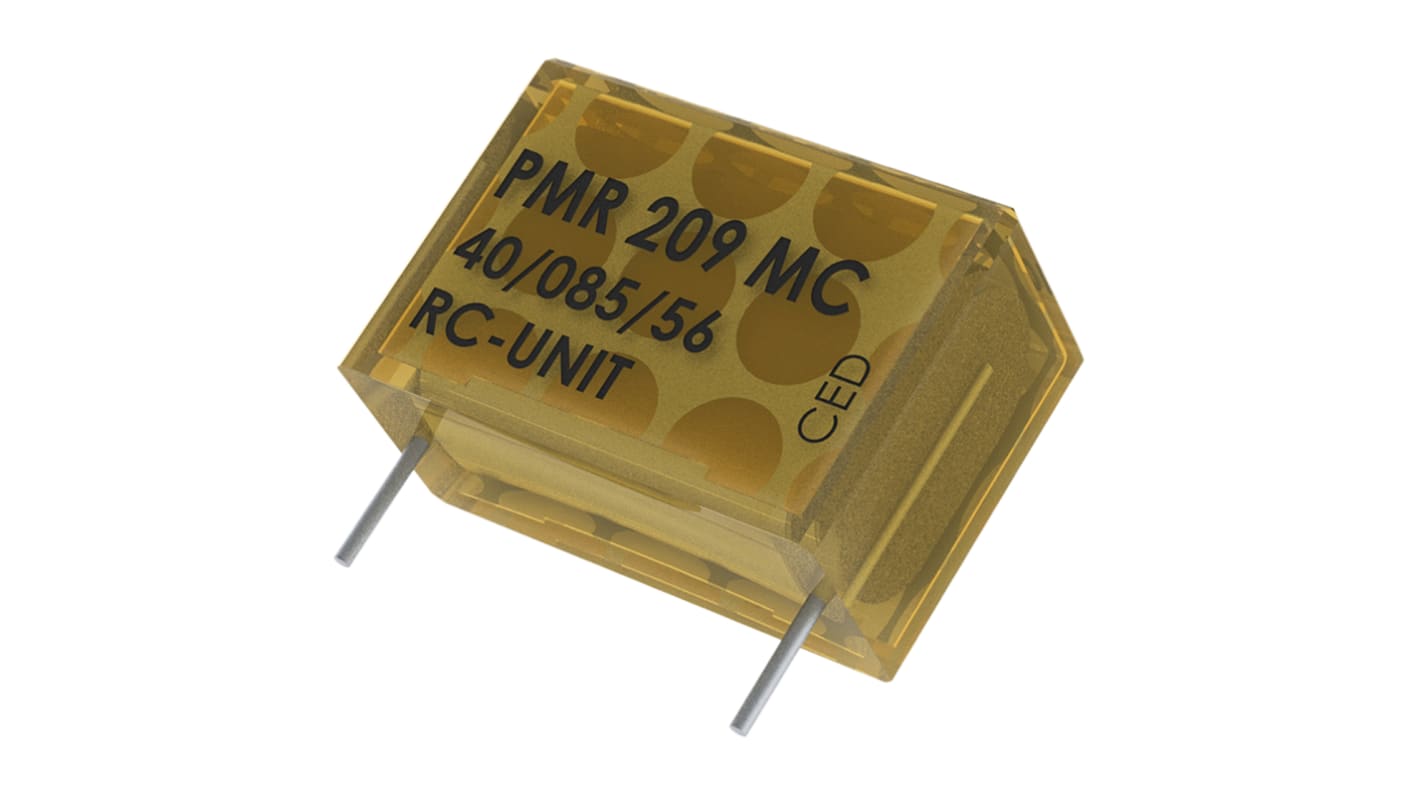

KEMET RC Capacitor 100nF 47Ω Tolerance ±20% 250 V ac, 630 V dc 1-way Through Hole PMR209 Series

  • RS-artikelnummer 209-229
  • Tillv. art.nr PMR209MC6100M047R30
  • Tillverkare / varumärke KEMET
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FI
Produktdetaljer

PMR 209 Series

Metallised Paper X2, 250Vac
RC unit suitable for use in DC & AC applications for contact protection interference suppression of contacts and transient suppression
Small dimensions
Self-extinguishing encapsulation
Excellent self healing properties ensuring long life even when subject to frequent over voltages
Impregnated paper ensures excellent stability and outstanding reliability, especially in applications with continuous operation

Approvals

SEMKO, NEMKO, DEMKO, UL,VDE

Warning

  • These devices are designed for connecting directly across a mains supply but should NOT be used in positions where failure of the capacitor would expose anyone to electric shock.
Specifikationer
Attribute Value
Series PMR209
Capacitance 100 nF
Voltage 250 V ac, 630 V dc
Resistance 47Ω
Dielectric Metallised Paper
Mounting Type Through Hole
Number of Elements 1
Capacitance Tolerance ±20%
Resistance Tolerance ±30%
Dimensions 24 x 7.6 x 14mm
Height 14mm
Depth 7.6mm
Length 24mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
210 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
35,28 kr
(exkl. moms)
44,10 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 120
35,28 kr
176,40 kr
125 - 245
22,128 kr
110,64 kr
250 - 495
18,136 kr
90,68 kr
500 - 995
16,40 kr
82,00 kr
1000 +
15,344 kr
76,72 kr
