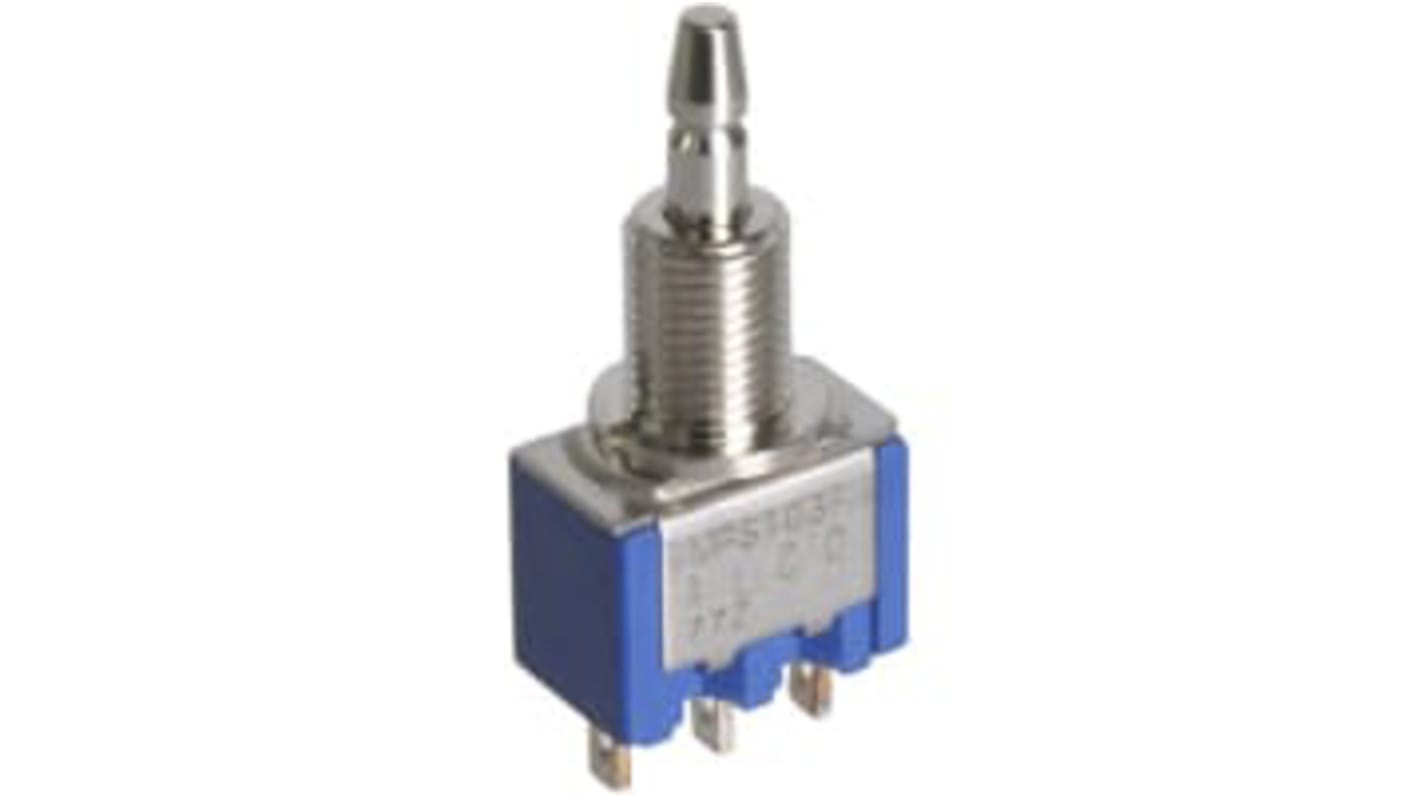

Single Pole Double Throw (SPDT) Momentary Push Button Switch, Bushing

  • RS-artikelnummer 913-8858
  • Tillv. art.nr MPS 103 F
  • Tillverkare / varumärke KNITTER-SWITCH
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

Knitter Switch Push button

Product description:
Knitter-Switch miniature push button switch offers great mechanical life with a minimum of 100000 operations. Available in both SPDT and DPDT these snap action switches offer an on-mom switch configuration.

Features and benefits
Long mechanical life 100000 operations.
Both SPDT and DPDT available.
On-mom configuration.

Specifikationer
Attribute Value
Switch Operation Momentary
Mounting Type Bushing
Illuminated No
Contact Configuration Single Pole Double Throw (SPDT)
Actuator Colour Black
Voltage Rating 125V ac
Contact Current Rating 3 A
Actuator Shape Round
Terminal Type Solder Tag
Contact DC Voltage Rating 30V
Contact AC Voltage Rating 125V
Case Colour Black
Actuator Type Push Button
233 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
97,25 kr
(exkl. moms)
121,56 kr
(inkl. moms)
Enheter
Per unit
1 - 9
97,25 kr
10 - 24
90,50 kr
25 - 49
88,32 kr
50 - 99
78,59 kr
100 +
71,64 kr
