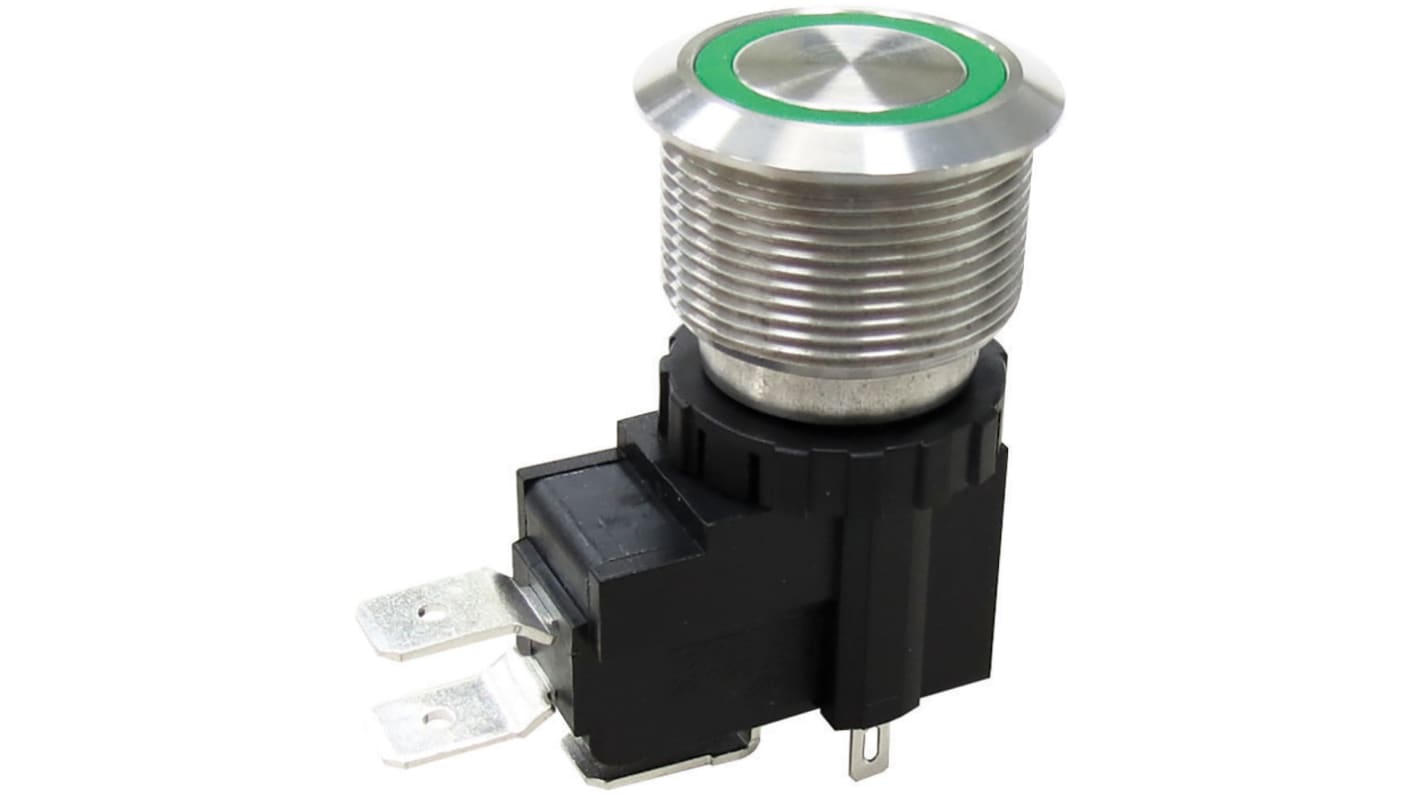

RS PRO Push Button Switch, Momentary, Panel Mount, 22.2mm Cutout, SPST, 250 / 125V ac, IP67
- RS-artikelnummer:
- 175-8741
- Tillverkare / varumärke:
- RS PRO
4 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) 1 paket med 1
289,38 kr
(exkl. moms)
361,72 kr
(inkl. moms)
| Förpackning(ar) | Per Pack |
| 1 + | 289,38 kr |
- RS-artikelnummer:
- 175-8741
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
High Current Anti-Vandal Pushbutton Switches (MW Series)
IP67 rated. Available in 19mm, 22mm, 25mm and high current.
The micro-switch and bushing can be replaced, which solves the user's troubles in maintenance and increases the convenience of replacement.
The high-current switch also has a variety of indicator options, such as non-indicator, ring indicator, power symbol indicator and customer design options.
The micro-switch and bushing can be replaced, which solves the user's troubles in maintenance and increases the convenience of replacement.
The high-current switch also has a variety of indicator options, such as non-indicator, ring indicator, power symbol indicator and customer design options.
Applications
Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 22.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPST |
| Voltage Rating | 250 / 125V ac |
| Push Button Style | Round |
| IP Rating | IP67 |
| Contact Current Rating | 16 A, 26 A |
| Contact Material | Brass |
| Manufacturer Part No. | MW22-A0F0000-A3DA |
| Case Colour | Natural |
| Contact AC Voltage Rating | 250 / 125V |
| Terminal Type | Quick Connect |
