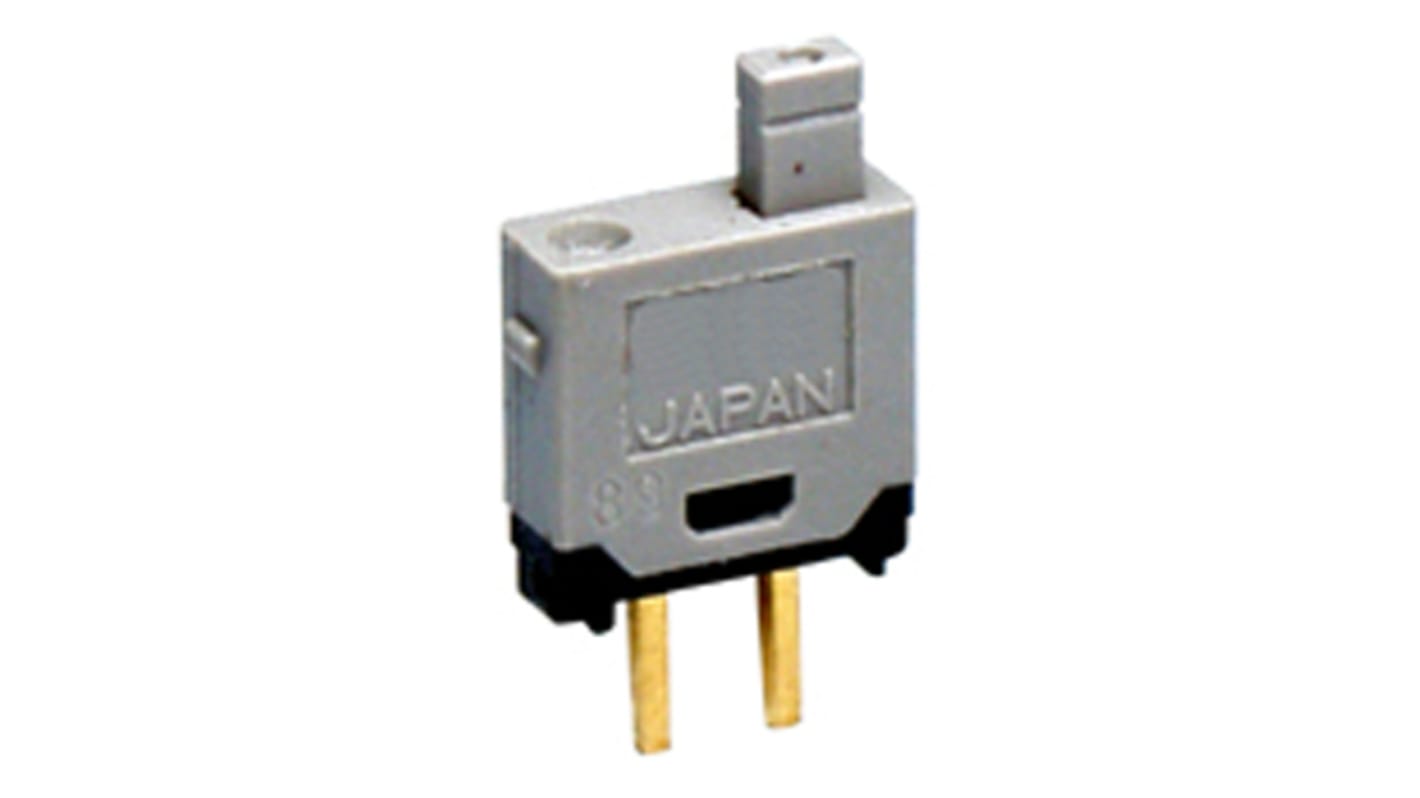

NKK Switches Push Button Switch, Momentary, Through Hole, SPST, 28V ac/dc
- RS-artikelnummer:
- 125-1702
- Tillv. art.nr:
- GB215AP
- Tillverkare / varumärke:
- NKK Switches
50 I lager för avsändande samma dag
Inom 5 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 5)
32,124 kr
(exkl. moms)
40,155 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 5 - 20 | 32,124 kr | 160,62 kr |
| 25 - 95 | 30,196 kr | 150,98 kr |
| 100 - 495 | 28,27 kr | 141,35 kr |
| 500 + | 26,342 kr | 131,71 kr |
- RS-artikelnummer:
- 125-1702
- Tillv. art.nr:
- GB215AP
- Tillverkare / varumärke:
- NKK Switches
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
NKK Ultra thin Pushbutton Switches GB2 Series
The GB2 series pushbutton switches are ultra thin making them ideal for handheld equipment.
Features and Benefits
Off centre actuator
Side by side block mounting
Off momentary On circuit
STC contact mechanism
Expoxy sealed terminals, molded in
2.54mm x 2.54mm terminal spacing
Side by side block mounting
Off momentary On circuit
STC contact mechanism
Expoxy sealed terminals, molded in
2.54mm x 2.54mm terminal spacing
Standards
UL94-0 case and base
NKK Pushbutton Switches
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Mounting Type | Through Hole |
| Contact Configuration | SPST |
| Voltage Rating | 28V ac/dc |
| Push Button Style | Rectangular |
| Contact Current Rating | 100 mA |
| Contact Material | Brass |
| Case Colour | Black |
| Contact DC Voltage Rating | 28V |
| Manufacturer Part No. | GB215AP |
| Contact AC Voltage Rating | 28V |
| Terminal Type | PC Pin |
- RS-artikelnummer:
- 125-1702
- Tillv. art.nr:
- GB215AP
- Tillverkare / varumärke:
- NKK Switches
