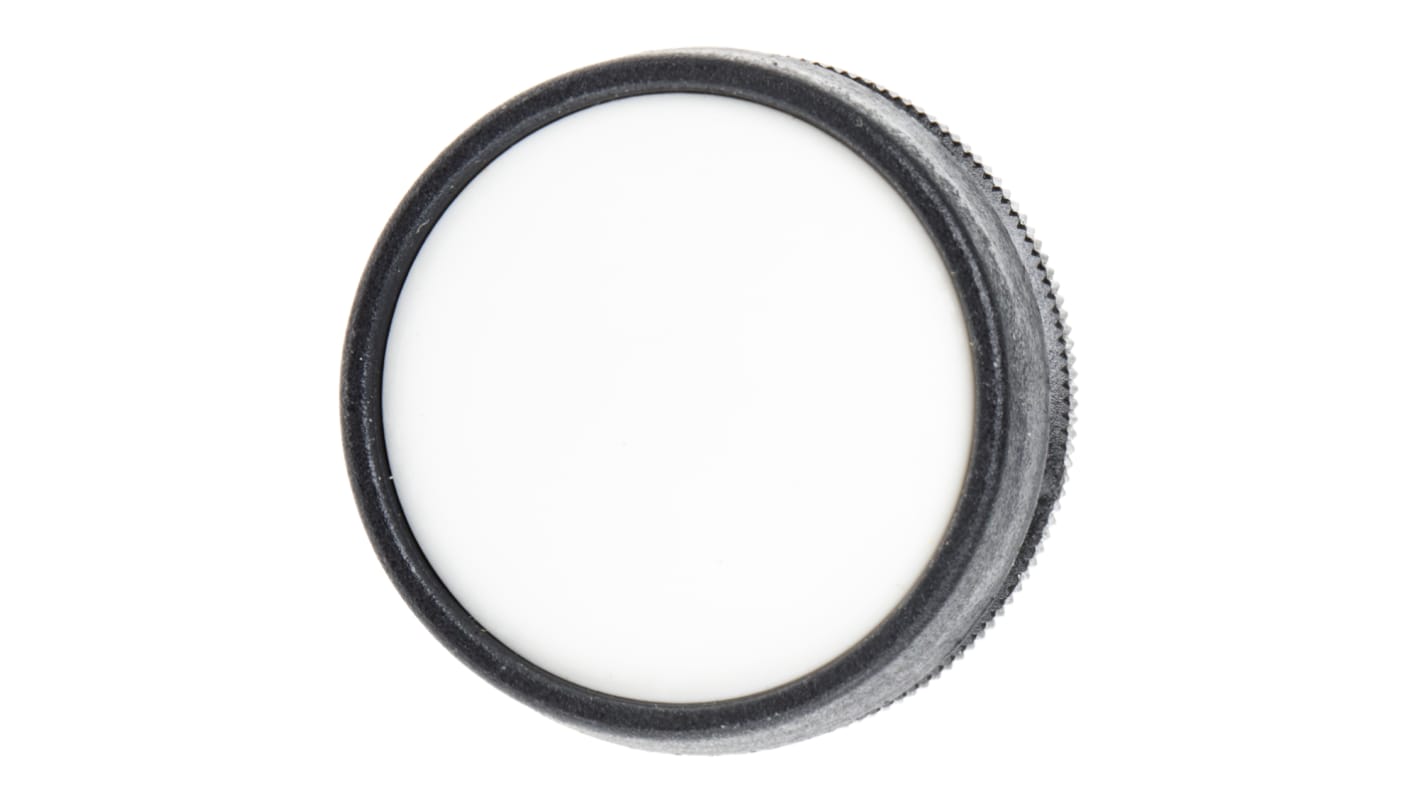

ITW Switches 76-91 Series Push Button Switch, Momentary, Panel Mount, 22.5mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS-artikelnummer:
- 350-276
- Tillv. art.nr:
- 76-9111/439088
- Tillverkare / varumärke:
- ITW Switches
42 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
125,92 kr
(exkl. moms)
157,40 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 125,92 kr |
| 10 - 49 | 115,85 kr |
| 50 - 99 | 106,88 kr |
| 100 - 249 | 98,13 kr |
| 250 + | 81,83 kr |
- RS-artikelnummer:
- 350-276
- Tillv. art.nr:
- 76-9111/439088
- Tillverkare / varumärke:
- ITW Switches
Lagstiftning och ursprungsland
Produktdetaljer
Flush Mount Pushbutton Switches, IP67 Sealed
The 76-91 Flexibutton Series from ITW, have been designed to cover a wide range of demanding environmental applications. Such as:-
• Field equipment
• Dairy
• Mining
• Hydraulic vehicles
• Marine Instrumentation
• Exterior security call points
• Car wash machinery
• Dairy
• Mining
• Hydraulic vehicles
• Marine Instrumentation
• Exterior security call points
• Car wash machinery
Features and Benefits
• Waterproof panel sealed to IP67 – approved to BS5420 (IEC144).
• The body of the flexibutton is flame retardant to UL94-VO.
• Robust construction making them ideal for use in harsh environments.
• Six button colours are available with solder/quick contact terminals as standard.
• Maximum panel thickness 4 mm.
• The body of the flexibutton is flame retardant to UL94-VO.
• Robust construction making them ideal for use in harsh environments.
• Six button colours are available with solder/quick contact terminals as standard.
• Maximum panel thickness 4 mm.
Supplied with
Locknut and sealing washer
This 76-9111/439088 is a momentary, panel mount push button switch.
Features and Benefits
• White indicator colour
• Momentary 1 pole
• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
• Momentary 1 pole
• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 22.5mm |
| Mounting Type | Panel Mount |
| Push Button Colour | White |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Clear |
| IP Rating | IP67 |
| Series | 76-91 |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Material | Fine Silver |
| Case Colour | Stainless Steel |
| Contact DC Voltage Rating | 5V |
| Manufacturer Part No. | 76-9111/439088 |
| Contact AC Voltage Rating | 250V |
| Terminal Type | Solder |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80°C |
