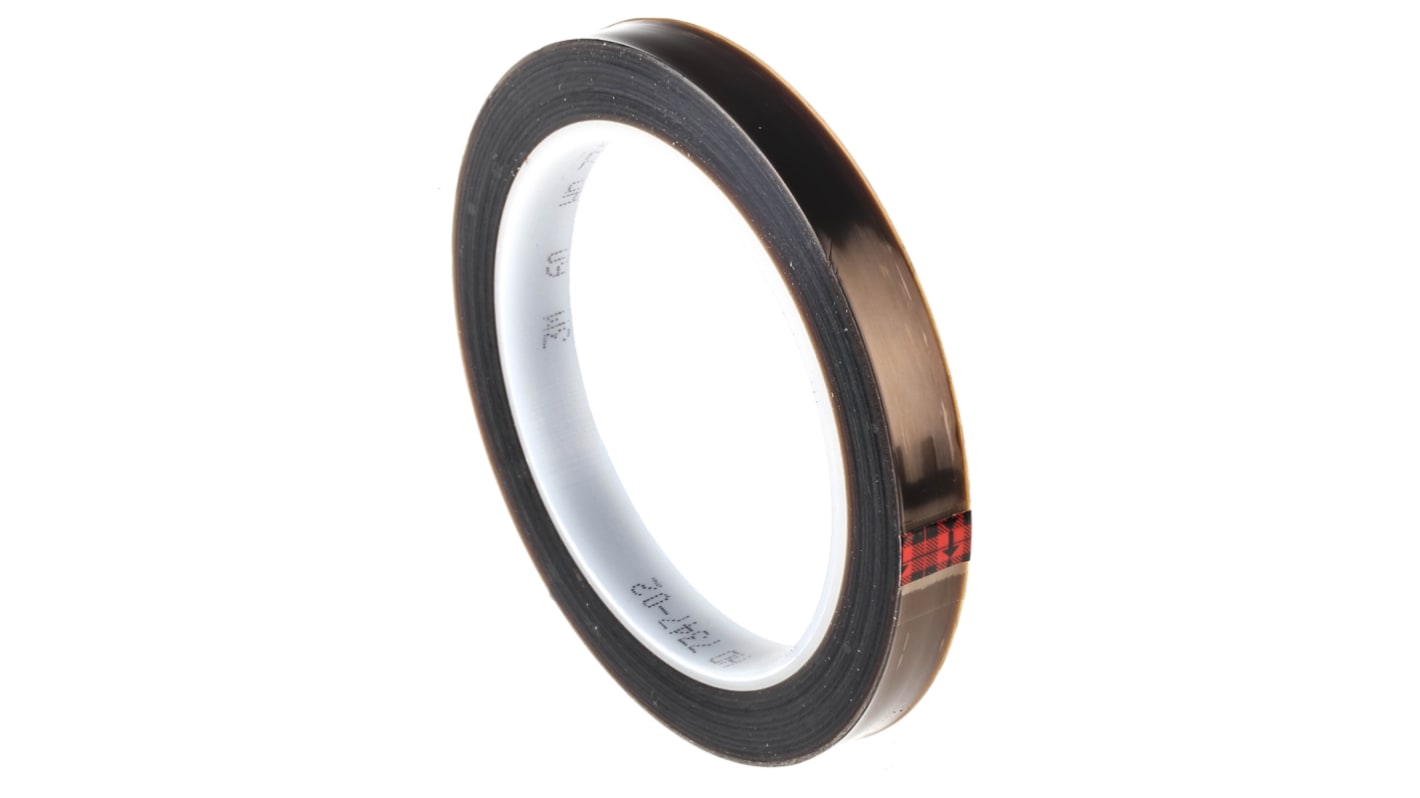

3M 60 Black PTFE Tape 12mm x 33m x 0.10mm

  • RS-artikelnummer 885-5114
  • Tillv. art.nr T6013
  • Tillverkare / varumärke 3M
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

3M™ PTFE Film Electrical Tape 60, Translucent, Silicone Adhesive

Introducing the 3M™ 60, this translucent PTFE film backed electrical tape is suitable for use on high-temperatures with an added feature of being flame retardant. An aggressive rubber resin adhesive enables it to adhere to a broad range of surfaces with exposure to chemicals and high arcs. The 3M 60 tape provides shear strength and surface adhesion, whilst being 600V rated and withstanding temperatures of 0°C to 180°C.

Some of this PTFE’s key material characteristics make it suitable for use on high-temperature coils, wire harnesses and capacitors with high dielectric and breaking strength is required.

Features and Benefits

PTFE Film resistant to chemicals have high arc resistance

Great for non-stick applications

High-temperature use

Flame retardant tape

Aggressive rubber resin adhesive

600V rated

FAQ's

What is the shelf life of this tape?

To obtain the best performance, use this product within 24 months from the date of dispatch from the manufacturer.

Standards

UL 510 Flame retardant

Specifikationer
Attribute Value
Width 12mm
Thickness 0.10mm
Length 33m
Colour Black
Minimum Operating Temperature 0°C
Model Number 60
Maximum Operating Temperature +180°C
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each
728,25 kr
(exkl. moms)
910,31 kr
(inkl. moms)
Enheter
Per unit
1 - 5
728,25 kr
6 - 14
699,12 kr
15 +
684,55 kr
Nästa dag-leverans inte möjlig
