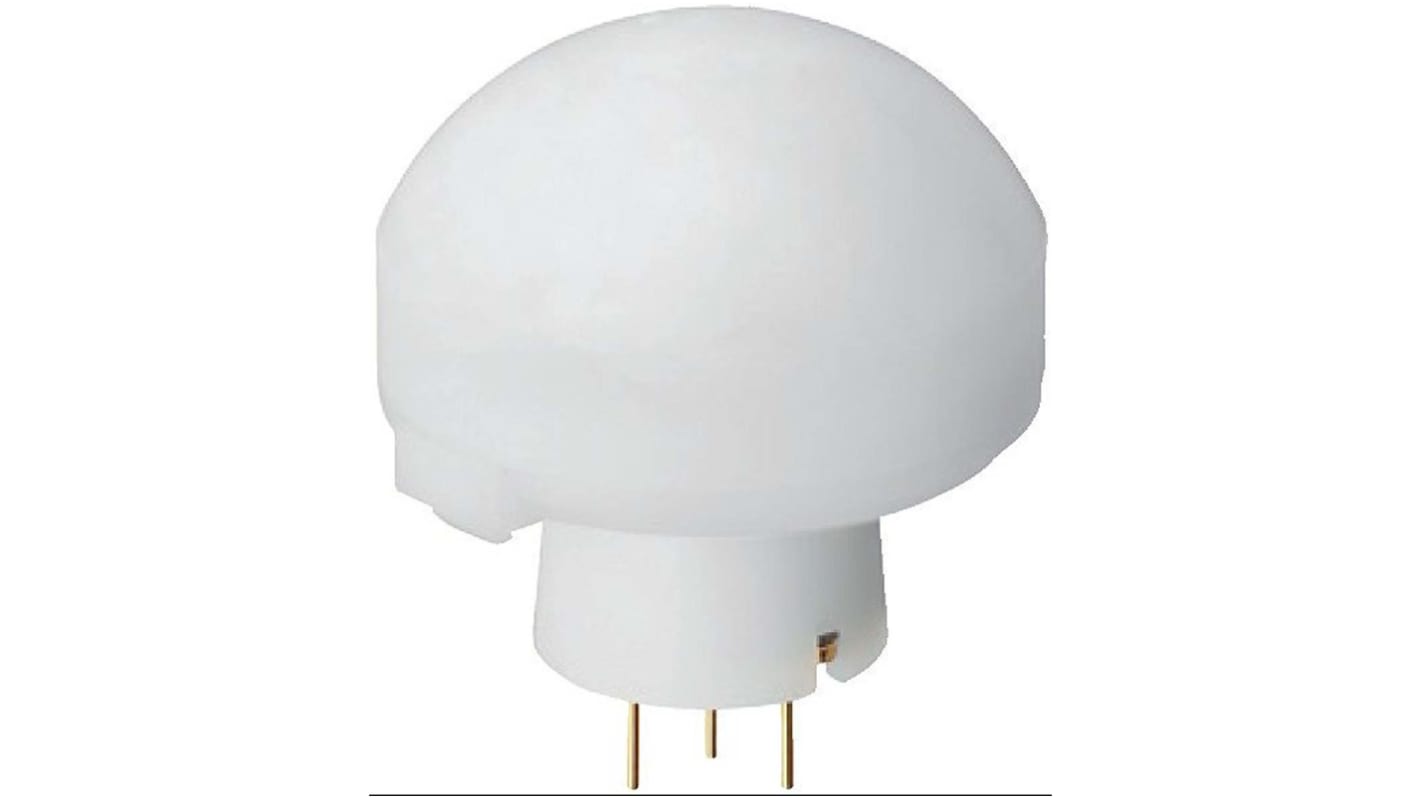

EKMC1603111 Panasonic, EKMC Proximity Sensor Pyroelectric Infrared Sensor, 12m, 3 → 6 V 3-Pin

  • RS-artikelnummer 135-7081
  • Tillv. art.nr EKMC1603111
  • Tillverkare / varumärke Panasonic
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

Motion Detectors

More detailed technical information is available from our web site.

Specifikationer
Attribute Value
Sensor Type Pyroelectric Infrared Sensor
Maximum Output Current 100µA
Maximum Output Voltage 0.5 V
Sensing Distance 12m
Switching Mode Digital
Output Type Digital
Mounting Type Through Hole
Pin Count 3
Maximum Supply Current 170 μA
Dimensions 11 (Base) x 20.2 (H) mm, 22 (Top) mm
Height 20.2mm
Minimum Operating Supply Voltage -0.3 V
Series EKMC
Minimum Operating Temperature -20 °C
Maximum Operating Supply Voltage 7 V
Maximum Operating Temperature +60 °C
Width 11 (Base) mm, 22 (Top) mm
Tillfälligt slut i lager – restorder för leverans 2020-07-13
Pris (ex. moms) Each (In a Box of 50)
88,504 kr
(exkl. moms)
110,63 kr
(inkl. moms)
Enheter
Per unit
Per Box*
50 - 200
88,504 kr
4 425,20 kr
250 - 450
73,813 kr
3 690,65 kr
500 +
71,334 kr
3 566,70 kr
